Запчасти Case IH 130 (32) - FEEDER DECK

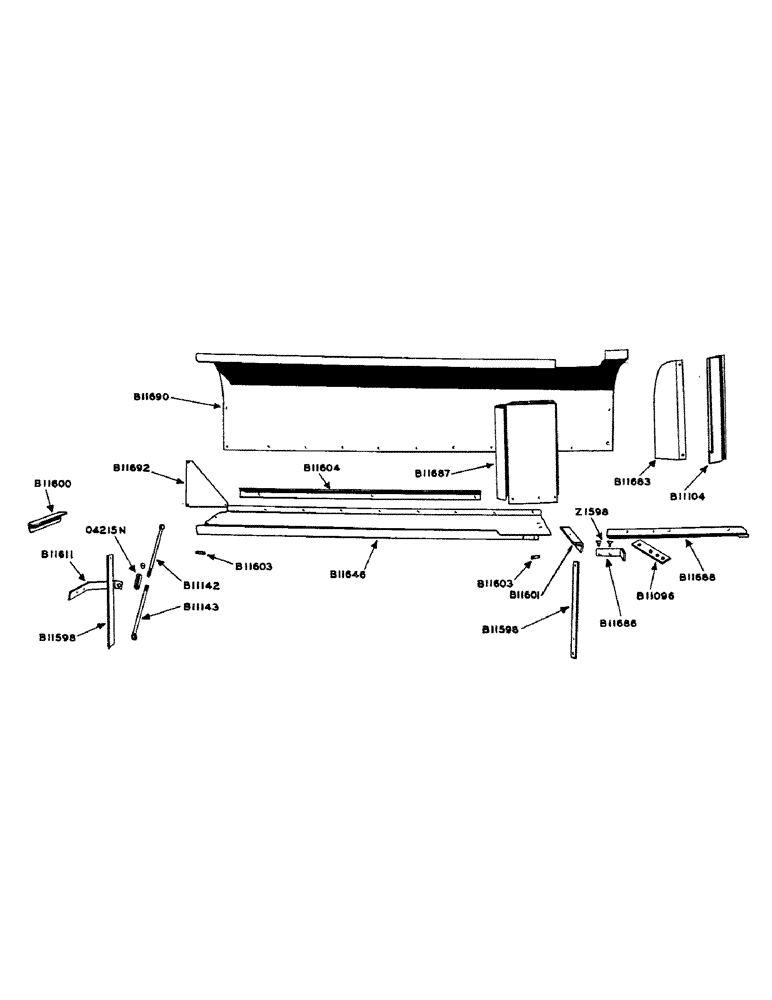

Схема запчастей Case IH 130 - (32) - FEEDER DECK

Артикул

Название

Примечание

Количество

B11096

FILLER - under feeder deck floor

1шт.

B11104

SHEET - filler, feeder deck L.H. end

1шт.

5/16" x 3/4" N.F. hex. hd. cap screw w/hex. nut and lockwasher

3шт.

B11142

BRACE - rear sill, R.H. thread

2шт.

5/8" N.C. hex. jam nut

2шт.

B11143

BRACE - rear sill, L.H. thread

2шт.

B11598

SUPPORT - front sill

2шт.

1/2" x 1-1/4" N.F. hex. hd. cap screw w/hex. nut and lockwasher

3шт.

1/2" x 1-1/2" N.F. hex. hd. cap screw w/hex. nut and lockwasher

1шт.

1/2" x 1-3/4" N.F. hex. hd. cap screw w/hex. nut and lockwasher

2шт.

B11600

SILL - feeder deck, R.H.

1шт.

3/8" x 1-1/4" N.C. carr. bolt w/hex. nut and lockwasher

7шт.

3/8" plain washer

3шт.

B11601

SILL - feeder deck, L.H.

1шт.

1/2" x 1-3/4" N.F. hex. hd. cap screw w/hex. nut and lockwasher

1шт.

B11603

SPACER - feeder sill

2шт.

B11604

ANGLE - twine box support

1шт.

B11611

SUPPORT - twine box, R.H. end

1шт.

B11646

FLOOR - feeder deck

1шт.

3/8" x 1" N.F. hex. hd. cap screw w/hex. nut and lockwasher

10шт.

1/2" x 1-1/2" N.C. flat hd. mach. screw w/hex. nut and lockwasher

1шт.

B11683

PLATE - feeder deck L.H. end

1шт.

3/8" x 1" N.F. hex. hd. cap screw w/hex. nut and lockwasher

2шт.

B11686

BRACKET - feeder deck support, front L.H.

1шт.

B11687

SHEET - feeder front, flare

1шт.

5/16" x 3/4" N.C. rd. hd. mach. screw w/hex. nut and lockwasher

2шт.

B11688

ANGLE - feeder deck front, L.H. end

1шт.

5/16" x 3/4" N.C. rd. hd. mach. screw w/hex. nut and lockwasher

4шт.

3/8" x 1" N.F. hex. hd. cap screw w/hex. nut and lockwasher

2шт.

B11690

SHEET - feeder rear

1шт.

1/4" x 1/2" N.C. carr. bolt w/hex. nut and lockwasher

8шт.

1/4" x 3/4" N.F. hex. hd. cap screw w/hex. nut and lockwasher

8шт.

B11692

GUSSET - feeder deck rear angle

1шт.

B11878

FILLER (Use B11906)

1шт.

O4215N

TURNBUCKLE - rear sill brace

1шт.

Z1598

BOLT - (3/8" x 1-1/2" #3 plow w/hex. nut) B11686 bracket

2шт.

3/8" lockwasher

2шт.

Выбрано товаров: 37
