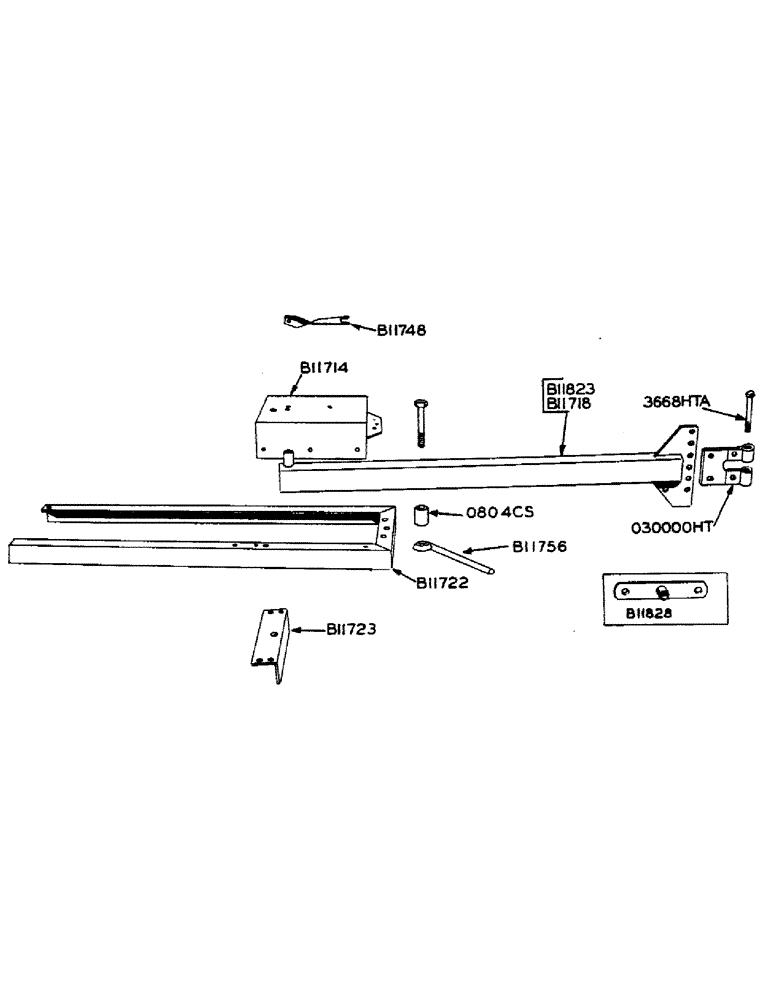

Запчасти Case IH 130 (04A) - DRAWBAR AND ENGINE MOUNTING

B11714

BRACE - engine mount

1шт.

3/8" x 1" N.F. hex. hd. cap screw w/hex. nut and lockwasher

5шт.

1/2" x 1" N.F. hex. hd. cap screw w/hex. nut and lockwasher

2шт.

B11718

DRAW BAR - (Prior to serial #623029) See B11823

1шт.

B11722

FRAME - drawbar

1шт.

1/2" x 1-1/4" N.F. hex. hd. cap screw w/hex. nut and lockwasher

2шт.

1/2" x 1" N.F. hex. hd. cap screw w/hex. nut and lockwasher

3шт.

B11723

ANGLE - drawbar pivot

1шт.

B11748

BRACE - motor

1шт.

B11756

HANDLE - nut

1шт.

3/4" x 6-1/2" N.C. hex. hd. cap screw w/hex. nut and lockwasher

1шт.

B11823

DRAWBAR (Serial #623029 and after) See B11718

1шт.

3/4" x 6-1/2" N.F. hex. hd. cap screw w/hex. nut and lockwasher

1шт.

B11828

EXTENSION - drawbar hitch (For P.T.O. balers only)

1шт.

O804CS

SPACER - drawbar, handle nut

1шт.

O30000HT

COUPLING - drawbar

1шт.

1/2" x 2" N.F. hex. hd. cap screw w/hex. nut and lockwasher

2шт.

3668HTA

BOLT - draw bar (Includes 1-3/4" N.C. hex. nut, 6-3/4" plain washer and 1-3/16" x 1-1/4" cotter pin)

1шт.
