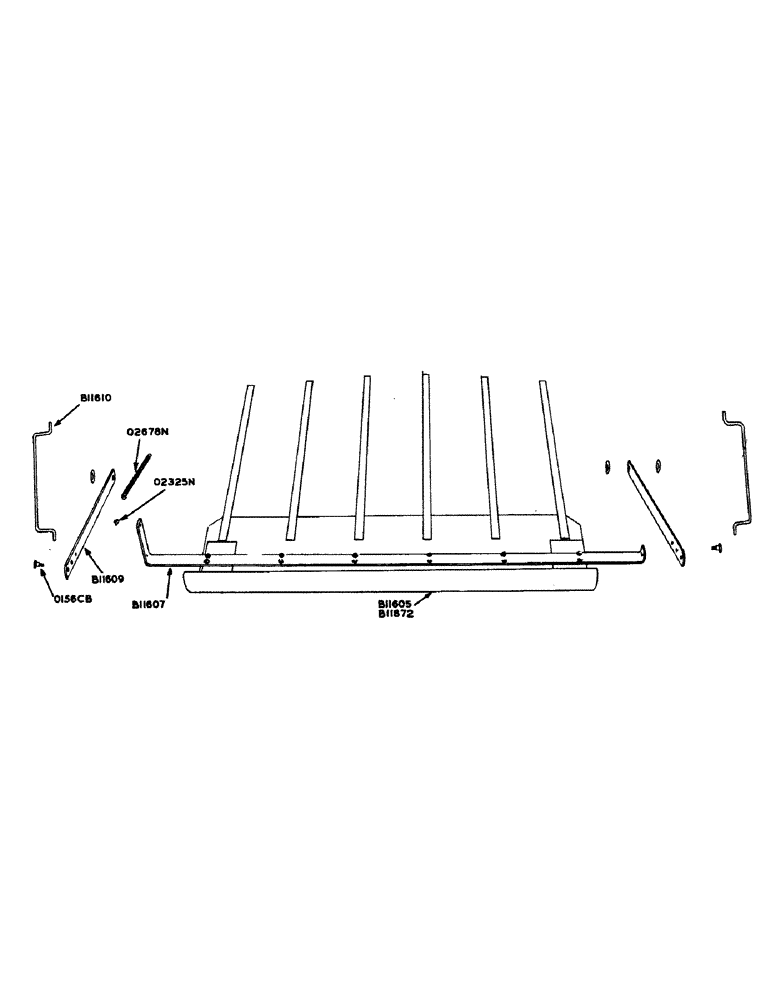

Запчасти Case IH 130 (31) - PICKUP WIND GUARD

B11605

WIND GUARD - pickup (Prior to baler no. 626403) See B11872

1шт.

1/4" x 3/4" N.C. flat hd. mach. screw w/hex. nut and lockwasher

12шт.

B11607

BACK - wind guard (For B11605 wind guard)

1шт.

B11609

ARM - wind guard

2шт.

B11610

GUIDE - pickup wind guard arms

2шт.

5/16" x 3/4" N.C. rd. hd. mach. screw w/hex. nut and lockwasher

4шт.

5/16" plain washer

4шт.

B11872

WIND GUARD - pickup (After baler no. 626403) See B11605

1шт.

O156CB

BOLT - shoulder, wind guard pivot

2шт.

3/8" N.C. hex. nut

2шт.

3/8" plain washer

2шт.

3/8" std. lockwasher

2шт.

O2325N

HOOK - spring

1шт.

5/16" x 3/4" N.C. rd. hd. mach. screw w/hex. nut and lockwasher

1шт.

O2678N

SPRING

- wind guard

1шт.
