Запчасти Case IH 130 (30) - PICKUP RAKE

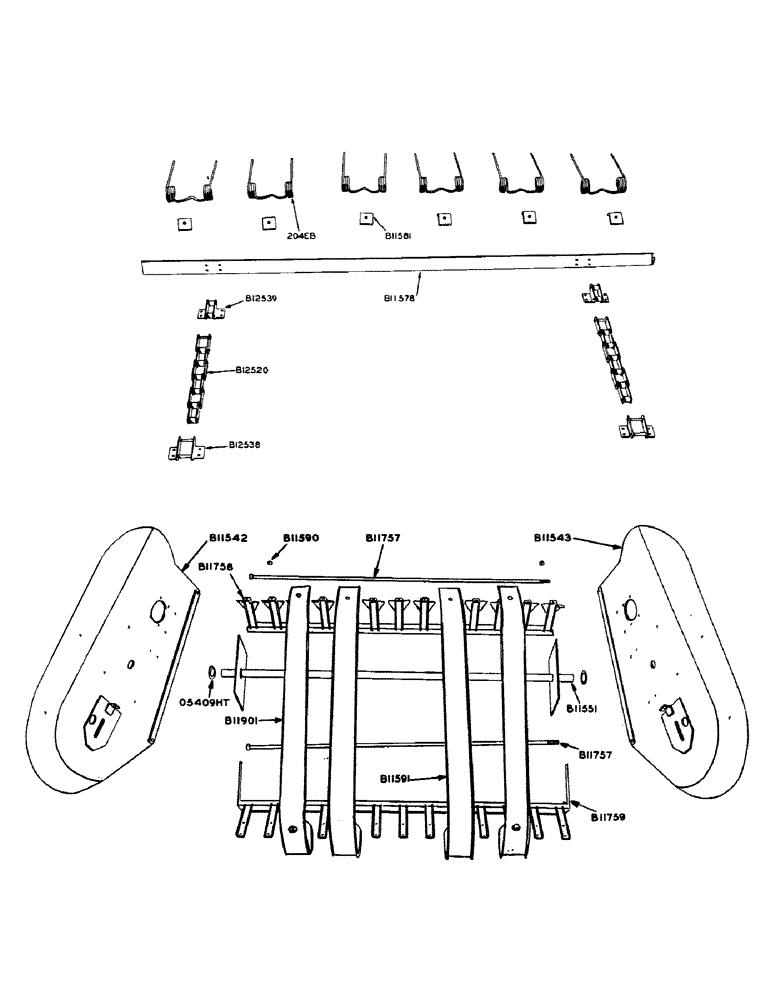

Схема запчастей Case IH 130 - (30) - PICKUP RAKE

Артикул

Название

Примечание

Количество

B11570

CHAIN - rake (Use 7-B12520 chains, 4-B12538 conn. att. links, 3-B12539 roller att. links and 1-B12521 conn. links #C2050)

2шт.

B11578

BAR - tine, less spring teeth and clips

7шт.

3/16" x 1/2" rd. hd. rivet

56шт.

B11581

CLIP - tooth fastening

42шт.

1/4" x 3/4" N.F. hex. hd. cap screw w/hex. nut and lockwasher

42шт.

B12520

CHAIN (AG)

CHAIN - contains 6 links of #C2050 1-1/4" double or extended pitch roller chain

14шт.

B12521

LINK

- connecting, #C2050 1-1/4" double or extended pitch roller chain

1шт.

B12522

LINK

- offset, #C2050 1-1/4" double or extended pitch roller chain

1шт.

B12523

DRAG LINK

LINK - roller, #C2050 1-1/4" double or extended pitch roller chain

1шт.

B12538

LINK - conn. att. #C2050 1-1/4" double or extended pitch roller chain

8шт.

B12539

LINK - roller att. #C2050 1-1/4" double or extended pitch roller chain

6шт.

204EB

TOOTH - spring, tine bar

42шт.

Z1645

RIVET - (3/16" x 1/2" oval hd.) for tine bar to chain att. links (1 lb. pkg.)

1шт.

B11542

SHEET - flare, R.H. PICKUP FLARE SHEETS AND STRIPPERS

1шт.

5/16" x 3/4" N.C. rd. hd. mach. screw w/hex. nut and lockwasher PICKUP FLARE SHEETS AND STRIPPERS

1шт.

B11543

SHEET - flare, L.H. PICKUP FLARE SHEETS AND STRIPPERS

1шт.

5/16" x 3/4" N.C. rd. hd. mach. screw w/hex. nut and lockwasher PICKUP FLARE SHEETS AND STRIPPERS

1шт.

B11551

SPACER - pickup flare sheet PICKUP FLARE SHEETS AND STRIPPERS

1шт.

5/16" x 3/4" N.C. carr. bolt w/hex. nut and lockwasher PICKUP FLARE SHEETS AND STRIPPERS

4шт.

3/16" x 2" cotter pin PICKUP FLARE SHEETS AND STRIPPERS

4шт.

B11590

SPACER - stripper PICKUP FLARE SHEETS AND STRIPPERS

2шт.

B11591

STRIPPER PICKUP FLARE SHEETS AND STRIPPERS

11шт.

5/16" x 1/2" N.C. carr. bolt w/hex. nut and lockwasher PICKUP FLARE SHEETS AND STRIPPERS

39шт.

B11757

BOLT - pickup flare sheet PICKUP FLARE SHEETS AND STRIPPERS

2шт.

5/8" N.C. hex. nut and lockwasher PICKUP FLARE SHEETS AND STRIPPERS

2шт.

B11758

BRACKET - stripper, upper PICKUP FLARE SHEETS AND STRIPPERS

1шт.

B11759

BRACKET - stripper, lower PICKUP FLARE SHEETS AND STRIPPERS

1шт.

B11901

STRIPPER - (with hole for lubrication) PICKUP FLARE SHEETS AND STRIPPERS

2шт.

O5409HT

WASHER - (2-1/4" O.D. x 1-11/32" I.D. #14 ga.) flare sheet spacer PICKUP FLARE SHEETS AND STRIPPERS

2шт.

Выбрано товаров: 29
