Запчасти Case IH 130 (29) - PICKUP UPPER SHAFT

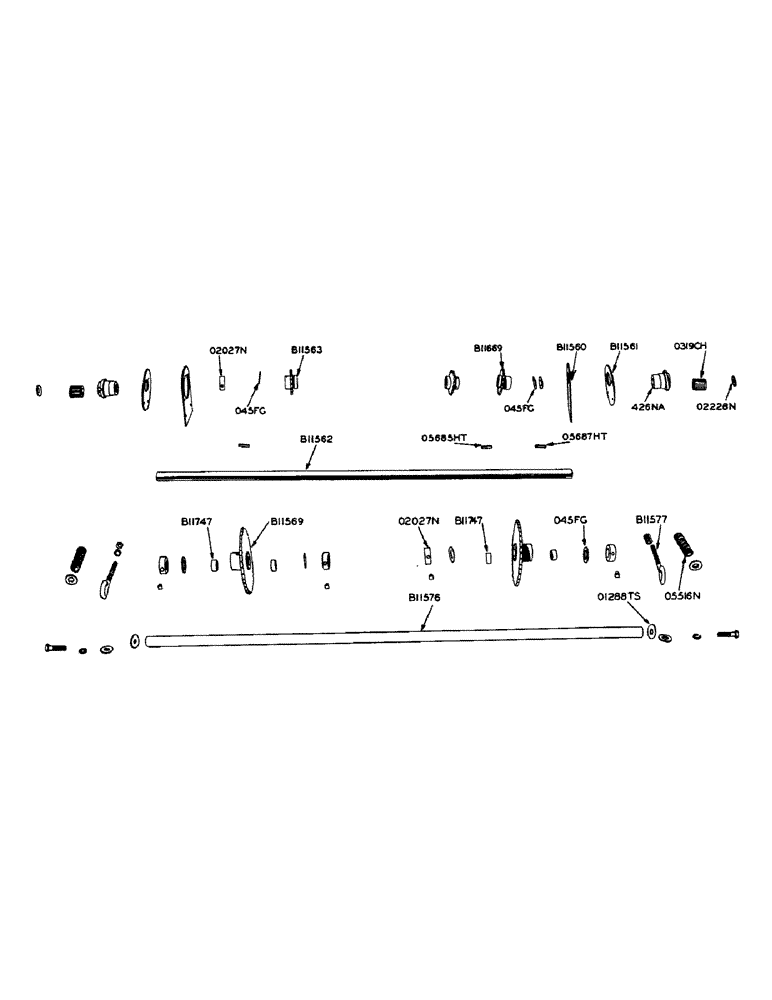

Схема запчастей Case IH 130 - (29) - PICKUP UPPER SHAFT

Артикул

Название

Примечание

Количество

B11560

PLATE - bearing, upper pickup shaft

2шт.

3/8" x 1" N.C. carr. bolt w/hex. nut and lockwasher

8шт.

B11561

WASHER - bearing

2шт.

B11562

SHAFT - upper, pickup

1шт.

B11563

SPROCKET - (17T) rake drive, upper shaft

2шт.

5/16" x 3/4" N.C. sq. hd. C.P. set screw

4шт.

B11669

SPROCKET - (19T) drive, pickup upper shaft

1шт.

3/8" x 3/4" N.C. sq. hd. C.P. set screw

2шт.

B12505

LINK

- connecting #50 roller chain

1шт.

B12506

LINK

- offset, #50 roller chain

1шт.

B12507

CHAIN (AG)

LINK - roller, #50 roller chain

1шт.

B12508

CLIP

S - lock spring, for #50 roller chain (Package of 25)

1шт.

8CH

MAKING-UP

Use 426NA

1шт.

O319CH

BEARING - (Hyatt #94632) upper shaft (See 426NA)

2шт.

O45FG

WASHER - (1-7/8" O.D. x 1-9/64" I.D. #16 ga.) B11562 upper shaft

3шт.

O5685HT

KEY - rake drive sprocket

2шт.

O5687HT

KEY - drive sprocket, pickup upper shaft

1шт.

O9128HT

CHAIN - pickup rake drive (Use 1-B12474 chain, 1-B12475 chain, 1-B12477 chain and 2-B12506 offset links #50 roller chain)

1шт.

O2027N

COLLAR - upper pickup shaft

1шт.

1/2" x 1/2" N.C. sq. hd. C.P. set screw

1шт.

O2228N

PLUG - O319CH bearing (See 426NA)

2шт.

426NA

BEARING - upper shaft, with housing (Includes 1-O2228N plug and 1-O319CH bearing)

2шт.

3/8" x 3/4" N.F. hex. hd. cap screw w/dbl. hex. jam nut

2шт.

B11569

SPROCKET - (36T) rake, lower shaft w/B11747 bushings PICKUP LOWER SHAFT

2шт.

1/8" str. Lincoln fitting #5000 PICKUP LOWER SHAFT

2шт.

B11576

SHAFT - lower pickup PICKUP LOWER SHAFT

1шт.

1/2" x 2" N.F. hex. hd. cap screw w/lockwasher PICKUP LOWER SHAFT

2шт.

1/2" plain washer PICKUP LOWER SHAFT

2шт.

B11577

EYEBOLT - lower pickup shaft PICKUP LOWER SHAFT

2шт.

1/2" N.C. hex. jam nut PICKUP LOWER SHAFT

4шт.

1/2" plain washer PICKUP LOWER SHAFT

2шт.

B11747

BUSHING - B11569 sprockets PICKUP LOWER SHAFT

4шт.

O2027N

COLLAR - pickup lower shaft

4шт.

1/2" x 1/2" N.C. sq. hd. C.P. set screw PICKUP LOWER SHAFT

4шт.

O5516N

SPRING - pickup lower shaft eyebolt PICKUP LOWER SHAFT

2шт.

O1288TS

WASHER - (2" O.D. x 9/16" I.D. #10 ga.) between B11576 shaft and flare sheets PICKUP LOWER SHAFT

2шт.

Выбрано товаров: 36
