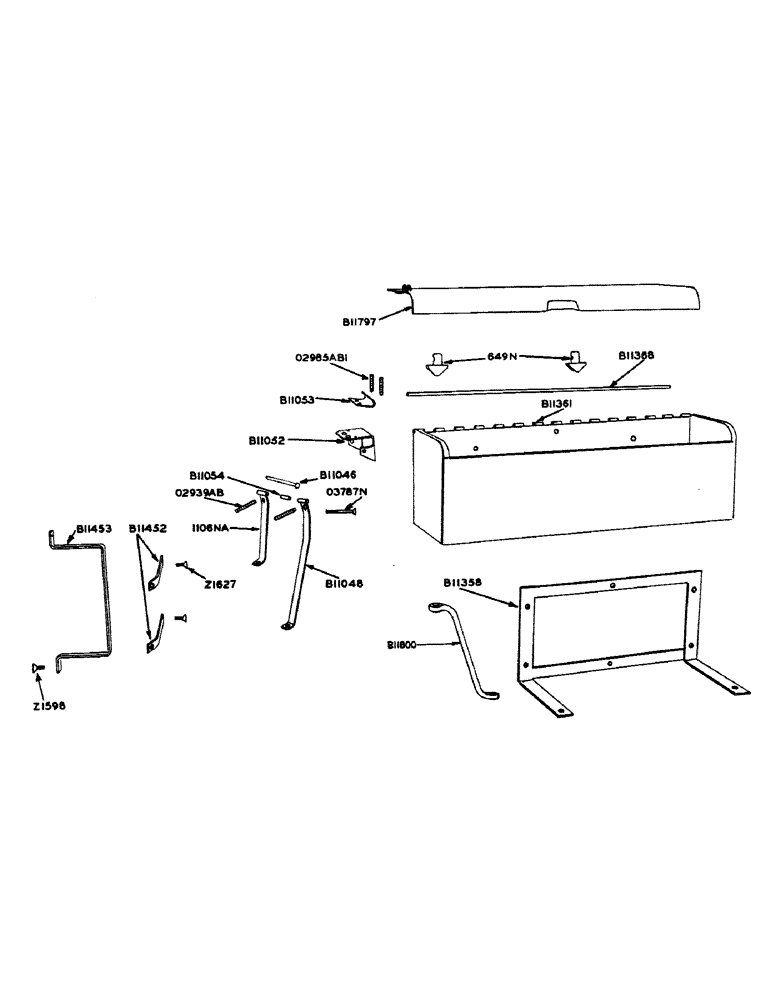

Запчасти Case IH 130 (27) - TWINE BOX

B11046

PIN - take up arm hinge

1шт.

1/8" x 3/4" cotter pin

1шт.

B11048

ARM - twine take up, long

1шт.

B11052

BRACKET - twine take up

1шт.

1/4" x 2" N.C. rhd. mach. screw w/hex. nut

2шт.

1/4" plain washer

2шт.

B11053

PLATE - twine tension

1шт.

B11054

SPACER - twine take up arm

1шт.

B11358

CRADLE - mounting, for twine box

1шт.

1/2" x 1" N.F. hex. hd. cap screw w/hex. nut and lockwasher

5шт.

B11361

BOX - twine

1шт.

1/2" x 1-1/4" N.F. hex. hd. cap screw w/hex. nut and lockwasher

3шт.

B11368

ROD - hinge, twine box cover

1шт.

B11452

GUIDE - twine

2шт.

B11453

BRACKET - twine guide

1шт.

B11797

LID - twine box

1шт.

B11800

SUPPORT - twine box

1шт.

649N

GUIDE - twine

2шт.

5/16" x 5/8" N.C. rd. hd. mach. screw w/lockwasher

4шт.

5/16" plain washer

4шт.

O2939AB

SPRING - tension, take up arm

2шт.

O2985AB1

SPRING

- tension, twine tension plate

2шт.

O3787N

BOLT - take up arm tension spring

2шт.

1/2" N.F. hex. nut

2шт.

Z1598

BOLT - (3/8" x 1-1/2" #3 plow w/hex. nut) B11453 bracket

1шт.

3/8" lockwasher

1шт.

Z1627

BOLT - (3/8" x 1" #3 plow bolt w/hex. nut) B11452 guide

2шт.

3/8" lockwasher

2шт.

1106NA

ARM - twine take up, short

1шт.
