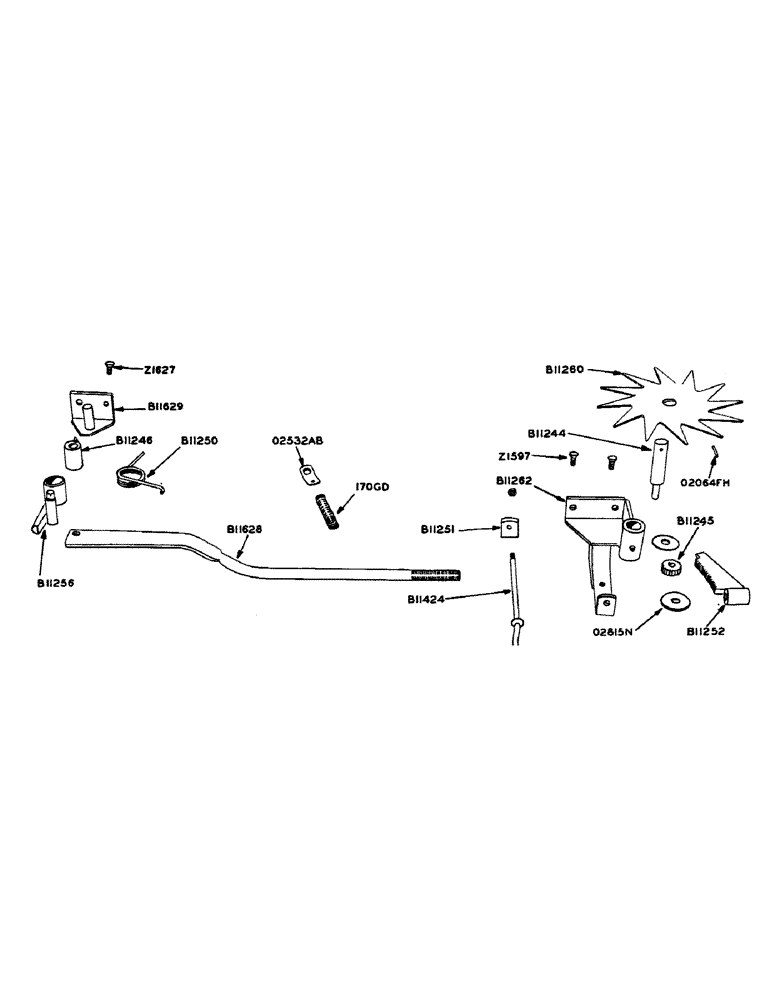

Запчасти Case IH 130 (26) - STAR WHEEL

B11244

SHAFT - star wheel

1шт.

1/2" N.F. hex. nut

1шт.

1/2" plain washer

1шт.

B11245

GEAR - (20T) bale length

1шт.

#3 Woodruff key

1шт.

B11246

BUSHING - eccentric, latch pin

1шт.

1/4" 28 thrd. str. Lincoln fitting #5010

1шт.

1/8" x 1-1/2" cotter pin

1шт.

B11250

SPRING - tension, latch pin

1шт.

B11251

NUT - gauge

1шт.

B11252

RACK - trip head for bale length

1шт.

B11256

LATCH pin

1шт.

3/32" x 1" cotter pin

1шт.

B11260

WHEEL - star

1шт.

B11262

BEARING - star wheel

1шт.

1/4" 28 thrd. Lincoln fitting #5010

1шт.

B11424

CRANK - bale length adjusting

1шт.

3/8" N.C. hex. nut

1шт.

3/32" x 3/4" cotter pin

1шт.

5/16" plain washer

1шт.

B11628

ROD - bale length

1шт.

3/4" N.F. hex. nut

1шт.

3/16" x 1-1/4" cotter pin

1шт.

B11629

BRACKET - pivot, latch pin

1шт.

O2532AB

CLIP - bale length rod tension spring

1шт.

170GD

SPRING - tension, bale length rod

1шт.

O2064FH

X

ROLL PIN - (3/16" x 1-1/2") star wheel

1шт.

O2815N

WASHER

- (2" O.D. x 17/32" I.D. #11 ga.)

2шт.

Z1597

X

BOLT - (3/8" x 1-1/4" #3 plow w/hex. nut) B11262 bearing

2шт.

3/8" lockwasher

2шт.

Z1627

BOLT - (3/8" x 1" #3 plow w/hex. nut) B11629 bracket

2шт.

3/8" lockwasher

2шт.
