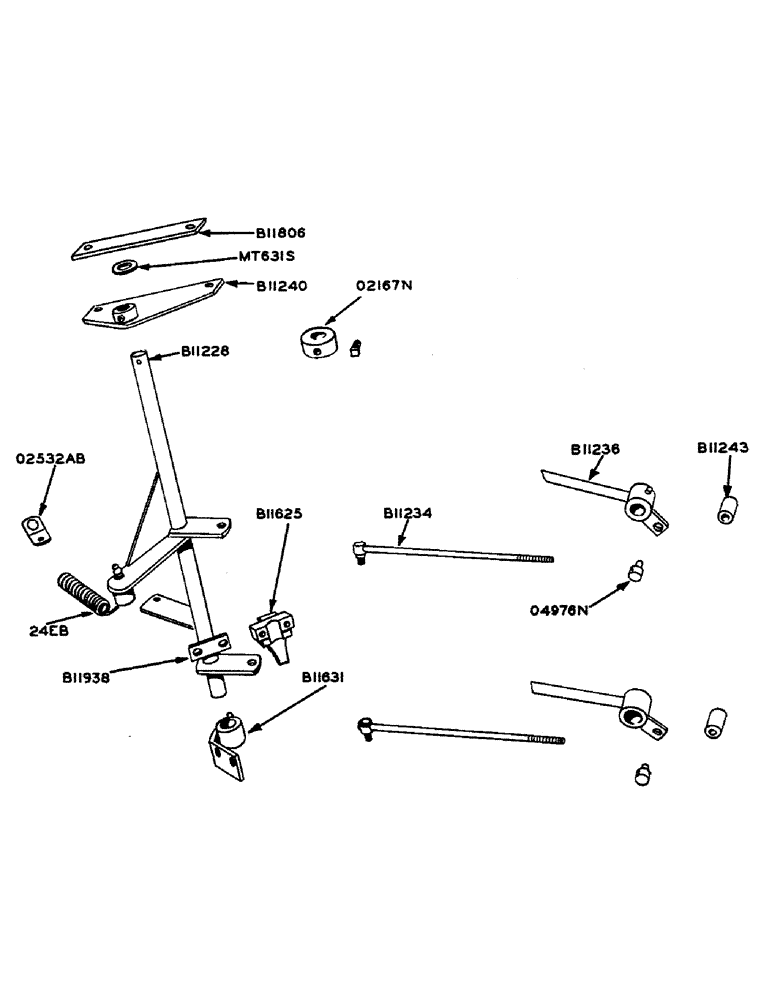

Запчасти Case IH 130 (24) - COUNTERSHAFT AND TUCKER FINGERS

B11228

BELLCRANK AND COUNTERSHAFT - tucker finger (Does not includes B11938 clamp)

1шт.

1/4" 28 thrd. Lincoln fitting #5010

1шт.

3/16" x 1-1/4" cotter pin

1шт.

B11234

LINK - tucker finger

2шт.

3/32 x 3/4" cotter pin

2шт.

B11236

TUCKER FINGER ASSEMBLY

2шт.

1/4" 28 thrd. str. Lincoln fitting #5010

2шт.

B12240

BEARING - upper, countershft

1шт.

1/4" 28 thrd. Lincoln fitting #5010

1шт.

3/8" x 1-1/4" N.F. hex. hd. cap screw w/hex. nut and lockwasher

2шт.

B11243

PIVOT - tucker finger, sleeve

2шт.

3/8" x 2-1/4" N.C. carr. bolt w/hex. nut and lockwasher

2шт.

3/8" plain washer

2шт.

B11272

CLAMP - for B11625 latch (Use B11938)

1шт.

B11625

LATCH - bale measuring rack return

1шт.

3/8" x 1-3/4" N.F. hex. hd. cap screw w/hex. nut and lockwasher

2шт.

B11631

BEARING - lower, countershaft

1шт.

B11806

SHIM - B11240 upper countershaft bearing (As required)

1шт.

B11938

CLAMP - for B11625 latch (Must be positioned and welded in place)

1шт.

O2532AB

CLIP - tucker finger shaft spring

1шт.

24EB

SPRING - tucker finger shaft

1шт.

MT631S

WASHER - (1-1/4" O.D. x 25/32" I.D. #12 ga.) countershaft

2шт.

O2167N

COLLAR - countershaft, top

1шт.

3/8" x 3/4" N.C. sq. hd. C.P. set screw

1шт.

O4976N

SWIVEL - tucker finger link

2шт.

1/8" x 3/4" cotter pin

2шт.
