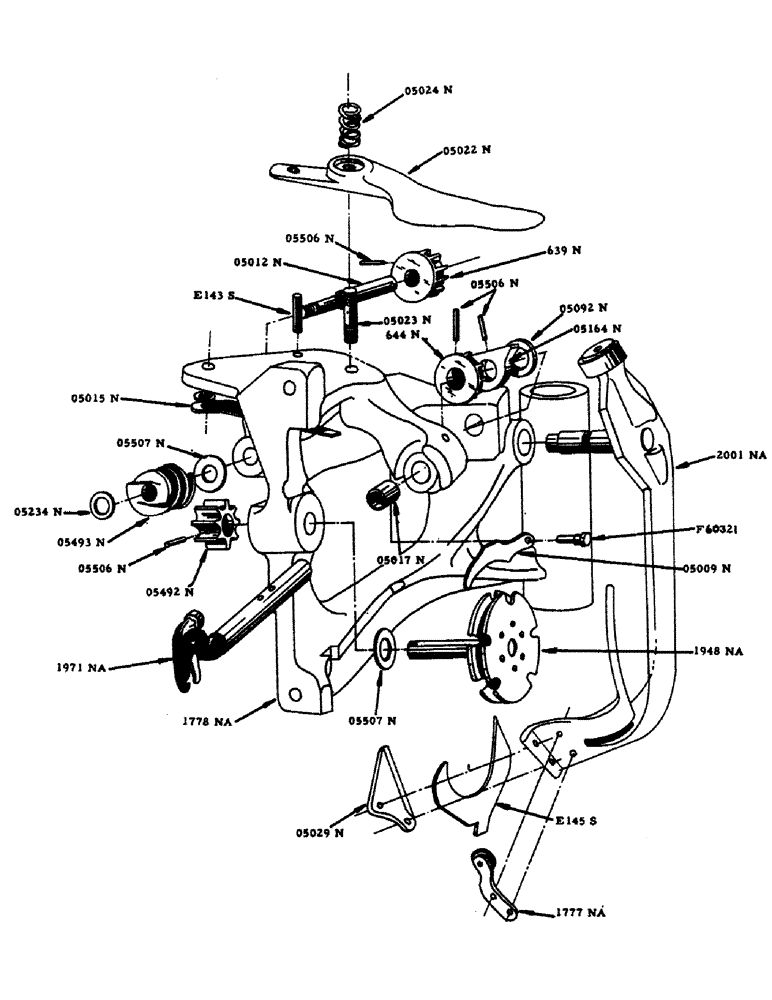

Запчасти Case IH 130 (22) - KNOTTER ASSEMBLY

F60321

X

STUD - twine holder

2шт.

637N

FRAME (Use 1778NA)

1шт.

639N

PINION - worm shaft

2шт.

644N

PROMOTIONAL BAG

PINION - for knotter

2шт.

E143S

STUD - cam

2шт.

E145S

X

CLEANER - twine disc

2шт.

O5009N

HOLDER - twine

2шт.

O5012N

SHAFT - worm, twine tension

2шт.

3/8" N.F. hex. nut

2шт.

O5015N

X

SPRING - twine holder

4шт.

3/8" x 1-1/2" N.C. hex. hd. cap screw w/nut

2шт.

O5017N

BEARING - knotter hook

2шт.

O5022N

X

CAM - knotter tongue roller

2шт.

O5023N

STUD - O5022N cam

2шт.

O5024N

SPRING

- O5022N cam

2шт.

O5029N

KNIFE

- twine

2шт.

1/4" x 3/8" N.F. rd. hd. mach. screw

4шт.

1/4" external tooth washer

4шт.

O5030N

WASHER - (7/8" O.D x 7/16" I.D.) knife arm shaft

2шт.

O5031N

WASHER - (3/4" O.D. x 7/16" I.D. #24 ga.) knife arm shaft

2шт.

O5092N

WASHER

- (13/16" O.D. x 19/32" I.D. #18 ga.) knotter pinion

1шт.

O5164N

GUIDE

- knotter pinion

2шт.

O5234N

WASHER - (13/16" O.D. x 19/32" I.D. #22 ga.) O5493N worm

1шт.

O5234N

WASHER - (13/16" O.D. x 19/32" I.D. #22 ga.) O5493N worm

1шт.

O5492N

X

GEAR - (10T) twine tension disc

2шт.

O5493N

WORM

- twine disc drive

2шт.

O5506N

PIN

- (1/4" x 7/8") knotter

8шт.

O5507N

WASHER

- (1-1/8" O.D. x 39/64" I.D. #18 ga.) worm shaft and twine disc

1шт.

1777NA

ARM

- stripper, with pad and 3/16" x 3/8" ctsk. hd. rivets

2шт.

1/4" external tooth lockwasher

4шт.

1778NA

FRAME - knotter, with O5017N bushing

2шт.

1/4" 28 thrd. Lincoln fitting #5010

12шт.

1948NA

DISC - twine

2шт.

3/16" x 5/8" ctsk. hd. rivet

12шт.

1971NA

X

HOOK - knotter

2шт.

2000NA

KNOTTER - complete

2шт.

2001NA

ARM - twine stripper, less knife

2шт.
