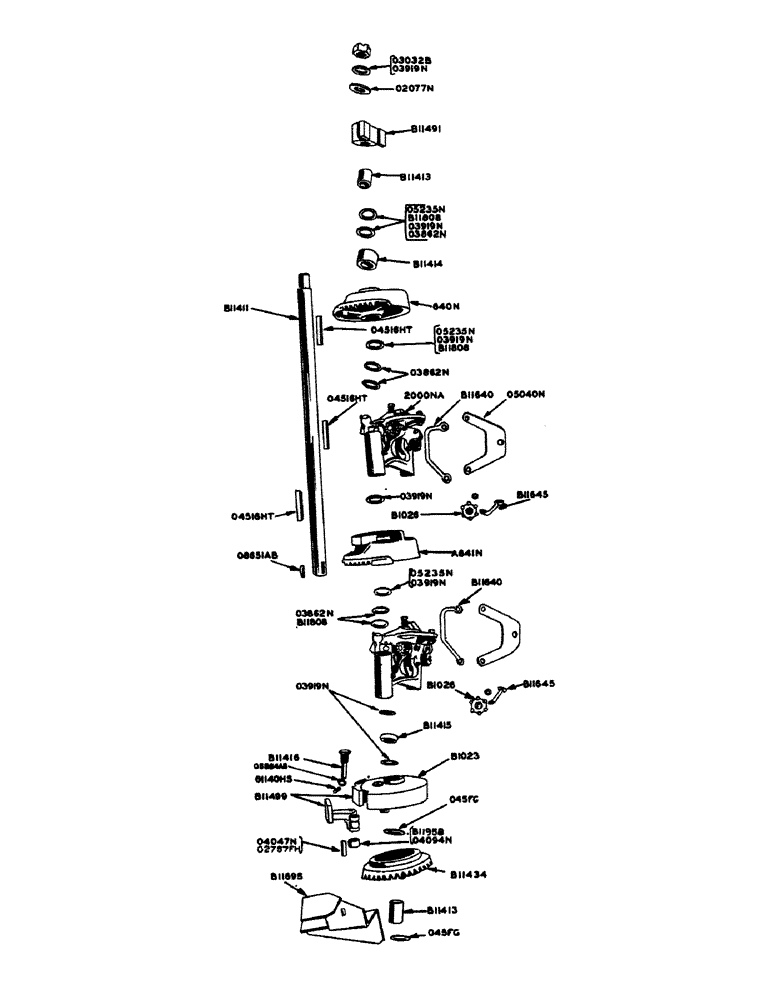

Запчасти Case IH 130 (20) - TYER CLUTCH AND KNOTTER SHAFT

B1021

WASHER

BEARING (Use B11491)

1шт.

B1022

GEAR (Use B11434)

1шт.

B1023

COVER - clutch (Does not include B11499)

1шт.

B1024

DOG (Use B11499)

1шт.

B11409

PINION - (14T) bevel, knotter cross shaft

1шт.

5/16" x 2-1/4" N.F. hex. hd. cap screw w/hex nut and lockwasher

1шт.

3/8" x 3/8" N.F. Allen hd. C.P. set screw

1шт.

B11411

SHAFT - vertical

1шт.

1" N.C. hex. slotted nut

1шт.

B11413

BUSHING - clutch ring and knotter shaft top bearing

2шт.

B11414

SPACER - vertical shaft, upper

1шт.

B11415

SPACER - vertical shaft, lower

1шт.

B11416

PIN - pivot, clutch dog

1шт.

5/8" lockwasher

1шт.

B11434

GEAR - (35T) clutch w/B11413 bushing

1шт.

1/4" 28 thrd. Lincoln fitting #5010

1шт.

B11491

BEARING - top, knotter shft w/B11413 bushing

1шт.

1/8" 90 degree Lincoln fitting #5400

1шт.

1/2" x 1-1/2" N.F. hex. hd. cap screw w/hex nut and lockwasher

2шт.

B11499

DOG - clutch, with roller and pin

1шт.

B11695

GUARD - knotter gear

1шт.

B11808

WASHER - (1-3/4" O.D. x 1-5/32" I.D #32 ga.) vertical shaft

1шт.

B11958

ROLLER - clutch dog, used with O2757 FH roll pin

1шт.

O5884AB

WASHER - (17/32"I.D. x 3/4" O.D. #16 ga.) for B11416 pivot pin

1шт.

O8651AB

X

KEY - Woodruff for B1036 needle Pitman arm

1шт.

O3032B

X

WASHER - (1-5/8" O.D. x 1-1/32" I.D. #16 ga.) - knotter shaft (As required)

5шт.

O45FG

WASHER - (1-7/8" O.D. x 1-9/64" I.D. #16 ga.) between lower bearing and B11434 gear, and 1-between B11434 and B1023 clutch cover

2шт.

O2757FH

X

ROLL PIN - (3/8" x 1-3/8") for B11958 clutch dog roller

1шт.

O1140HS

SPRING

- clutch dog

1шт.

O4516HT

KEY - tyer wheel and clutch, Serial Range: cover-shaft

3шт.

O2077N

WASHER - (2" O.D. x 1-1/64" I.D.) vertical shaft, top.

1шт.

O3862N

WASHER - (1-3/4" O.D. x 1-5/32" I.D. #19 ga.) vertical shaft

1шт.

O3919N

X

WASHER - (1-3/4" O.D. x 1-5/32" I.D. #16 ga.) vertical shaft

1шт.

O4047N

PIN - (3/8" x 1-7/16") for O4094N clutch dog roller

1шт.

O4094N

ROLLER - clutch dog, used with O4047N pin

1шт.

O5235N

WASHER - (1-3/4" O.D. x 1-5/32" I.D. #28 ga.) vertical shaft

1шт.

B1026

NUT - hand, knotter post anchor KNOTTER

2шт.

B11640

BAR - relief, twine tension KNOTTER

2шт.

B11645

BOLT - knotter holder KNOTTER

2шт.

3/8" N.C. hex. jam nut KNOTTER

4шт.

640N

WHEEL - upper, tyer KNOTTER

1шт.

7/16" x 3/4" N.C. C.P. Allen hd. set screw KNOTTER

2шт.

3/16" x 2" cotter pin KNOTTER

1шт.

A641N

WHEEL - lower, tyer KNOTTER

1шт.

O3862N

WASHER - (1-3/4" O.D. x 1-5/32" I.D. #19 ga.) vertical shaft KNOTTER

1шт.

O3919N

X

WASHER - (1-3/4" O.D. x 1-5/32" I.D. #16 ga.) vertical shaft KNOTTER

1шт.

O5040N

HOLDER - knotter KNOTTER

2шт.

2000NA

KNOTTER - complete KNOTTER

2шт.
