Запчасти Case IH 130 (18) - BALE LOADER AND WAGON HITCH ATTACHMENT

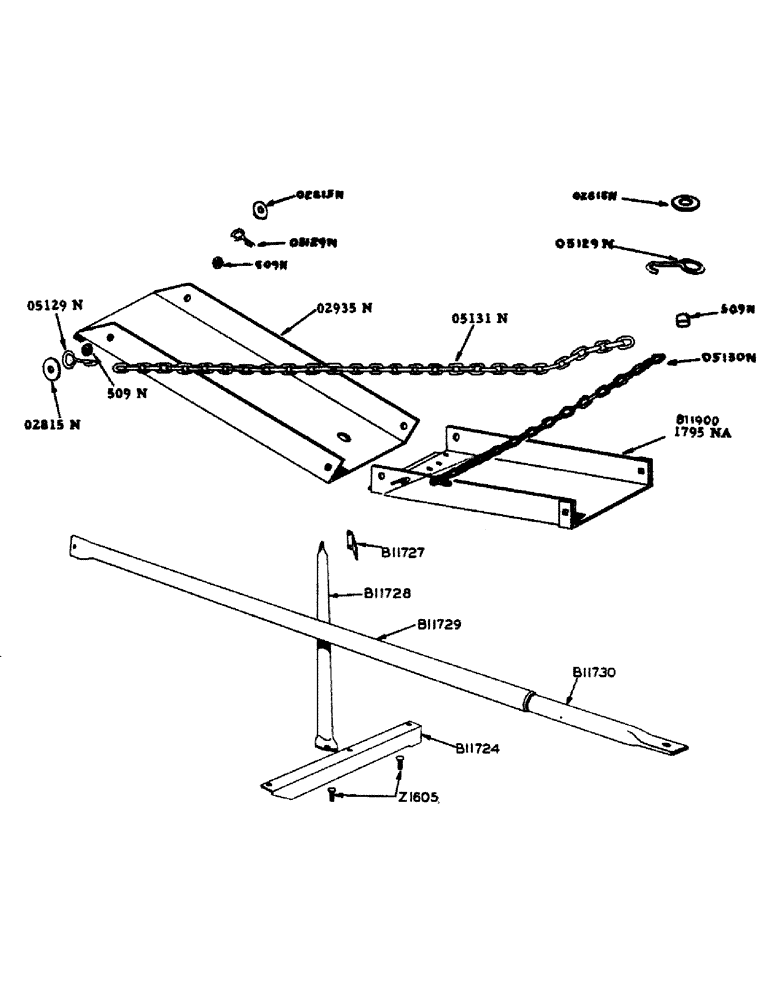

Схема запчастей Case IH 130 - (18) - BALE LOADER AND WAGON HITCH ATTACHMENT

Артикул

Название

Примечание

Количество

B11724

ANGLE - wagon hitch support

1шт.

B11727

BRACKET - rear axle brace

1шт.

1/2" x 1-1/4" N.F. hex. hd. cap screw w/hex. nut and lockwasher

4шт.

B11728

BRACE - rear axle

1шт.

B11729

PIPE - wagon hitch

1шт.

1/2" x 1-1/2" N.F. hex. hd. cap screw w/hex. nut and lockwasher

1шт.

1/2" x 5-1/4" N.F. hex. hd. cap screw w/hex. nut and lockwasher

1шт.

B11730

PIPE - inner, wagon hitch

1шт.

B11900

SHEET - extension (Serial #633201 and after) See 1795NA

1шт.

509N

SPACER - (1-1/4" rd. x 5/8") bale loader chute

3шт.

O2815N

WASHER

- (2" O.D. x 17/32" I.D. #11 ga.) chute hook

3шт.

O2935N

SHEET - bale loader inclined

1шт.

O5129N

HOOK - bale loader chute chain

3шт.

O5130N

CHAIN - bale chute

1шт.

O5131N

CHAIN (AG)

CHAIN - loader chute support

2шт.

Z1605

BOLT - (1/2" x 1-1/4" #3 plow w/hex. nut) B11724 angle

2шт.

1/2" lockwasher

2шт.

1795NA

SHEET - extension (Prior to serial #633201) See B11900

1шт.
