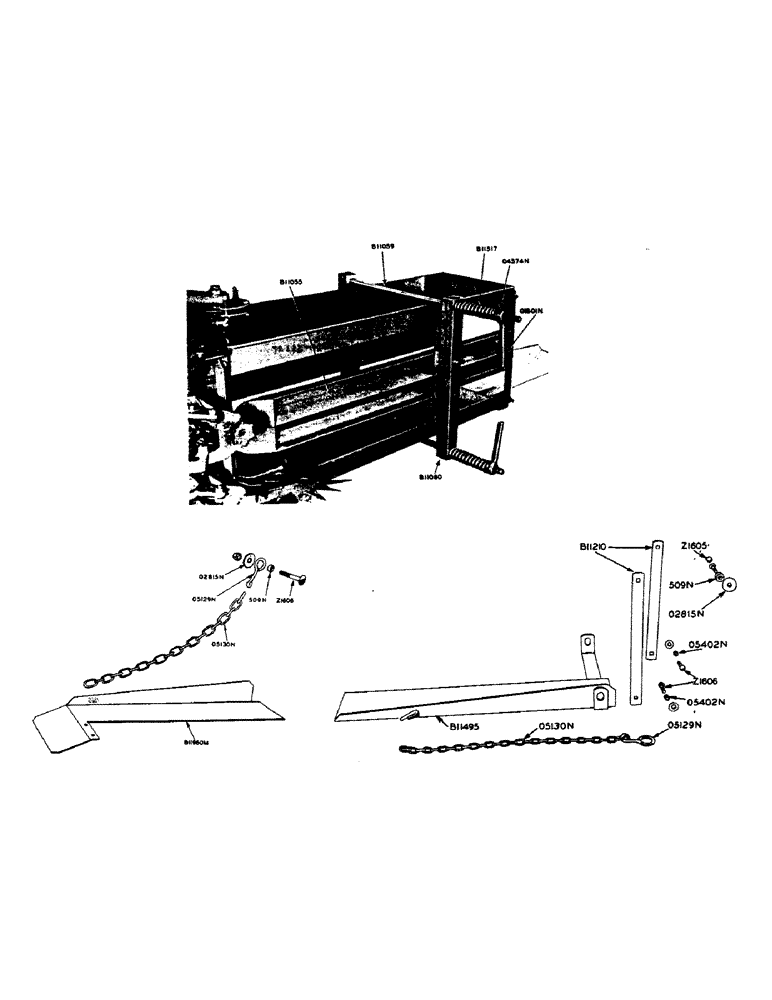

Запчасти Case IH 130 (17) - BALE TENSION

B11055

SHEET - side tension

2шт.

3/8" x 5-1/4" N.C. carr. bolt w/hex. nut and lockwasher

4шт.

B11059

SPRING

BOLT - (3/4" x 32") bale tension

2шт.

B11060

CHANNEL - tension

2шт.

B11061

CHANNEL - tension, L.H. (Not used)

1шт.

B11517

SPRING - tension

2шт.

B11756

HANDLE - tension (Not used on bale tension)

1шт.

O5850HT

SPACER - side tension, R.H.

1шт.

O5893HT

X

SPACER - side tension, L.H.

1шт.

O4574N

BEARING - (Timken #T76W) tension

2шт.

O1801N

HANDLE - tension

2шт.

Z1597

X

BOLT - (3/8" x 1-1/4" #3 plow w/hex. nut) for B11055 R.H. side

1шт.

3/8" lockwasher

1шт.

Z1598

BOLT - (3/8" x 1-1/2" #3 plow w/hex. nut) for B11055 L.H. side

1шт.

3/8" lockwasher

1шт.

B11960M

CHUTE - bale (Machy. item) BALE CHUTE

1шт.

509N

SPACER - (1-1/4" rd. x 5/8") chain hook BALE CHUTE

1шт.

O2815N

WASHER

- (2" O.D. x 17/32" I.D. #11 ga.) chain hook BALE CHUTE

1шт.

O5129N

HOOK - bale chute chain BALE CHUTE

1шт.

O5130N

CHAIN - bale chute

1шт.

Z1606

BOLT - (1/2" x 1-3/4" #3 plow w/hex. nut) chain hook BALE CHUTE

1шт.

1/2" lockwasher BALE CHUTE

1шт.

B11210

STRAP - rear vertical tie BALE DIVIDER

2шт.

1/2" x 2" #3 plow w/hex. nut and lockwasher BALE DIVIDER

1шт.

B11495

DIVERTER - bale BALE DIVIDER

1шт.

509N

SPACER - (1-1/4" rd. x 5/8") chain hook BALE DIVIDER

1шт.

O2815N

WASHER

- (2" O.D. x 17/32" I.D. #11 ga.) chain hook BALE DIVIDER

1шт.

O5129N

HOOK - bale diverter chain BALE DIVIDER

1шт.

O5130N

CHAIN - bale diverter BALE DIVIDER

1шт.

O5402N

SPACER - (3/4" rd. x 7/16") bale diverter BALE DIVIDER

2шт.

Z1605

BOLT - (1/2" x 1-1/4" #3 plow w/hex. nut) B11210 strap BALE DIVIDER

1шт.

1/2" lockwasher BALE DIVIDER

1шт.

Z1606

BOLT - 1/2" x 1-3/4" #3 plow w/hex. nut) B11495 diverter BALE DIVIDER

2шт.

1/2" lockwasher BALE DIVIDER

2шт.
