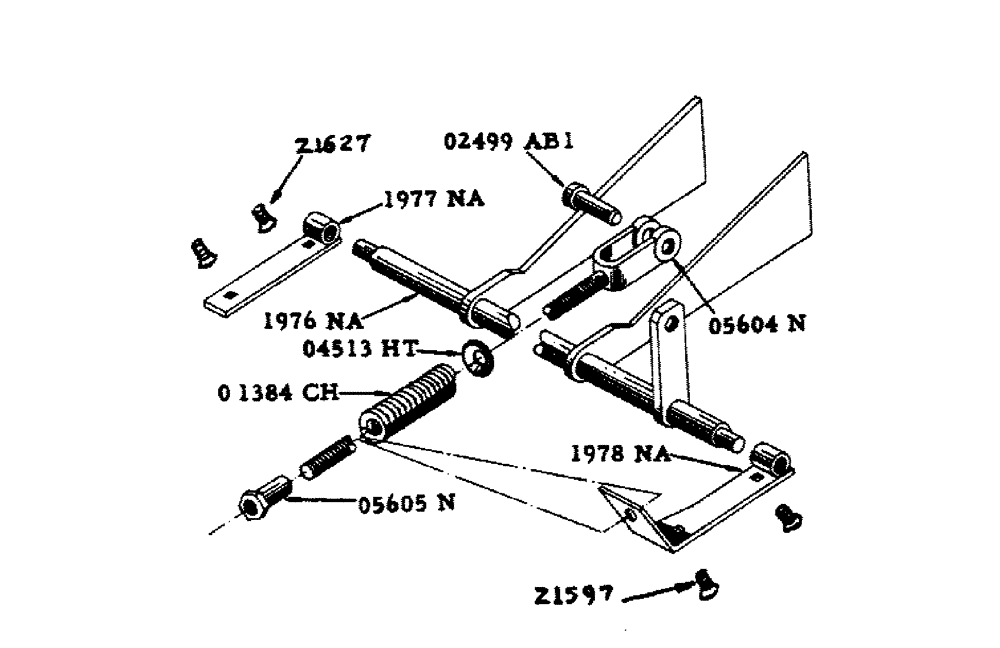

Запчасти Case IH 130 (16) - BALE CHAMBER BOTTOM DOGS

O2499AB1

X

PIN - clevis

1шт.

1/8" x 1" cotter pin

1шт.

O1384CH

SPRING - clevis

1шт.

O4513HT

WASHER - cup, for clevis

1шт.

O5604N

CLEVIS - rod, 1978NA bearing bracket

1шт.

7/16" N.F. hex. nut

2шт.

O5605N

GUIDE - spring

1шт.

Z1597

X

BOLT - (3/8" x 1-1/4" #3 plow w/hex. nut) 1978NA bracket

2шт.

3/8" lockwasher

2шт.

Z1627

BOLT - (3/8" x 1" #3 plow w/hex. nut) 1977NA bracket

2шт.

3/8" lockwasher

2шт.

1976NA

DOG - hay

1шт.

1977NA

BRACKET - bearing, hay dog

1шт.

1978NA

BRACKET - bearing, hay dog

1шт.
