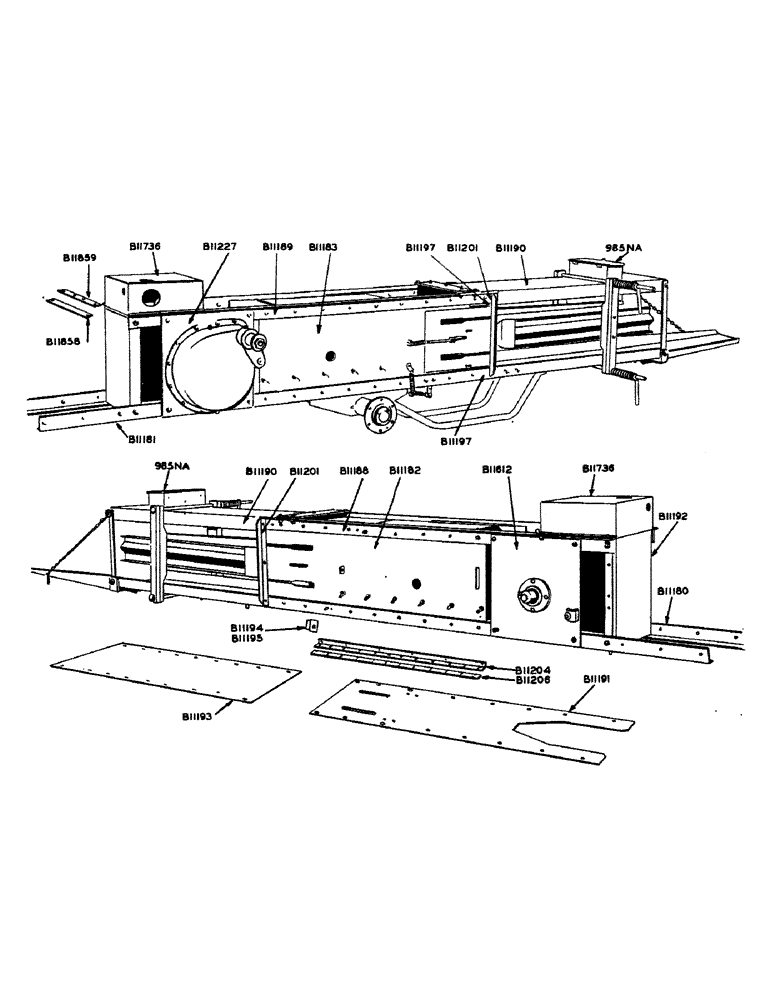

Запчасти Case IH 130 (14) - BALING CHAMBER

B11180

RAIL - lower main, R.H.

1шт.

1/2" x 1" #3 plow bolt w/hex. nut and lockwasher

1шт.

1/2" x 1-1/4" N.F. hex. hd cap screw w/hex. nut and lockwasher

1шт.

B11181

RAIL - lower main, L.H.

1шт.

1/2" x 1" #3 plow bolt w/hex. nut and lockwasher

1шт.

B11182

PLATE - bale case, R.H. side

1шт.

B11183

PLATE - bale case, L.H. side

1шт.

B11188

RAIL - top, R.H.

1шт.

1/2" x 1" #3 plow bolt w/hex. nut and lockwasher

1шт.

1/2" x 1-1/4" N.F. hex. hd. cap screw w/hex. nut and lockwasher

2шт.

3/8" x 1" N.F. hex. hd. cap screw w/hex. nut and lockwasher

2шт.

B11189

RAIL - top, L.H.

1шт.

1/2" x 1" #3 plow bolt w/hex. nut and lockwasher

1шт.

1/2" x 1-1/4" N.F. hex hd. cap screw w/hex, nut and lockwasher

2шт.

3/8" x 1" N.F. hex. hd. cap screw w/hex. nut and lockwasher

2шт.

B11190

PLATE - upper baling chamber

1шт.

B11191

PLATE - bale case, bottom front

1шт.

B11192

PLATE - bale case front

1шт.

1/2" x 1" N.F. hex. hd. cap screw w/hex nut and lockwasher

2шт.

B11193

PLATE - bale case, bottom rear

1шт.

B11194

ANGLE - R.H. plunger wiper

1шт.

3/8" x 1-1/2" N.C. carr. bolt w/hex. nut and lockwasher

1шт.

3/8" plain washer

1шт.

B11195

ANGLE - L.H. plunger wiper

1шт.

3/8" x 1-1/2" N.C. carr. bolt w/hex. nut and lockwasher

1шт.

3/8" plain washer

1шт.

B11197

SPACER - L.H. side plate angle

2шт.

B11201

ANGLE - rear, bale case side plate

2шт.

B11204

ANGLE - plunger hold down w/lining

2шт.

3/8" x 1-1/4" N.C. carr. bolt w/hex. nut and lockwasher

10шт.

3/8" plain washer

10шт.

B11206

LINING - plunger hold down angle

2шт.

#8 x 5/8" ctsk. hd. bronze tubular rivets

14шт.

B11227

PLATE - main frame, L.H. front

1шт.

1/2" x 1-1/4" N.F. hex. hd. cap screw w/hex. nut and lockwasher

4шт.

B11612

PLATE - main frame, R.H. front

1шт.

1/2" x 1-1/4" N.F. hex. hd. cap screw w/hex. nut and lockwasher

4шт.

3/32" x 1" cotter pin

1шт.

B11858

BAR - top front bale case filler (For P.T.O. baler only)

1шт.

3/8" x 1" N.F. hex. hd. cap screw w/hex. nut and lockwasher

2шт.

B11859

BAR - top front bale case cross (For P.T.O. baler only)

1шт.

O2123N1

LUG - bale case

2шт.

O2993N

BOLT - bale case lug

4шт.

5/16" N.C. hex. nut and lockwasher

4шт.

Z1597

X

BOLT - (3/8" x 1-1/4" #3 plow w/hex. nut) 3 for R.H. bale case side plate and 2 for L.H. top rail, 1 for R.H. lower rail

6шт.

3/8" std. lockwasher

6шт.

Z1598

BOLT - 3/8" x 1-1/2" #3 plow bolt w/hex. nut) R.H. lower rail and L.H. lower rail to B11722. 1 for L.H. side plate and 1 for L.H. top rail, 2 for baling chamber skid

6шт.

3/8" std. lockwasher

6шт.

Z1627

BOLT - (3/8" x 1" #3 plow w/hex nut) 11 for R.H. side plate, 14 for L.H. side plate, 3 for R.H. lower rail, 1 for L.H. lower rail, 13 for bottom rear plate

42шт.

3/8" std. lockwasher

42шт.

275NA

X

TOOL BOX (Use 985 NA)

1шт.

985NA

X

TOOL BOX

1шт.
