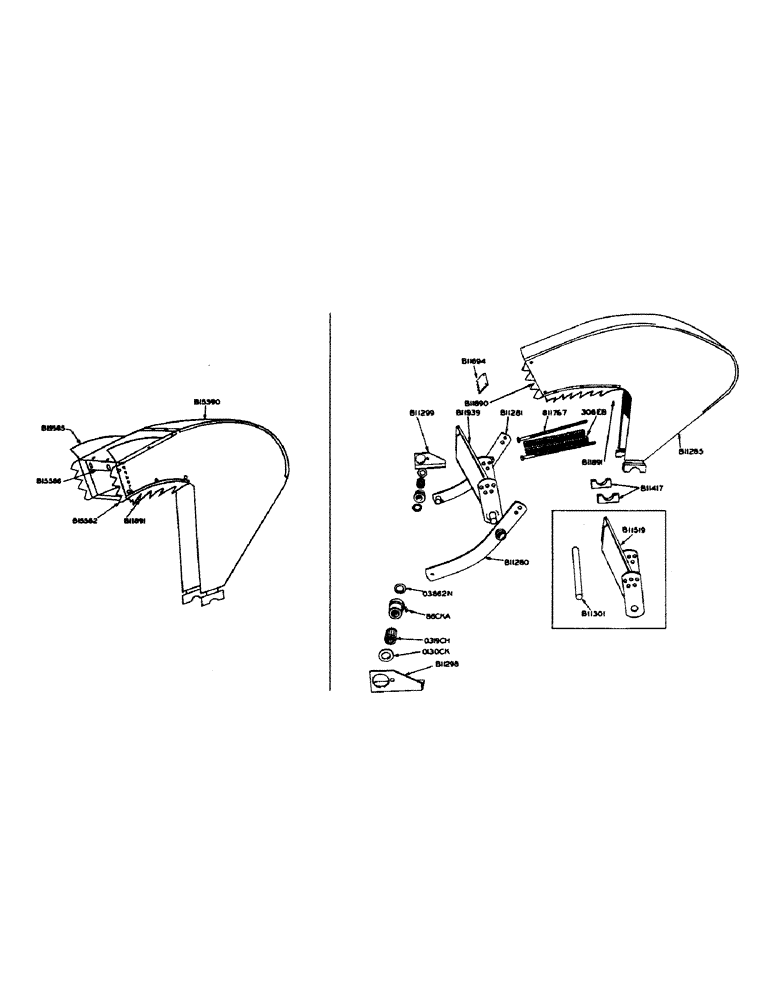

Запчасти Case IH 130 (13) - FEEDER HEAD

B11280

ARM - pivot, feeder head, R.H.

1шт.

3/16" x 1-1/4" cotter pin

2шт.

1/2" x 1-1/2" N.F. hex. hd. cap screw w/hex. nut and lockwasher

1шт.

B11281

ARM - pivot, feeder head, L.H.

1шт.

3/16" x 1-1/4" cotter pin

2шт.

1/2" x 1-1/2" N.F. hex. hd. cap screw w/hex. nut and lockwasher

1шт.

B11285

HEAD - feeder (Use B15590 and re-work B11690 rear feeder sheet as per print attached to new B15590 feeder head)

1шт.

B11298

BRACKET - feeder head pivot, R.H.

1шт.

1/2" x 1" N.F. hex. hd. cap screw w/hex. nut and lockwasher

2шт.

B11299

BRACKET - feeder head pivot, L.H.

1шт.

1/2" x 1" N.F. hex. hd. cap screw w/hex. nut and lockwasher

2шт.

B11300

SPRING - feeder head (Use 306EB)

1шт.

B11301

SHAFT - pivot, feeder head (Use B11939)

1шт.

B11417

BEARING - lower, adjusting arms

2шт.

3/8" x 2" N.F. hex. hd. cap screw w/lockwasher

4шт.

1/4" 28 thrd. str. Lincoln fitting #1510

2шт.

B11519

ARM - adjusting, feeder head (Use B11939)

1шт.

B11694

EXTENSION - feeder head (For use only with B11285 head)

1шт.

B11767

BOLT - feeder head spring

2шт.

1/2" N.C. hex. nut

4шт.

B11890

EXTENSION - feeder head side, small (For use only with B11285 head) See B15582

2шт.

5/16" x 1" rd. hd. mach. screw w/hex. nut and lockwasher

4шт.

B11891

EXTENSION - feeder head side, large

2шт.

5/16" x 1" rd. hd. mach. screw w/hex. nut and lockwasher

4шт.

B11939

ARM - adjusting, feeder head

1шт.

B15582

EXTENSION - feeder head side, small (For use with B15590 head) See B11890

2шт.

B15585

EXTENSION - feeder head, flared for B15590 head

1шт.

B15586

ANGLE - feeder head extension. For B15590 head

1шт.

B15590

HEAD - feeder (If baler was equipped with B11285 feeder head it will be necessary to re-work B11690 rear feeder sheet as per print attached to B15590 head.

1шт.

5/16" x 3/4" N.C. rd. hd. mach. screw w/hex. nut and lockwasher

6шт.

O319CH

BEARING - (Hyatt #94362) pivot shaft

2шт.

O130CK

WASHER - (1-3/4" O.D. x 1-5/32" I.D. #10 ga.) 86CKA bearing retainer

2шт.

306EB

SPRING

- feeder head

2шт.

O3862N

WASHER - (1-3/4" O.D. x 1-5/32" I.D. #19 ga.) pivot shaft

1шт.

86CKA

BEARING - feeder head pivot shaft w/housing (Includes 1-O130CK washer and 1-O319CH bearing)

2шт.

1/8" 90 degree Lincoln fitting #5400

2шт.
