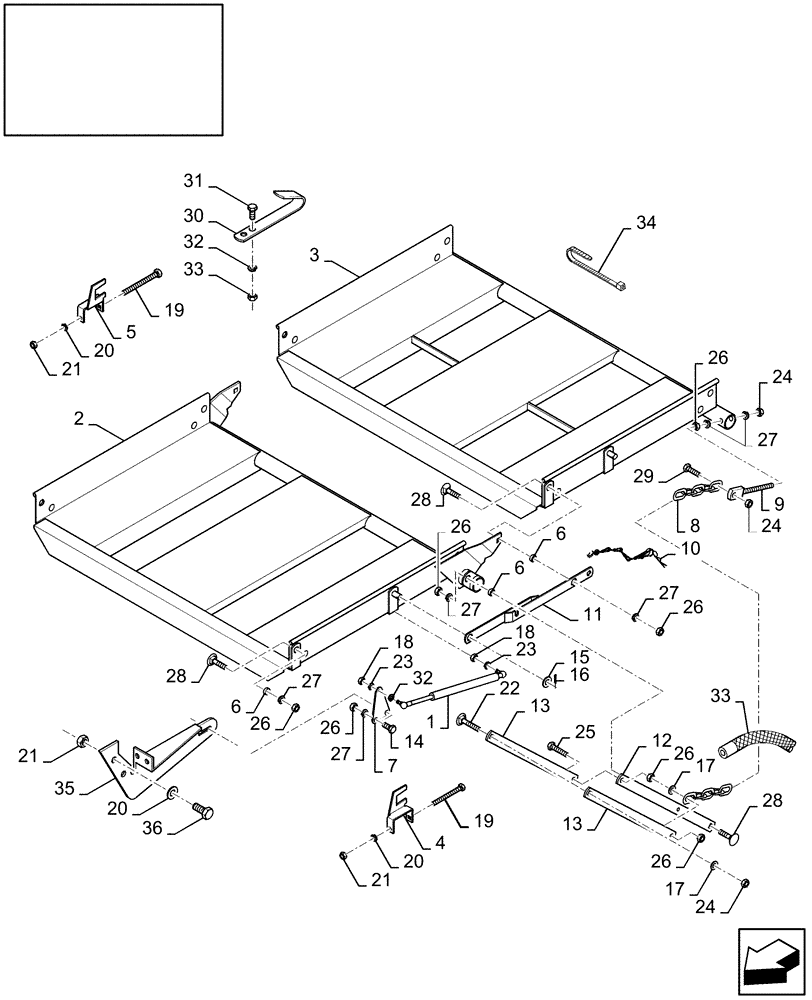

Запчасти Case IH LBX432S (18.84067375[01]) - DIA : PLATE BALE CHUTE (18) - ACCESSORIES

84067375

DIA KIT, HARVESTER

1шт.

1

84320972

SHOCK ABSORBER

2шт.

2

84400062

CHUTE

1шт.

3

84607215

EXTENSION

1шт.

4

84074166

SUPPORT

1шт.

5

84074168

SUPPORT

1шт.

6

9837933

SPACER,17mm ID x 25.4mm OD x 12.5mm L

6шт.

7

84320970

SUPPORT

1шт.

8

84074170

CHAIN,1505mm L

2шт.

9

9512549

ROD

2шт.

10

180043

COTTER PIN

1шт.

11

84320651

SUPPORT

1шт.

12

84074054

SUPPORT

2шт.

13

84074051

SUPPORT

4шт.

14

43167

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

2шт.

15

378248

WASHER,25mm ID x 50mm OD x 4mm Thk

1шт.

16

381929

LOCK PIN,M5 x 60, Slotted

1шт.

17

378246

WASHER,17mm ID x 34mm OD x 3mm Thk

4шт.

18

9706690

NUT,M8 x 1.25, Cl 8

4шт.

19

309308

BOLT,Hex, M12 x 1.75 x 120mm, Cl 8.8

2шт.

20

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

21

9706685

NUT,M12 x 1.75, Cl 8

6шт.

22

120046

CARRIAGE BOLT,M16 x 60mm, Cl 8.8

2шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

24

86000441

NUT,M16 x 2.0, Cl 8

6шт.

25

320246

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8, Full Thd

2шт.

26

100020

NUT,M16 x 2.0, Cl 8

14шт.

27

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

12шт.

28

86595832

CARRIAGE BOLT,Sht Sq Nk, M16 x 40mm, Cl 8.8, Full Thd

6шт.

29

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

2шт.

30

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

31

84429978

SUPPORT

1шт.

32

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

4шт.

33

80292267

BAND

BAND, L= 2.4 M

1шт.

34

84449335

CABLE TIE,346mm L

4шт.
