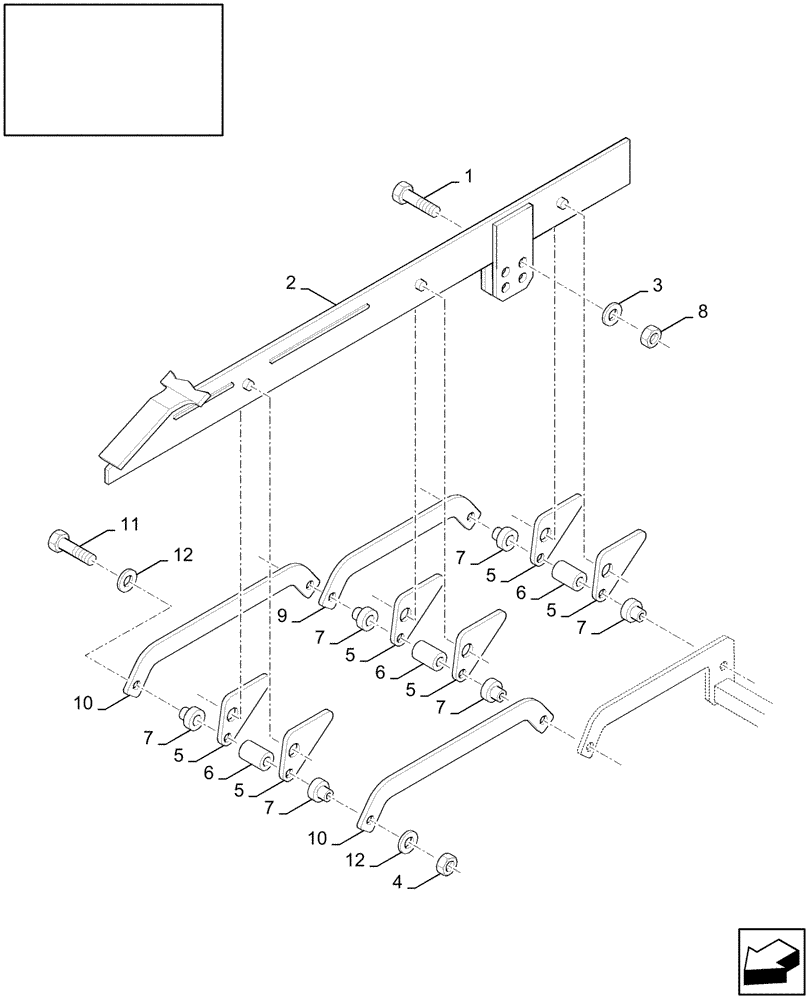

Запчасти Case IH LBX432S (18.84067287[02]) - DIA : BALE EJECT KIT (18) - ACCESSORIES

84067287

DIA KIT, HARVESTER

1шт.

1

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

8шт.

2

84062262

BAR

2шт.

3

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

4

100037

LOCK NUT,M10 x 1.5, Cl 8

6шт.

5

84004660

TOOTH

12шт.

6

84004713

BUSHING,10.5mm ID x 25mm OD x 18mm L

6шт.

7

84004672

BUSHING,10.5mm ID x 20mm OD x 24mm L

12шт.

8

9706685

NUT,M12 x 1.75, Cl 8

8шт.

9

84441918

LINK BLOCK

2шт.

10

84004674

LINK BLOCK

4шт.

11

120075

BOLT,M10 x 1.5 x 106.58mm, Cl 8.8

6шт.

12

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

12шт.
