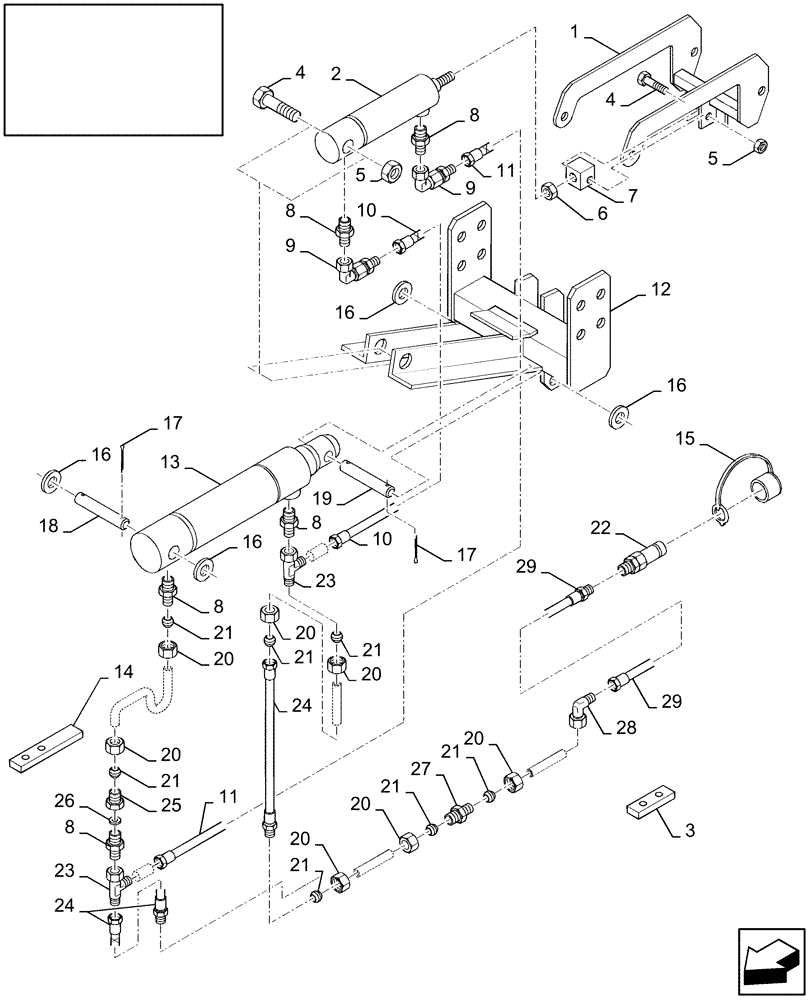

Запчасти Case IH LBX432S (18.84067287[01]) - DIA : BALE EJECT KIT (18) - ACCESSORIES

84067287

DIA KIT, HARVESTER

1шт.

1

84814613

SUPPORT

1шт.

2

84807314

HYDRAULIC CYLINDER,Double Acting, 18mm Rod, 140mm Stroke

1шт.

3

84100035

MOUNTING PLATE

1шт.

4

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

2шт.

5

100038

NUT,M12 x 1.75, Cl 8

2шт.

6

331192

NUT,M16 x 1.5, Cl 8

1шт.

7

9622175

BLOCK

1шт.

8

395019

HYD CONNECTOR,M18 x 1.5 ORB x M16 x 1.5 ORB

5шт.

9

418284

90 ELBOW

2шт.

10

87369746

HOSE,7.90 mm ID x 905.00 mm, SAE J517, SAE 100R1

1шт.

11

87369745

HOSE

1шт.

12

84814610

SUPPORT

1шт.

13

84807316

HYDRAULIC CYLINDER,Double Acting, 40mm Rod, 400mm Stroke

1шт.

14

84007699

COVER PLATE

2шт.

15

84819669

DUST CAP

2шт.

16

338206

WASHER,26mm ID x 35mm OD x 2mm Thk

4шт.

17

130011

COTTER PIN,M5 x 40

4шт.

18

84004813

PIN

1шт.

19

84004833

PIN

1шт.

20

86548975

PIPE UNION NUT,M16 x 1.5

8шт.

21

150014

FERRULE

8шт.

22

84819661

QUICK MALE COUPLING

2шт.

23

734031

HYD CONNECTOR,M16 x 1.5 Male x M16 x 1.5 Male x M16 x 1.5 Female

2шт.

24

84078809

FLEXIBLE HOSE

2шт.

25

445302

HYD CONNECTOR

1шт.

26

396098

RESTRICTOR VALVE

1шт.

27

150017

HYD CONNECTOR,M16 x 1.5 x M16 x 1.5

7шт.

28

84007700

ELBOW

2шт.

29

84031413

HYDRAULIC HOSE,7.9mm ID x 2500mm L, SAE 100R1

2шт.
