Запчасти Case IH LBX432S (06.65[01]) - CABLE HARNESS : 87368945 - D500 (06) - ELECTRICAL SYSTEMS

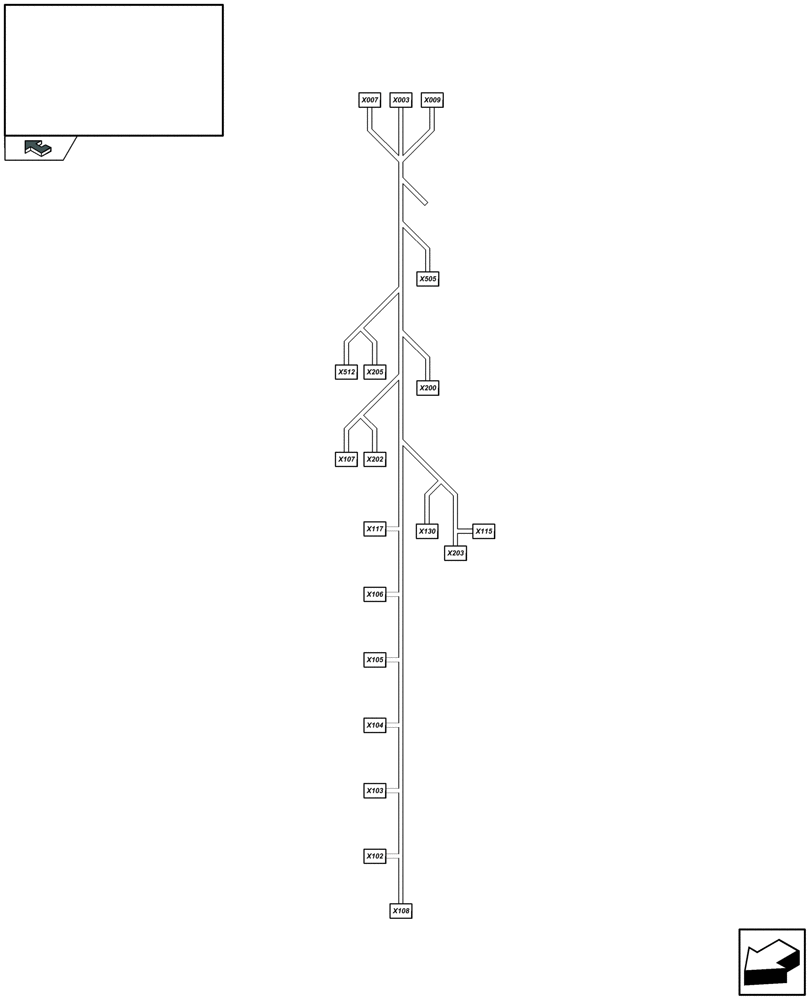

Схема запчастей Case IH LBX432S - (06.65[01]) - CABLE HARNESS : 87368945 - D500 (06) - ELECTRICAL SYSTEMS
x003
x105
x205
x102
x107
x009
x108
x130
x202
x104
x103
x106
x117
x200
x203
x007
x115
x512
home
x505

Артикул

Название

Примечание

Количество

x003

87318211

WIRE CONNECTOR,Female

X3

1шт.

87318220

TERMINAL CONNECTOR,Female, 0.50 - 1 mm2

1шт.

x007

87318220

TERMINAL CONNECTOR,Female, 0.50 - 1 mm2

X7

1шт.

87318218

MULTIPOLE CONNECTOR,Female, 21 Pole

1шт.

87318221

TERMINAL CONNECTOR,Female, 1 - 2.5 mm2

1шт.

x009

87318220

TERMINAL CONNECTOR,Female, 0.50 - 1 mm2

X9

1шт.

87373976

MULTIPOLE CONNECTOR,Female, 21 Pole

1шт.

x102

84074631

CONTACT HOUSING,Female, 2 Pole

X102

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

1шт.

x103

84074631

CONTACT HOUSING,Female, 2 Pole

X103

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

1шт.

x104

84074631

CONTACT HOUSING,Female, 2 Pole

X104

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

1шт.

x105

84074631

CONTACT HOUSING,Female, 2 Pole

X105

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

1шт.

x106

84074631

CONTACT HOUSING,Female, 2 Pole

X106

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

1шт.

x107

84074631

CONTACT HOUSING,Female, 2 Pole

X107

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

1шт.

x108

84074631

CONTACT HOUSING,Female, 2 Pole

X108

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

1шт.

x115

84074631

CONTACT HOUSING,Female, 2 Pole

X115

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

1шт.

x117

84074631

CONTACT HOUSING,Female, 2 Pole

X117

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

1шт.

x130

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X130

1шт.

84074637

WIRE CONNECTOR,Female

1шт.

84074640

LOCKING TAB,Wedge Lock

1шт.

x200

84074643

CONTACT HOUSING,Female, 6 Pole

X200

1шт.

84074641

WEDGE

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

1шт.

x202

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

X202

1шт.

84074630

CONTACT HOUSING,Male, 2 Pole

1шт.

86500166

ELEC CONNECTOR

1шт.

x203

441166

TERMINAL CONNECTOR,Tin, 0.7 - 2.0mm

X203

1шт.

446133

ELEC CONNECTOR,Female, 2 Pin

1шт.

x205

441166

TERMINAL CONNECTOR,Tin, 0.7 - 2.0mm

X205

1шт.

446133

ELEC CONNECTOR,Female, 2 Pin

1шт.

x505

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X505

1шт.

84068583

PLUG,12 - 16 Ga, White

1шт.

84449647

MULTIPOLE CONNECTOR,Female, 8 Pole

1шт.

84806312

LOCKING TAB,Wedge Lock

1шт.

84806918

WIRE CONNECTOR,Male, 8 Pin

1шт.

84806919

PLUG,Wedge Lock

1шт.

Выбрано товаров: 53
