(00.00LB012[01]) - MAINTENANCE PARTS, ROTOR CUTTER - PICK-UP MAIN DRIVE

Запчасти Case IH LBX432R (00.00LB012[01]) - MAINTENANCE PARTS, ROTOR CUTTER - PICK-UP MAIN DRIVE (00) - GENERAL

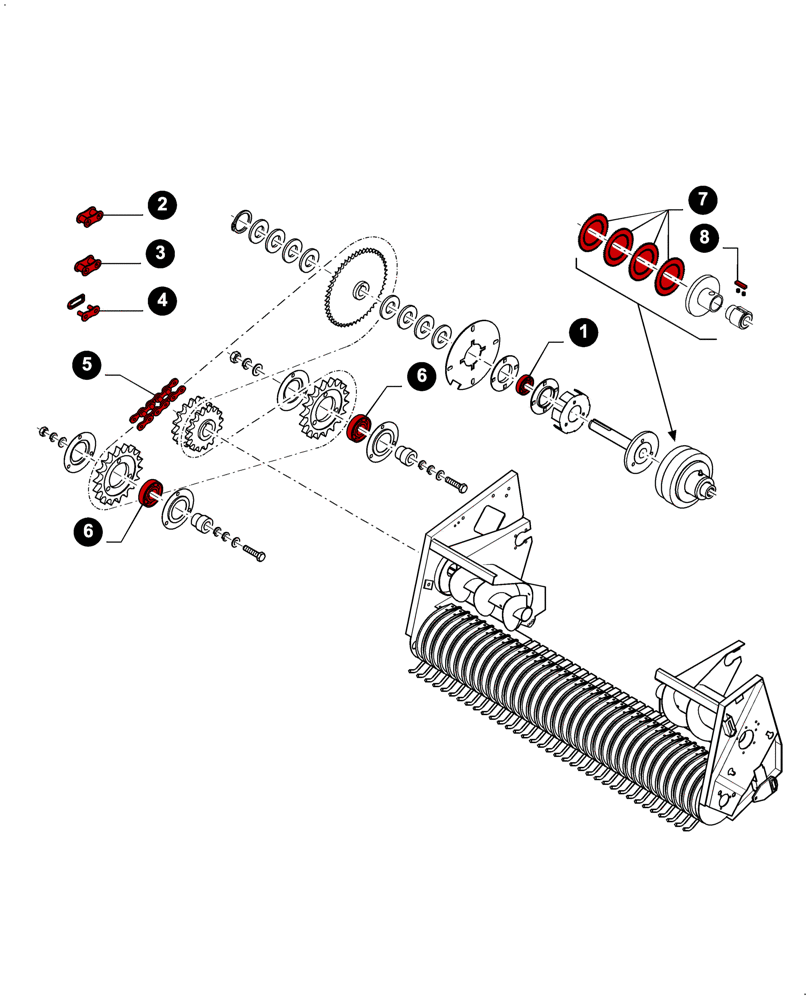

Схема запчастей Case IH LBX432R - (00.00LB012[01]) - MAINTENANCE PARTS, ROTOR CUTTER - PICK-UP MAIN DRIVE (00) - GENERAL
2
7
3
5
6
8
1
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

552945

BEARING ASSY,40 mm ID x 80 mm OD x 30.2 mm

1шт.

2

86595251

LINK,Chain, 19.05mm Pitch

1шт.

ONLY IF NECESSARY

1шт.

3

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

1шт.

4

165590

CONNECTING LINK

1шт.

5

84807354

CHAIN,Roller, 122 Links x 19.05mm = 2324.1mm

(2, 3, 4)

1шт.

6

443898

BALL BEARING,25mm ID x 52mm OD x 15mm W

, Serial Range: -C575

2шт.

7

84026625

DISC

Clutch

4шт.

8

84004301

REPAIR KIT

Pawl, Contains 1 pawl & 1 spring

3шт.
