Запчасти Case IH LBX432R (14.02[01]) - PLUNGER AND PLUNGER ROLLERS (14) - BALE CHAMBER

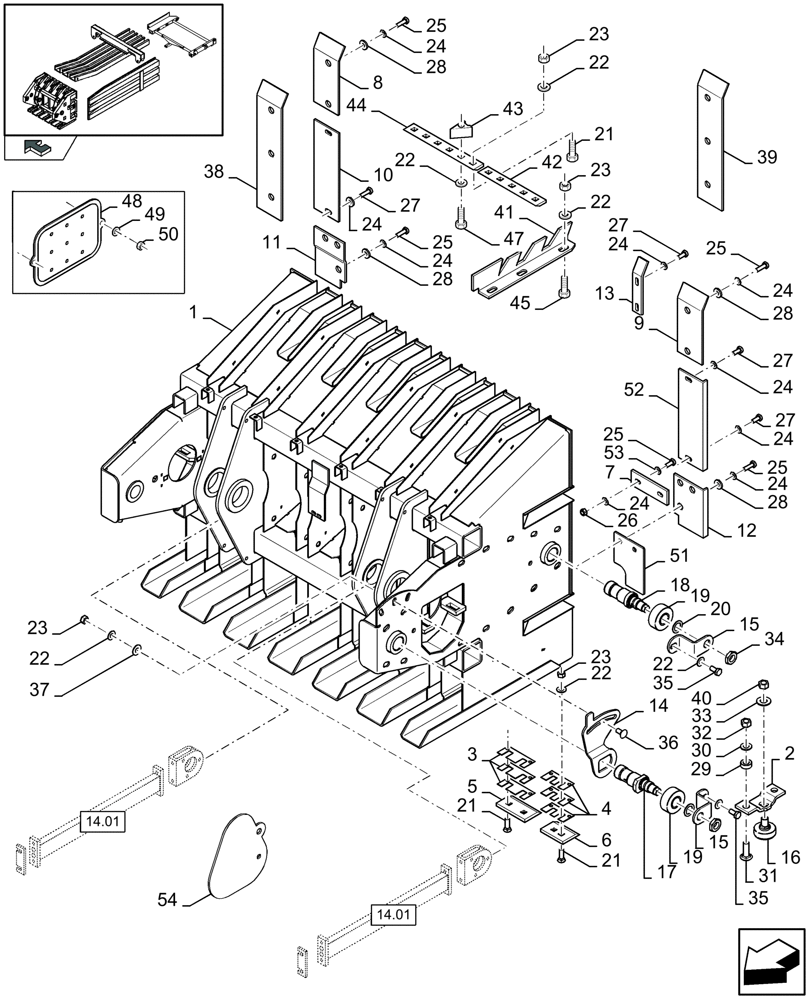

Схема запчастей Case IH LBX432R - (14.02[01]) - PLUNGER AND PLUNGER ROLLERS (14) - BALE CHAMBER
23
2
53
23
41
24
15
28
43
45
28
24
22
34
44
22
32
27
14.01
12
14
51
15
6
21
22
38
17
1
27
48
9
14.01
24
10
23
16
22
50
24
25
24
24
52
4
13
3
30
35
27
8
19
25
24
20
24
5
7
18
25
40
42
39
22
31
19
49
54
25
35
29
28
33
22
26
47
23
24
21
21
37
25
27
home
11
36
28

Артикул

Название

Примечание

Количество

1

84800679

PLUNGER

1шт.

FOR LBX322S, LBX322P, LBX322R ONLY

1шт.

1

84817022

PLUNGER

1шт.

FOR LBX332S, LBX332P, LBX332R ONLY

1шт.

1

84442120

PLUNGER

1шт.

FOR LBX422S, LBX422R ONLY

1шт.

1

84817021

PLUNGER

1шт.

FOR LBX432S, LBX432R ONLY

1шт.

2

84441921

SUPPORT

2шт.

3

84817041

SHIM

1шт.

MAINTENANCE PART

1шт.

4

84817043

SHIM

6шт.

MAINTENANCE PART

1шт.

5

84814869

KNIFE,108mm L x 68mm W x 10mm Thk

3шт.

FOR LBX332S, LBX332P, LBX332R ONLY

1шт.

FOR LBX322S, LBX322P, LBX322R ONLY

1шт.

MAINTENANCE PART

1шт.

5

84814868

KNIFE,116mm L x 68mm W x 10mm Thk

5шт.

MAINTENANCE PART

1шт.

FOR LBX422S, LBX422R, LBX432S, LBX432R ONLY

1шт.

6

84814870

KNIFE,90mm L x 68mm W x 10mm Thk

2шт.

MAINTENANCE PART

1шт.

7

84819017

ANTI-WRAP PLATE

, Serial Range: -C547

3шт.

FOR LBX332S, LBX332P, LBX332R ONLY

1шт.

FOR LBX322S, LBX322P, LBX322R ONLY

1шт.

7

87523579

SCRAPER

, Start Serial: D548

3шт.

FOR LBX332S, LBX332P, LBX332R ONLY

1шт.

FOR LBX322S, LBX322P, LBX322R ONLY

1шт.

7

84441920

ANTI-WRAP PLATE

, Serial Range: -C547

5шт.

FOR LBX422S, LBX422R, LBX432S, LBX432R ONLY

1шт.

7

87523571

SCRAPER

, Start Serial: D548

5шт.

FOR LBX422S, LBX422R, LBX432S, LBX432R ONLY

1шт.

8

84447646

ANTI-WRAP PLATE

RH

1шт.

FOR LBX432S, LBX432R ONLY

1шт.

FOR LBX332S, LBX332P, LBX332R ONLY

1шт.

9

84819013

ANTI-WRAP PLATE

LH

1шт.

FOR LBX432S, LBX432R ONLY

1шт.

FOR LBX332S, LBX332P, LBX332R ONLY

1шт.

10

84818503

ANTI-WRAP PLATE

LH + RH, Serial Range: -C411

2шт.

FOR LBX432S, LBX432R ONLY

1шт.

FOR LBX332S, LBX332P, LBX332R ONLY

1шт.

10

84801186

ANTI-WRAP PLATE

RH, Start Serial: D412

1шт.

FOR LBX432S, LBX432R ONLY

1шт.

FOR LBX332S, LBX332P, LBX332R ONLY

1шт.

11

84818501

ANTI-WRAP PLATE

RH, Serial Range: -C411

1шт.

11

84801359

ANTI-WRAP PLATE

RH, Start Serial: D412

1шт.

12

84447644

ANTI-WRAP PLATE

LH, Serial Range: -C411

1шт.

12

84801361

ANTI-WRAP PLATE

LH, Start Serial: D412

1шт.

13

84441919

ANTI-WRAP PLATE

1шт.

14

84441749

CAM

1шт.

15

84441748

SUPPORT

4шт.

16

89838081

ROLLER

, Serial Range: -C699

2шт.

MAINTENANCE PART

1шт.

16

861325

BEARING ASSY,0.75" ID x 2.5" OD x 2.25"

, Start Serial: D700

2шт.

MAINTENANCE PART

1шт.

17

84814846

SHAFT

1шт.

MAINTENANCE PART

1шт.

18

84814847

SHAFT

3шт.

MAINTENANCE PART

1шт.

19

84100796

ROLLER,72mm OD x 29mm L

4шт.

MAINTENANCE PART

1шт.

20

89838305

WASHER

4шт.

21

80380420

BOLT

M12 x 40

1шт.

MAINTENANCE PART

1шт.

22

80140046

WASHER

12 MM

1шт.

23

89706685

NUT

M12

1шт.

24

80140045

WASHER

1шт.

25

89706704

BOLT,M10 x 35mm

1шт.

26

80100037

NUT,M10 x 1.5, Class 8

, Serial Range: -C547

1шт.

26

100016

NUT,M10 x 1.5, Cl 8

, Start Serial: D548

1шт.

27

80043139

BOLT,M10 x 25mm

1шт.

27

89706704

BOLT,M10 x 35mm

M10 x 35

1шт.

28

86592700

WASHER,10.5mm ID x 28mm OD x 4mm Thk

, Serial Range: -C423

1шт.

28

80140083

WASHER

, Start Serial: D424

1шт.

29

84064578

BUSHING,16.5mm ID x 32mm OD x 12.5mm L

4шт.

30

80140048

WASHER

4шт.

31

80412185

BOLT

4шт.

32

100020

NUT,M16 x 2.0, Cl 8

, Serial Range: -C547

4шт.

32

392530

NUT,M16, Cl 10

, Start Serial: D548

4шт.

33

80322359

LOCK WASHER

2шт.

34

100033

THIN NUT,Thin, M24 x 1.5, Cl 04

4шт.

35

80300388

SCREW,M12 x 25mm

4шт.

36

80374895

CARRIAGE BOLT

1шт.

37

80543043

WASHER

1шт.

38

84818499

ANTI-WRAP PLATE

RH, Serial Range: -C411

1шт.

FOR LBX322S, LBX322P, LBX322R, LBX422S, LBX422R ONLY

1шт.

38

84801196

SCRAPER BLADE

RH, Start Serial: D412

1шт.

FOR LBX322S, LBX322P, LBX322R, LBX422S, LBX422R ONLY

1шт.

39

84447641

ANTI-WRAP PLATE

LH, Serial Range: -C411

1шт.

FOR LBX322S, LBX322P, LBX322R, LBX422S, LBX422R ONLY

1шт.

39

84801194

SCRAPER BLADE

LH, Start Serial: D412

1шт.

FOR LBX322S, LBX322P, LBX322R, LBX422S, LBX422R ONLY

1шт.

40

80001689

NUT

2шт.

41

84429747

GUIDE

LH

1шт.

41

84429787

GUIDE

RH

1шт.

41

84800583

GUIDE

Middle, LH

3шт.

41

84800581

GUIDE

Middle, RH

3шт.

42

84814537

KNIFE,630mm L x 60mm W x 10mm Thk

LH

1шт.

MAINTENANCE PART

1шт.

FOR LBX422S, LBX422R, LBX432S, LBX432R ONLY

1шт.

43

84607550

GUIDE

1шт.

MAINTENANCE PART

1шт.

44

84400465

KNIFE

1шт.

FOR LBX322S, LBX322P, LBX322R, LBX332S, LBX332P, LBX332R ONLY

1шт.

MAINTENANCE PART

1шт.

44

84814538

KNIFE,540mm L x 60mm W x 10mm Thk

RH

1шт.

MAINTENANCE PART

1шт.

FOR LBX422S, LBX422R, LBX432S, LBX432R ONLY

1шт.

45

80328754

SCREW

1шт.

47

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

1шт.

48

84021078

COVER

2шт.

49

80322357

LOCK WASHER,Belleville, M6

4шт.

50

84814892

WING NUT,M6 x 1.0

4шт.

51

84801357

PLATE

, Start Serial: D412

2шт.

52

84801186

ANTI-WRAP PLATE

LH, Serial Range: -F412423

1шт.

FOR LBX332S, LBX332P, LBX332R, LBX432S, LBX432R ONLY

1шт.

52

84801556

SCRAPER BLADE

LH, Start Serial: D424

1шт.

FOR LBX332S, LBX332P, LBX332R, LBX432S, LBX432R ONLY

1шт.

53

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

, Serial Range: -C547

1шт.

53

140083

WASHER,11mm ID x 40mm OD x 6mm Thk

, Start Serial: D548

1шт.

54

87600336

PLATE

, Start Serial: D584

1шт.

Выбрано товаров: 121
