Запчасти Case IH LBX432R (06.99[01]) - CONNECTORS - FROM 80334588 TO 80445521 (06) - ELECTRICAL SYSTEMS

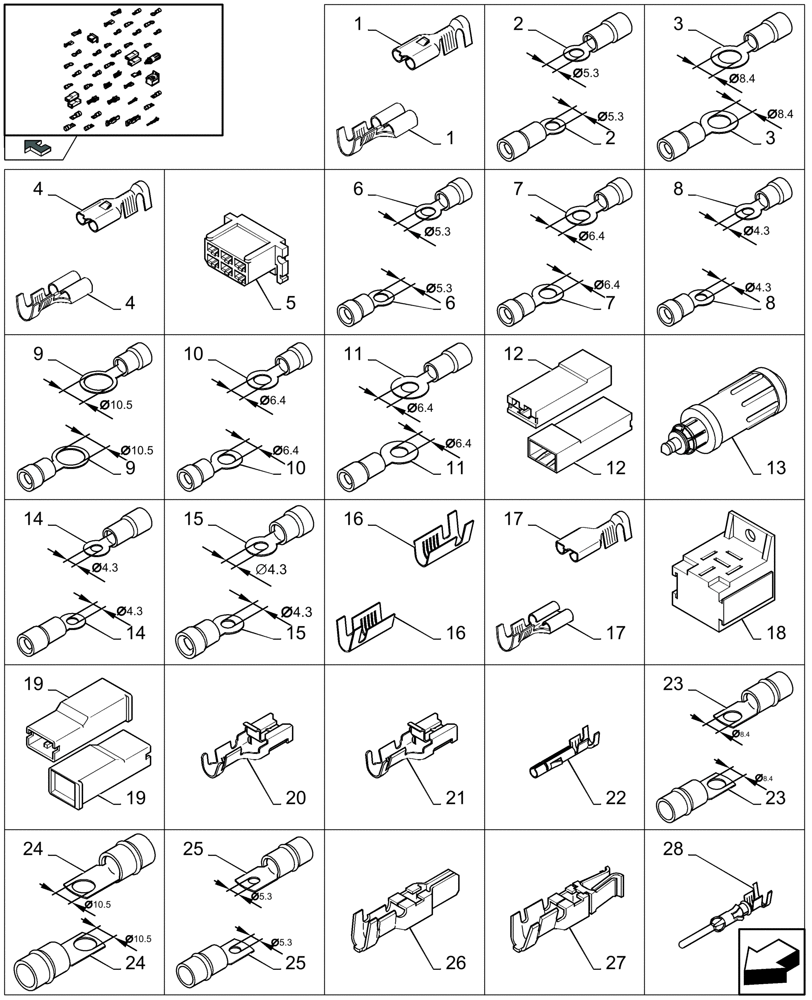

Схема запчастей Case IH LBX432R - (06.99[01]) - CONNECTORS - FROM 80334588 TO 80445521 (06) - ELECTRICAL SYSTEMS
9
4.3
5
10
23
16
2
13
8.4
4
12
4.3
4.3
4
10.5
5.3
17
28
24
6.4
8.4
6.4
5.3
5.3
12
8.4
11
4.3
7
15
6.4
19
3
10.5
6.4
10.5
5.3
27
14
21
23
5.3
1
22
4.3
8
25
18
25
8
1
16
15
19
3
14
home
17
10
24
4.3
26
2
10.5
5.3
6.4
6
11
7
20
6
8.4
6.4
9

Артикул

Название

Примечание

Количество

1

334588

TERMINAL CONNECTOR,1.00 - 2.50mm

1шт.

2

80334591

TERMINAL

4 - 6 MM²

1шт.

3

80334592

TERMINAL CONNECTOR

4 - 6 MM²

1шт.

4

334594

TERMINAL CONNECTOR,Tin, 3.00 - 6.00mm

1шт.

5

334595

MULTIPOLE CONNECTOR,Female, 6 Pin

1шт.

6

334787

CABLE TERMINAL

1.5 - 2.5 MM²

1шт.

7

335316

TERMINAL CONNECTOR,0.3 - 1.3 mm2

1шт.

8

80335480

TERMINAL

1.5 - 2.5 MM²

1шт.

9

335481

TERMINAL CONNECTOR,1.5 - 2.5 mm2

1шт.

10

335482

TERMINAL CONNECTOR,1.5 - 2.5 mm2

1шт.

11

335483

TERMINAL CONNECTOR,4 - 6 mm2

1шт.

12

350674

WIRE CONNECTOR

1шт.

13

353969

POWER SOCKET,Male, 2 Pin

1шт.

14

80354118

TERMINAL

4 - 6 MM²

1шт.

15

80357472

TERMINAL

0.3 - 1.3 MM²

1шт.

16

426199

TERMINAL CONNECTOR,Female, 1 - 2.5 mm2

1.5 - 2.5 MM²

1шт.

17

430026

TERMINAL CONNECTOR,1 - 2.5mm

1.5 - 2.5 MM²

1шт.

18

439588

SUPPORT

1шт.

19

441159

CONTACT HOUSING,Female, 1 Pole

1шт.

20

441166

TERMINAL CONNECTOR,Tin, 0.7 - 2.0mm

0.7 - 2 MM²

1шт.

21

441167

TERMINAL CONNECTOR,Tin, 2.5 - 4.0mm

2.5 - 4 MM²

1шт.

22

442243

TERMINAL

0.5 - 2.1 MM²

1шт.

23

80444851

TERMINAL

16 - 20 MM²

1шт.

24

80444852

TERMINAL

16 - 20 MM²

1шт.

25

80444853

CABLE TERMINAL

16 - 20 MM²

1шт.

26

445517

TERMINAL CONNECTOR,Tin, 1.50 - 4.00mm

1шт.

27

445518

TERMINAL CONNECTOR,Tin, 5.00 - 8.00mm

1шт.

28

445521

TERMINAL CONNECTOR,Tin, 1.00 - 2.50mm

1шт.

Выбрано товаров: 28
