Запчасти Case IH LBX332S (06.56[01]) - CABLE HARNESS : 84449604 - C479 (06) - ELECTRICAL SYSTEMS

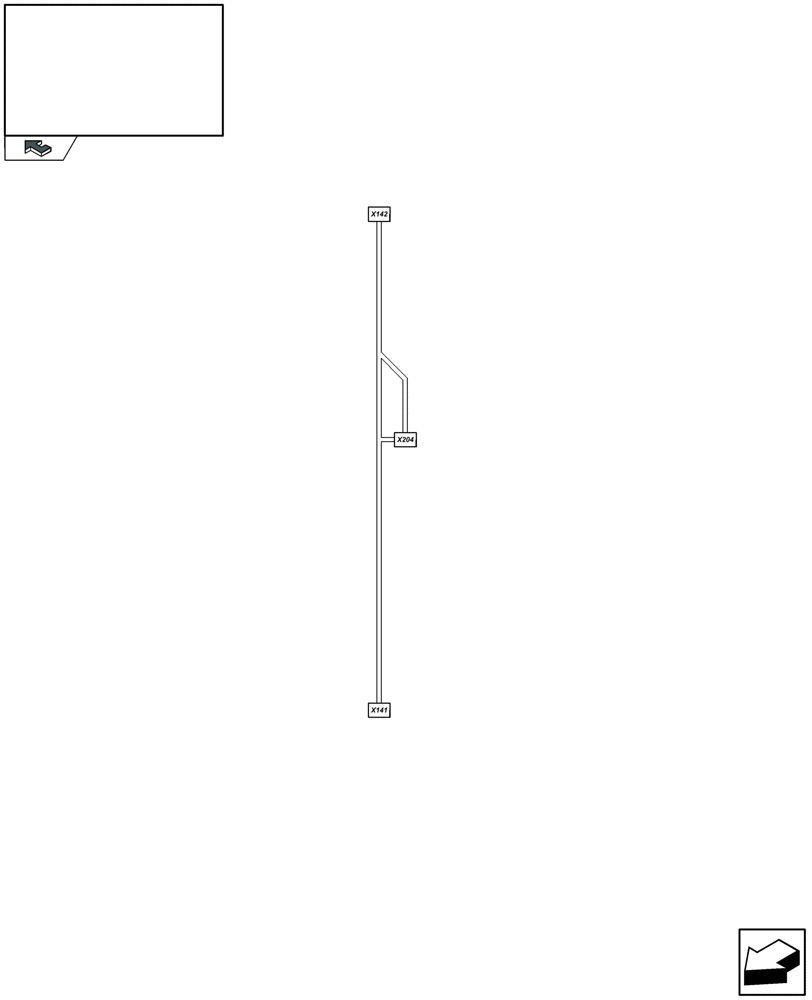

Схема запчастей Case IH LBX332S - (06.56[01]) - CABLE HARNESS : 84449604 - C479 (06) - ELECTRICAL SYSTEMS
home
x141
x204
x142

Артикул

Название

Примечание

Количество

x141

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X141

1шт.

84074631

CONTACT HOUSING,Female, 2 Pole

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

x142

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X142

1шт.

84074637

WIRE CONNECTOR,Female

1шт.

84074640

LOCKING TAB,Wedge Lock

1шт.

x204

441167

TERMINAL CONNECTOR,Tin, 2.5 - 4.0mm

X204

1шт.

441166

TERMINAL CONNECTOR,Tin, 0.7 - 2.0mm

1шт.

441159

CONTACT HOUSING,Female, 1 Pole

1шт.

Выбрано товаров: 9
