Запчасти Case IH LBX332S (06.53[01]) - CABLE HARNESS : 84448287 - C479 (06) - ELECTRICAL SYSTEMS

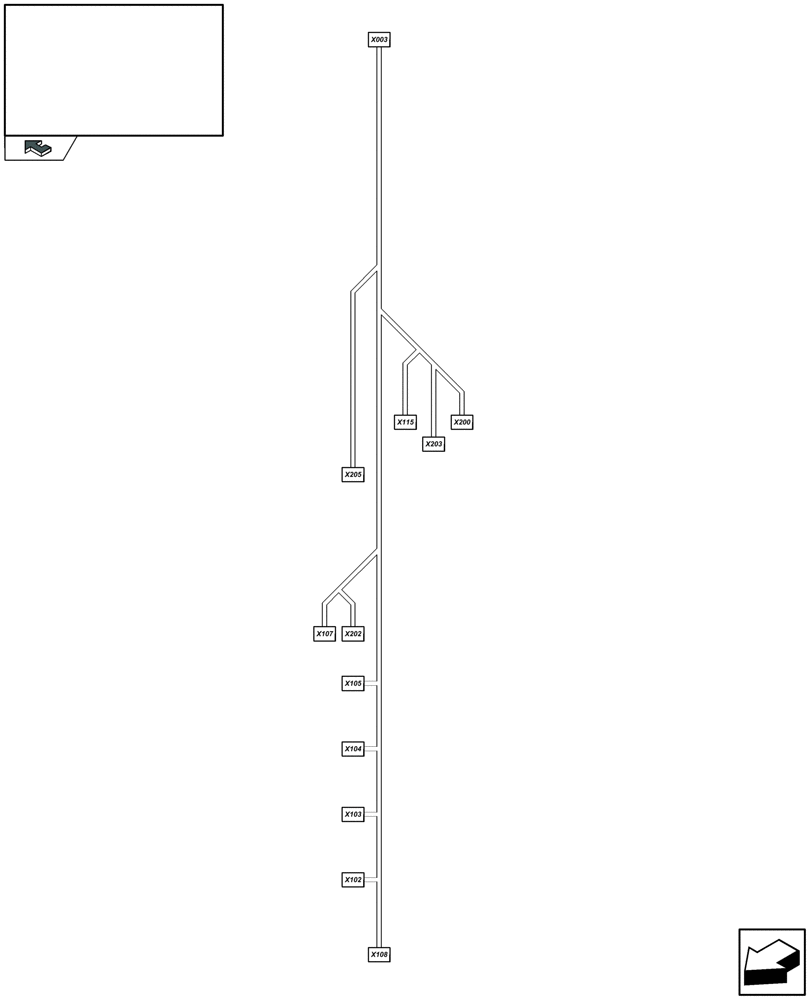

Схема запчастей Case IH LBX332S - (06.53[01]) - CABLE HARNESS : 84448287 - C479 (06) - ELECTRICAL SYSTEMS
x108
x115
x205
home
x102
x203
x003
x105
x202
x103
x107
x104
x200

Артикул

Название

Примечание

Количество

x003

84074252

TERMINAL CONNECTOR,Male

X3

1шт.

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

1шт.

84068583

PLUG,12 - 16 Ga, White

1шт.

900552

ELEC. TERMINAL PIN,Male, 1 - 2 mm2

1шт.

x102

84074631

CONTACT HOUSING,Female, 2 Pole

X102

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

1шт.

x103

84074631

CONTACT HOUSING,Female, 2 Pole

X103

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

1шт.

x104

84074631

CONTACT HOUSING,Female, 2 Pole

X104

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

1шт.

x105

84074631

CONTACT HOUSING,Female, 2 Pole

X105

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

1шт.

x107

84074631

CONTACT HOUSING,Female, 2 Pole

X107

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

1шт.

x108

84074631

CONTACT HOUSING,Female, 2 Pole

X108

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

1шт.

x115

84074631

CONTACT HOUSING,Female, 2 Pole

X115

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

1шт.

x200

84074643

CONTACT HOUSING,Female, 6 Pole

X200

1шт.

84074641

WEDGE

1шт.

84068583

PLUG,12 - 16 Ga, White

1шт.

900569

TERMINAL

1шт.

x202

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

X202

1шт.

84074630

CONTACT HOUSING,Male, 2 Pole

1шт.

86500166

ELEC CONNECTOR

1шт.

x203

446133

ELEC CONNECTOR,Female, 2 Pin

X203

1шт.

441166

TERMINAL CONNECTOR,Tin, 0.7 - 2.0mm

1шт.

x205

446133

ELEC CONNECTOR,Female, 2 Pin

X205

1шт.

441166

TERMINAL CONNECTOR,Tin, 0.7 - 2.0mm

1шт.

Выбрано товаров: 36
