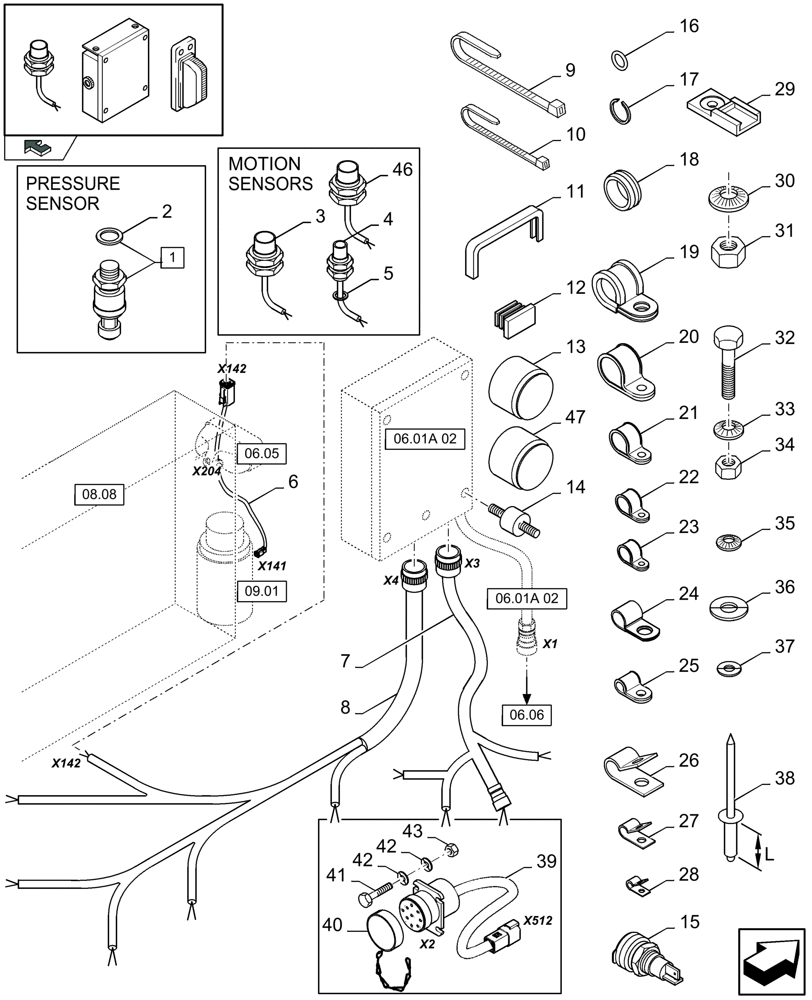

Запчасти Case IH LBX332S (06.01[02]) - ELECTRIC WIRING - D480 (06) - ELECTRICAL SYSTEMS

1

86523197

SENSOR

(2)

1шт.

SEE FIGURE 06.91

1шт.

2

84320139

O-RING,2.2mm Thk x 11.3mm ID

1шт.

3

84058863

SENSOR

7шт.

USED IN ALL LOCATIONS EXCEPT KNOTTER GEARBOX & MIS-TIE INDICATOR

1шт.

SEE FIGURE 06.91

1шт.

4

84078760

SENSOR

1шт.

USED FOR KNOTTER GEARBOX & MIS-TIE INDICATOR

1шт.

SEE FIGURE 06.91

1шт.

5

355607

SEALING WASHER,15.5mm OD x 12mm ID x 1.5mm Thk

SEALRING

1шт.

6

84460888

WIRE HARNESS

1шт.

7

84460024

WIRE HARNESS

, Serial Range: -F480499

1шт.

SEE FIGURE 06.57

1шт.

FOR LBX422S, LBX422R, LBX432S, LBX432R ONLY

1шт.

7

87368945

WIRE HARNESS

, Start Serial: D500

1шт.

SEE FIGURE 06.65

1шт.

FOR LBX422S, LBX422R, LBX432S, LBX432R ONLY

1шт.

7

84460025

WIRE HARNESS

, Serial Range: -F480499

1шт.

FOR LBX322S, LBX322P, LBX322R, LBX332S, LBX332P, LBX332R ONLY

1шт.

SEE FIGURE 06.58

1шт.

7

87368949

WIRE HARNESS

, Start Serial: D500

1шт.

FOR LBX322S, LBX322P, LBX322R, LBX332S, LBX332P, LBX332R ONLY

1шт.

SEE FIGURE 06.66

1шт.

8

84460026

WIRE HARNESS

, Serial Range: -F480499

1шт.

SEE FIGURE 06.59

1шт.

8

87368952

WIRE HARNESS

, Start Serial: D500

1шт.

SEE FIGURE 06.67

1шт.

9

396718

STRAP

L= 335 MM

5шт.

10

9993154

ELASTIC STRAP

L= 260 MM

1шт.

11

80401310

PROFILE

L= 470 MM

1шт.

12

84819755

PLUG

1шт.

13

87105683

CAP

1шт.

14

393802

DAMPER,40mm OD x 80mm L

, Serial Range: -C567

4шт.

15

82002966

POWER SOCKET,M18 x 1

4шт.

16

128999

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

17

103258

GROMMET,5/8" ID x 7/8" Groove Dia

D= 24 MM

1шт.

18

129959

GROMMET

D= 33 MM

3шт.

19

418407

CLAMP,24mm ID, 8.5mm Bolt Hole, P Type

D= 24 MM

3шт.

20

84818444

CLAMP,22.3mm ID, 6.7mm Bolt Hole, P Type

D= 22 MM

9шт.

21

84818443

CLAMP,16.3mm ID, 6.7mm Bolt Hole, P Type

D= 16 MM

1шт.

22

84818442

CLAMP,13.3mm ID, 6.7mm Bolt Hole, P Type

D= 13 MM

7шт.

23

84818441

CLAMP,12.3mm ID, 6.7mm Bolt Hole, P Type

D= 12 MM

1шт.

24

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

D= 12.7 MM

5шт.

25

9507807

CLAMP,8.3mm ID, 6.7mm Bolt Hole, P Type

D= 8 MM

1шт.

26

9837625

CLAMP,25.4mm ID, 10.5mm Bolt Hole, P Type

D= 27 MM

2шт.

27

9837692

CLAMP,16.67mm ID, 13.46mm Bolt Hole, P Type

D= 16.6 MM

2шт.

28

9839372

CLAMP,11.1mm, Coat, 10.3mm Bolt Hole, P Type

D= 10.7 MM

4шт.

29

84058832

CLIP

D= 5.1 MM

1шт.

30

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

31

9706690

NUT,M8 x 1.25, Cl 8

6шт.

32

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

3шт.

33

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

34

9706755

NUT,M6, Cl 8

3шт.

35

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

1шт.

36

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

2шт.

37

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

1шт.

38

89512289

RIVET

L= 20.7 MM

1шт.

38

84007558

RIVET,Pop, 4.8mm OD x 19mm L

L= 19 MM

2шт.

38

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

1шт.

38

9512290

RIVET,Pop, 4.8mm OD x 17.8mm L

1шт.

38

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

39

87374580

WIRE HARNESS

L= 200 MM, Start Serial: D500

1шт.

SEE FIGURE 06.68

1шт.

40

87375051

COVER

, Start Serial: D500

1шт.

41

86511816

SCREW,Pan, M3 x 0.5 x 16mm, Cl 4.8

, Start Serial: D500

4шт.

42

412548

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

3 MM, Start Serial: D500

8шт.

43

86508812

NUT,M3, Cl 8

, Start Serial: D500

4шт.

44

140075

WASHER,8.5mm ID x 30mm OD x 2mm Thk

, Start Serial: D568

4шт.

45

89995013

SCREW

, Start Serial: D568

4шт.

46

87342069

SENSOR

, Start Serial: D664

1шт.

47

87105683

CAP

, Start Serial: D664

1шт.
