Запчасти Case IH LBX332S (15.09[01]) - KNOTTER FANS (15) - KNOTTER /WRAPPER

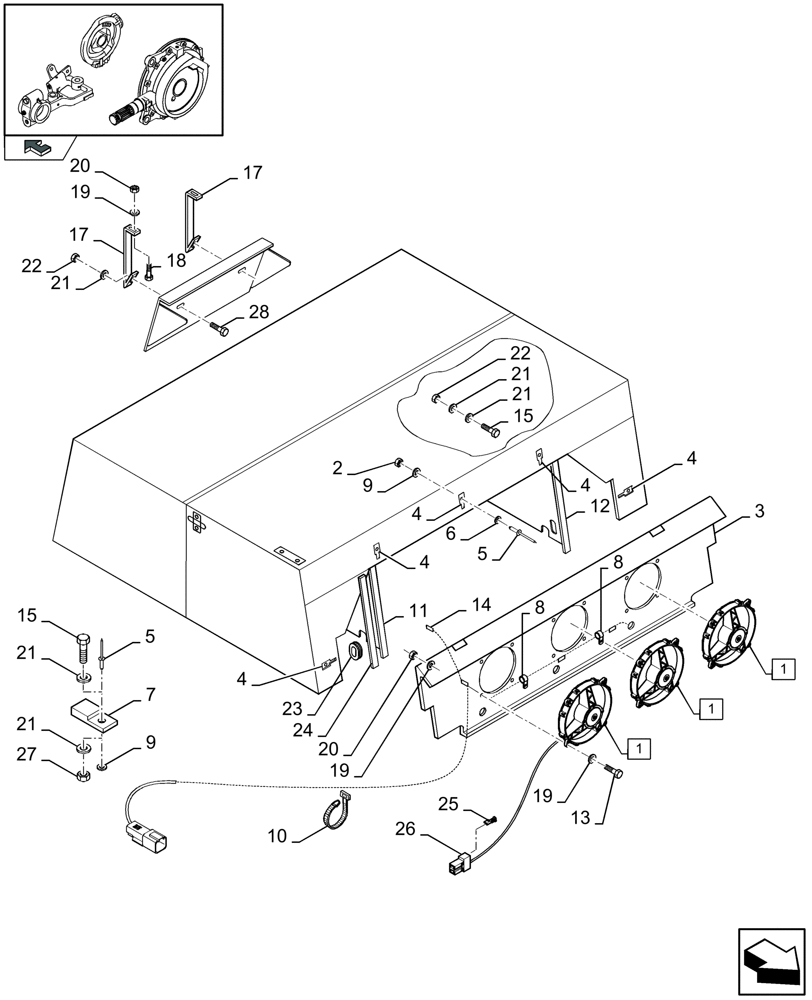

Схема запчастей Case IH LBX332S - (15.09[01]) - KNOTTER FANS (15) - KNOTTER /WRAPPER
20
24
26
12
10
28
9
4
11
9
18
23
27
21
19
4
home
21
5
2
13
4
4
4
25
14
3
21
1
22
7
5
17
8
15
15
22
20
6
1
19
19
8
17
21
1
21

Артикул

Название

Примечание

Количество

1

84429995

FAN

(25, 26)

1шт.

2

80140182

WASHER

1шт.

3

84800683

PLATE

1шт.

FOR LBX322S, LBX322P, LBX322R ONLY

1шт.

3

84400011

SUPPORT

1шт.

FOR LBX332S, LBX332P, LBX332R ONLY, 2 HOLES

1шт.

3

84400009

SUPPORT

1шт.

FOR LBX432S, LBX432R ONLY, 3 HOLES

1шт.

3

84429805

SUPPORT

1шт.

FOR LBX422S, LBX422R ONLY, 3 HOLES

1шт.

4

80362786

LOCKING TAB

1шт.

5

80445394

RIVET

1шт.

6

80362785

WASHER

4шт.

7

84058832

CLIP

, Serial Range: -C455

1шт.

7

84818442

CLAMP,13.3mm ID, 6.7mm Bolt Hole, P Type

, Start Serial: D456

1шт.

8

89839372

CLAMP

, Serial Range: -C455

1шт.

8

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

, Start Serial: D456

1шт.

9

89824326

WASHER

5 MM

1шт.

10

80323597

STRAP

, Serial Range: -C455

1шт.

10

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP, Start Serial: D456

1шт.

11

84053243

PLATE

RH, Serial Range: -C455

1шт.

FOR LBX332S, LBX332P, LBX332R ONLY, 2 HOLES

1шт.

FOR LBX432S, LBX432R ONLY, 3 HOLES

1шт.

11

84400168

PLATE

, Serial Range: -C455

1шт.

FOR LBX422S, LBX422R ONLY, 3 HOLES

1шт.

FOR LBX322S, LBX322P, LBX322R ONLY

1шт.

11

84400168

PLATE

, Start Serial: D456

1шт.

12

84078904

PLATE

LH, Serial Range: -C455

1шт.

FOR LBX332S, LBX332P, LBX332R ONLY, 2 HOLES

1шт.

FOR LBX432S, LBX432R ONLY, 3 HOLES

1шт.

12

84400166

PLATE

LH, Serial Range: -C455

1шт.

FOR LBX422S, LBX422R ONLY, 3 HOLES

1шт.

FOR LBX322S, LBX322P, LBX322R ONLY

1шт.

12

84400166

PLATE

LH, Start Serial: D456

1шт.

13

80043127

SCREW,M8 x 25mm

M8 x 25

1шт.

14

84072857

WIRE HARNESS

1шт.

FOR LBX332S, LBX332P, LBX332R ONLY, 2 HOLES

1шт.

FOR LBX322S, LBX322P, LBX322R ONLY

1шт.

SEE FIGURE 06.85

1шт.

14

84072855

WIRE HARNESS

1шт.

FOR LBX432S, LBX432R ONLY, 3 HOLES

1шт.

FOR LBX422S, LBX422R ONLY, 3 HOLES

1шт.

SEE FIGURE 06.84

1шт.

15

80120100

BOLT,M6 x 1 x 20mm

1шт.

16

84053328

PLATE

1шт.

FOR LBX332S, LBX332P, LBX332R ONLY, 2 HOLES

1шт.

FOR LBX322S, LBX322P, LBX322R ONLY

1шт.

16

84053242

PLATE

1шт.

FOR LBX432S, LBX432R ONLY, 3 HOLES

1шт.

FOR LBX422S, LBX422R ONLY, 3 HOLES

1шт.

17

84400036

BRACKET

2шт.

18

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

1шт.

19

80322358

LOCK WASHER

8 MM

1шт.

20

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

21

80322357

LOCK WASHER,Belleville, M6

1шт.

22

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

14шт.

23

80401266

STRIP-GASKET

1шт.

24

80401278

SEAL

L= 2.550 M

1шт.

FOR LBX432S, LBX432R ONLY, 3 HOLES

1шт.

FOR LBX422S, LBX422R ONLY, 3 HOLES

1шт.

24

80401278

SEAL

L= 2.166 M

1шт.

FOR LBX332S, LBX332P, LBX332R ONLY, 2 HOLES

1шт.

FOR LBX322S, LBX322P, LBX322R ONLY

1шт.

25

334588

TERMINAL CONNECTOR,1.00 - 2.50mm

1шт.

26

334698

TERMINAL CONNECTOR,Female

1шт.

27

412152

NUT,M6 x 1, Cl 8.8

1шт.

28

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

Выбрано товаров: 67
