Запчасти Case IH LBX332R (05.11[01]) - TANDEM AUTO-STEER AXLE WITH BRAKES, FRONT AXLE (05) - AXLE

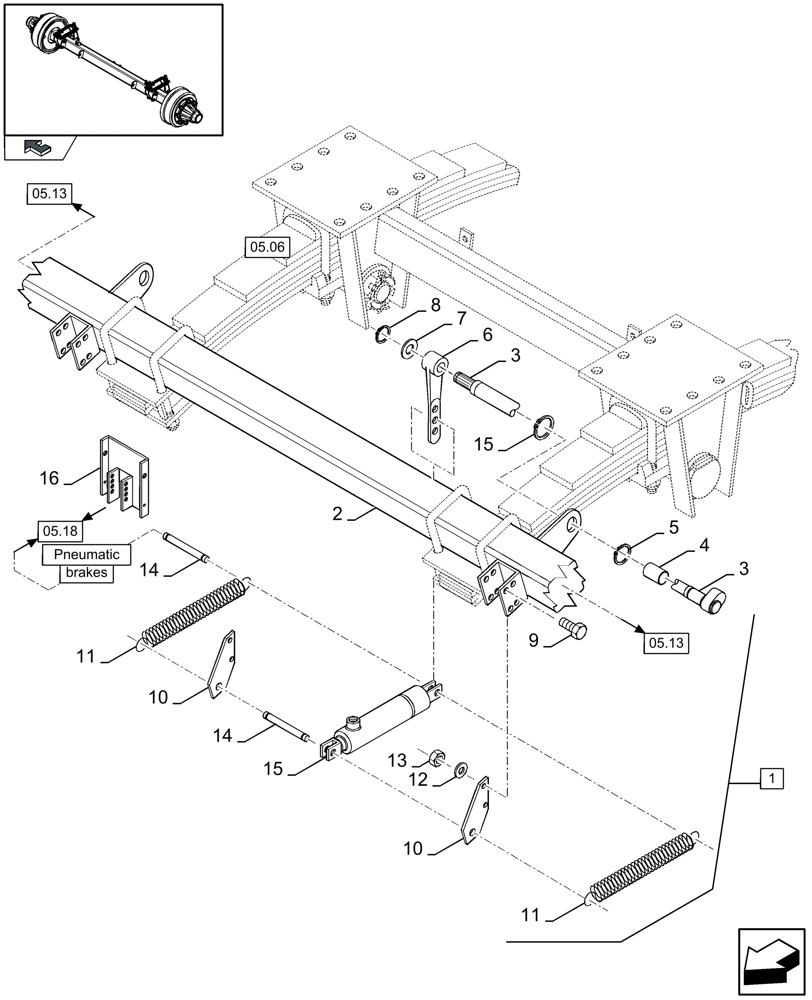

Схема запчастей Case IH LBX332R - (05.11[01]) - TANDEM AUTO-STEER AXLE WITH BRAKES, FRONT AXLE (05) - AXLE
05.18
15
05.13
15
05.06
1
pneumatic
10
4
14
05.13
12
5
13
7
11
2
3
3
16
8
6
14
11
10
home
brakes
9

Артикул

Название

Примечание

Количество

1

84807542

FRONT AXLE

(2-15)

1шт.

FOR HYDRAULIC BRAKES ONLY

1шт.

FOR LBX322S, LBX322P, LBX322R, LBX332S, LBX332P, LBX332R ONLY

1шт.

1

84807551

FRONT AXLE

(2-15)

1шт.

FOR HYDRAULIC BRAKES ONLY

1шт.

FOR LBX422S, LBX422R, LBX432S, LBX432R ONLY

1шт.

1

84807544

FRONT AXLE

(2 to 9, 12, 13, 16)

1шт.

FOR PNEUMATIC BRAKES ONLY

1шт.

FOR LBX322S, LBX322P, LBX322R, LBX332S, LBX332P, LBX332R ONLY

1шт.

1

84807553

FRONT AXLE

(2 to 9, 12, 13, 16)

1шт.

FOR PNEUMATIC BRAKES ONLY

1шт.

FOR LBX422S, LBX422R, LBX432S, LBX432R ONLY

1шт.

2

NSS

NOT SOLD SEPARAT

Shaft

1шт.

3

84100574

SHAFT

2шт.

4

84014235

SLEEVE

2шт.

5

80300632

RETAINER

4шт.

6

84429121

LEVER

2шт.

FOR HYDRAULIC BRAKES ONLY

1шт.

6

84807627

LEVER

RH

1шт.

FOR PNEUMATIC BRAKES ONLY

1шт.

6

84807628

LEVER

LH

1шт.

FOR PNEUMATIC BRAKES ONLY

1шт.

7

84814994

WASHER,26mm ID x 50mm OD x 3mm Thk

2шт.

FOR HYDRAULIC BRAKES ONLY

1шт.

8

80370002

CIRCLIP

2шт.

9

86509597

BOLT,Hex, M30 x 14mm, Cl 8.8

8шт.

10

84100491

SUPPORT

4шт.

11

84014241

SPRING

4шт.

12

80140047

LOCK WASHER

14 MM

8шт.

13

80100065

NUT

M14

8шт.

14

84014244

PIN

4шт.

15

84014242

CYLINDER

D= 25 MM

2шт.

16

84100493

SUPPORT

2шт.

FOR PNEUMATIC BRAKES ONLY

1шт.

Выбрано товаров: 34
