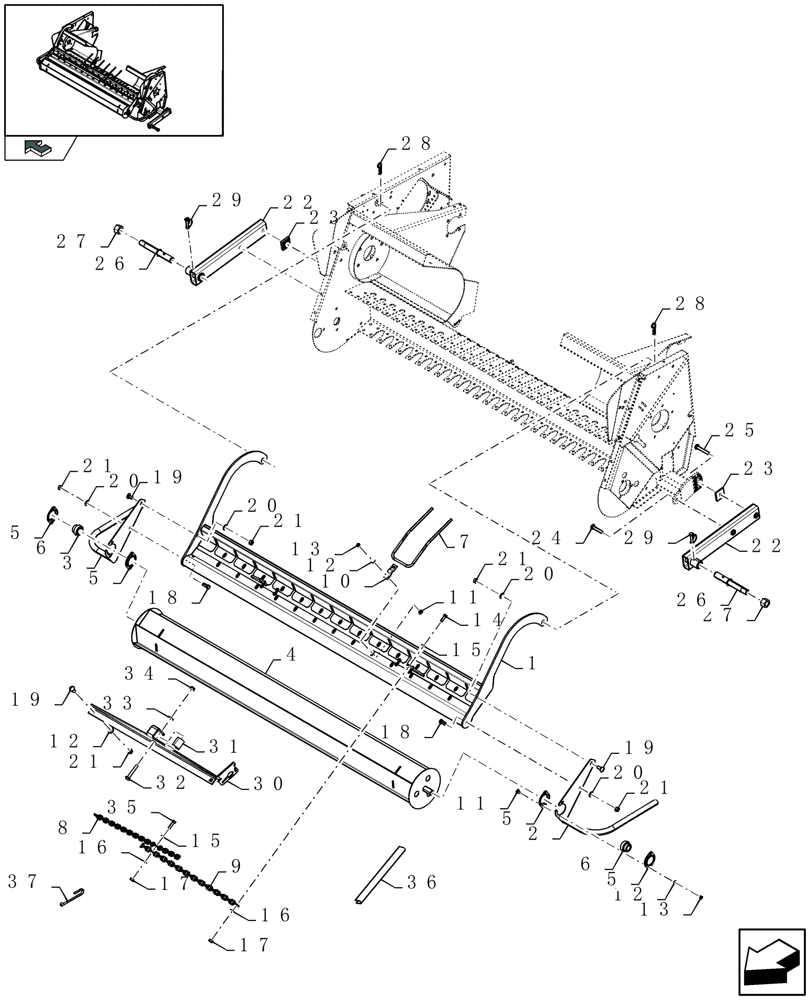

Запчасти Case IH LBX332R (08.017[01]) - ROLLER WINDGUARD (08) - SHEET METAL/DECALS

1

87531843

WINDGUARD

1шт.

FOR LBX422R, LBX432R ONLY

1шт.

1

87531846

WINDGUARD

1шт.

FOR LBX322R, LBX332R ONLY

1шт.

2

87377532

SUPPORT

1шт.

3

87377534

SUPPORT

1шт.

4

84801352

ROLLER

1шт.

5

86548974

FLANGE,Bearing

4шт.

6

325103

BALL BEARING,25mm ID x 52mm OD x 15mm W

2шт.

7

87377536

TINE

4шт.

FOR LBX422R, LBX432R ONLY

1шт.

7

87377536

TINE

3шт.

FOR LBX322R, LBX332R ONLY

1шт.

8

87531831

CHAIN,672mm L

, Serial Range: -C579

1шт.

8

87531831

CHAIN,672mm L

, Start Serial: D580

2шт.

9

84818993

CHAIN,1464mm L

1шт.

10

84056308

PLATE

4шт.

FOR LBX422R, LBX432R ONLY

1шт.

10

84056308

PLATE

3шт.

FOR LBX322R, LBX332R ONLY

1шт.

11

120037

CARRIAGE BOLT,Short Nk, M8 x 20mm, Cl 8.8, Full Thd

1шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

13

9706690

NUT,M8 x 1.25, Cl 8

1шт.

14

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

, Serial Range: -C579

3шт.

14

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

, Start Serial: D580

2шт.

15

140017

WASHER,M10 x 20mm OD x 2mm Thk

3шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

17

100016

NUT,M10 x 1.5, Cl 8

3шт.

18

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

19

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

20

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

21

9706685

NUT,M12 x 1.75, Cl 8

1шт.

22

84074952

ARM

, Serial Range: -C579

2шт.

22

84607735

ARM

, Start Serial: D580

2шт.

23

84041968

LOCKING PLATE

2шт.

24

338263

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8

2шт.

25

84818450

CARRIAGE BOLT,M12 x 85mm, Cl 8.8

2шт.

26

84074953

SHAFT

2шт.

27

9837788

NUT,M24 x 3, Cl 8.8

2шт.

28

437424

COTTER PIN

2шт.

29

9838996

COTTER PIN

2шт.

30

87323476

SUPPORT

1шт.

FOR LBX422R, LBX432R ONLY

1шт.

30

87323341

SUPPORT

1шт.

FOR LBX322R, LBX332R ONLY

1шт.

31

395087

INSULATOR BLOCK

1шт.

32

300662

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8

1шт.

33

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

1шт.

34

100038

NUT,M12 x 1.75, Cl 8

1шт.

35

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

, Start Serial: D580

1шт.

36

291186

PROTECTION STRIP,9.9mm W

L= 0.1 M, Start Serial: D580

1шт.

37

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP, Start Serial: D600

2шт.

FOR LBX322R, LBX332R ONLY

1шт.
