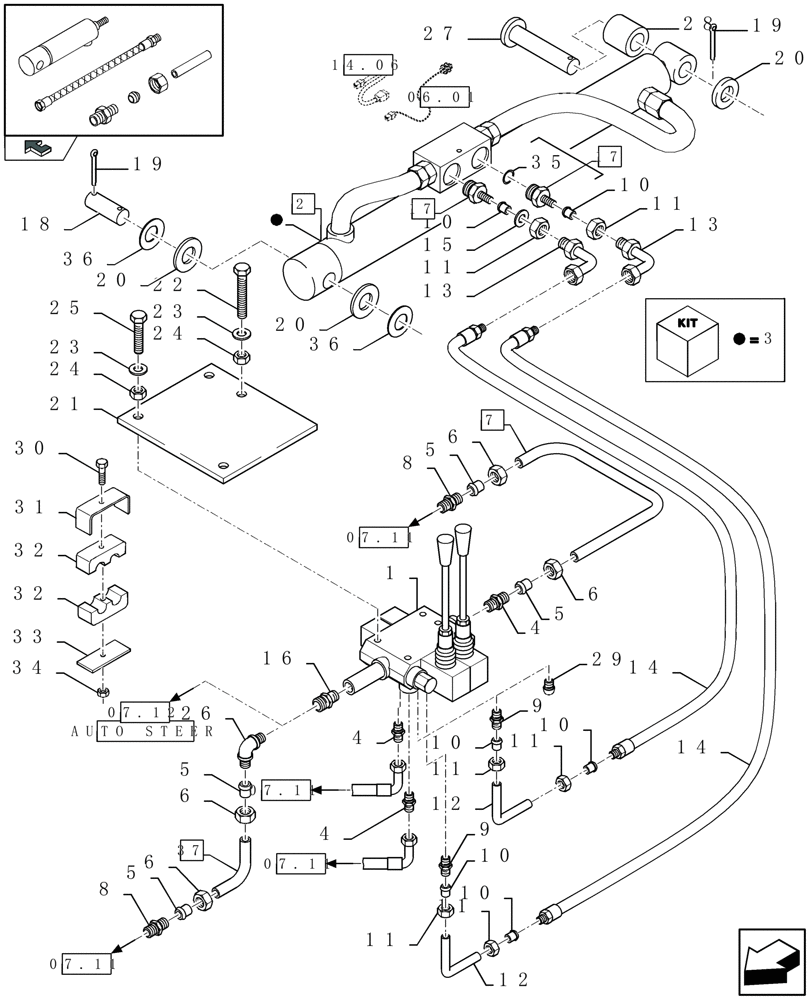

Запчасти Case IH LBX332R (07.10[01]) - BALE EJECT CONTROLE AND BALE CHUTE (07) - HYDRAULIC SYSTEM

1

84062215

HYDRAULIC VALVE

1шт.

2

84449279

HYDRAULIC CYLINDER

(3)

1шт.

2

84272153R

REMAN-HYD CYLINDER

1шт.

2

84272153C

CORE-HYD CYLINDER

Return Number

1шт.

3

84078090

SEAL KIT

1шт.

4

89813512

HYD CONNECTOR

2шт.

5

80150014

FERRULE

10 MM

1шт.

6

86548975

PIPE UNION NUT,M16 x 1.5

M10

1шт.

7

84071773

HYD TUBE

(5, 6) D= 10 MM, Serial Range: -C535

1шт.

FOR LBX322S, LBX322P, LBX322R, LBX332S, LBX332P, LBX332R ONLY

1шт.

7

84071771

HYD TUBE

(5, 6) D= 10 MM, Serial Range: -C535

1шт.

FOR LBX422S, LBX422R, LBX432S, LBX432R ONLY

1шт.

7

87391722

HYD TUBE,10 mm DIA

(5, 6) D= 10 MM, Start Serial: D536

1шт.

FOR LBX322S, LBX322P, LBX322R, LBX332S, LBX332P, LBX332R ONLY

1шт.

7

87373259

HYD TUBE,10 mm DIA x 1283, 656 mm L

(5, 6) D= 10 MM, Start Serial: D536

1шт.

FOR LBX422S, LBX422R, LBX432S, LBX432R ONLY

1шт.

8

80150017

HYD CONNECTOR

1шт.

9

84043514

HYD CONNECTOR

2шт.

10

80335136

FERRULE

8 MM

1шт.

11

80335135

NUT

M8

1шт.

12

80371540

RIGID TUBE

D= 8 MM, L= 2 M

1шт.

13

80418283

ELBOW

1шт.

14

84449371

HYDRAULIC HOSE

2шт.

15

80423996

ORIFICE

1шт.

16

84449514

HYD CONNECTOR

1шт.

17

84074545

HYD CONNECTOR

(35)

2шт.

18

80356015

SPINDLE

1шт.

19

80130007

COTTER PIN

1шт.

20

80378246

WASHER

16 MM

1шт.

21

84074612

PLATE

1шт.

22

80386045

SCREW

M8 x 45

2шт.

23

80322358

LOCK WASHER

8 MM

4шт.

24

89706690

NUT,M8, Cl 8

4шт.

25

80043127

SCREW,M8 x 25mm

Cap, HH, CL 8.8, M8 x 1.25 x 25

2шт.

26

80427419

HYD CONNECTOR

1шт.

27

84078725

CLEVIS PIN,16mm OD x 100mm L

1шт.

28

84400935

ROLLER

1шт.

29

89837623

PLUG

2шт.

WITHOUT ROLLER BALE CHUTE

1шт.

30

80120056

SCREW

M6 x 50

3шт.

31

84814948

SUPPORT

1шт.

32

80430356

CLAMP

2шт.

33

80434097

BRACKET

4шт.

34

80412152

NUT

10шт.

35

84032746

O-RING,2.1mm Thk x 15.4mm ID, 90 Duro

1шт.

36

84814924

WASHER,16.3mm ID x 31.5mm OD x 1.25mm Thk

16 MM

2шт.

37

84449889

HYD TUBE,919.7, 442.8 mm L

(5, 6) D= 10 MM, Serial Range: -C535

1шт.

FOR LBX322S, LBX322P, LBX322R, LBX332S, LBX332P, LBX332R ONLY

1шт.

37

84449799

HYD TUBE,1476.1, 83 mm L

(5, 6) D= 10 MM, Serial Range: -C535

1шт.

FOR LBX422S, LBX422R, LBX432S, LBX432R ONLY

1шт.

37

87391621

HYD TUBE,10 mm DIA

(5, 6) D= 10 MM, Start Serial: D536

1шт.

FOR LBX322S, LBX322P, LBX322R, LBX332S, LBX332P, LBX332R ONLY

1шт.

37

87373521

HYD TUBE,35 mm DIA x 1440.8, 452.6 mm L

(5, 6) D= 10 MM, Start Serial: D536

1шт.

FOR LBX422S, LBX422R, LBX432S, LBX432R ONLY

1шт.
