Запчасти Case IH LBX332P (06.55[01]) - CABLE HARNESS : 84448289 - C479 (06) - ELECTRICAL SYSTEMS

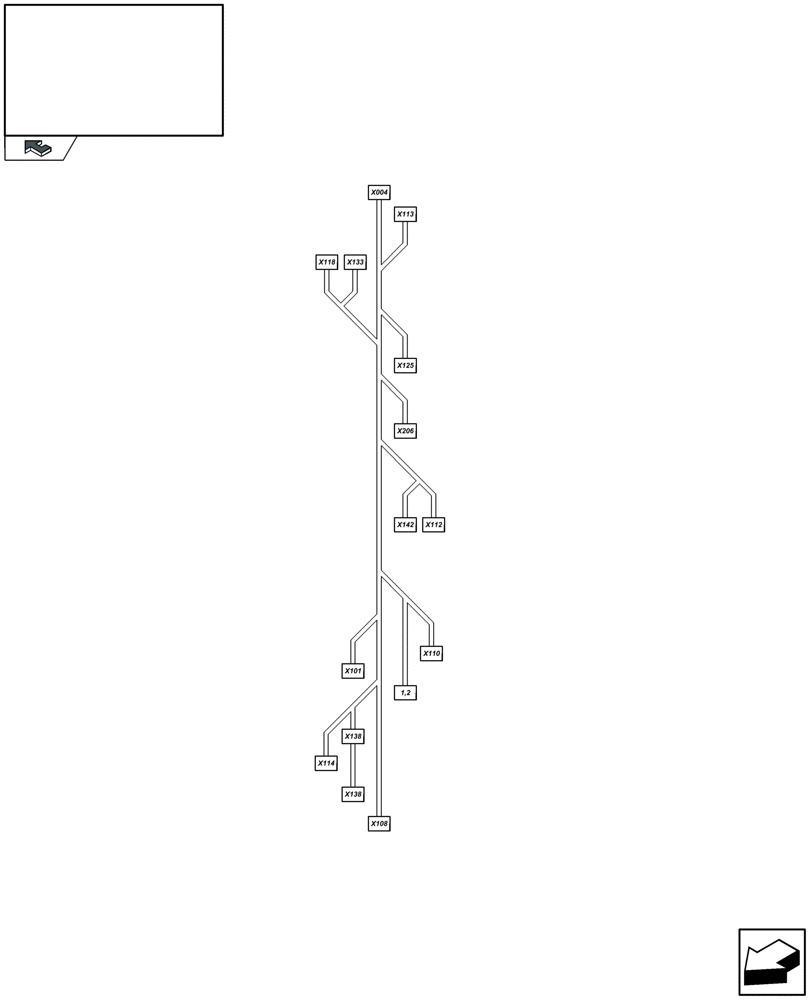

Схема запчастей Case IH LBX332P - (06.55[01]) - CABLE HARNESS : 84448289 - C479 (06) - ELECTRICAL SYSTEMS
x101
x138
x113
x138
x112
home
x118
x114
x206
x133
x142
x004
x125
x108
x110

Артикул

Название

Примечание

Количество

1

441166

TERMINAL CONNECTOR,Tin, 0.7 - 2.0mm

1шт.

2

441159

CONTACT HOUSING,Female, 1 Pole

1шт.

x004

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

X4

1шт.

84074252

TERMINAL CONNECTOR,Male

1шт.

84068583

PLUG,12 - 16 Ga, White

1шт.

x101

84078682

TERMINAL CONNECTOR,Tin, 0.8 - 1.0mm

X101

1шт.

84078681

WIRE CONNECTOR,Female

1шт.

x110

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X110

1шт.

84074631

CONTACT HOUSING,Female, 2 Pole

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

x112

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X112

1шт.

84074631

CONTACT HOUSING,Female, 2 Pole

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X112

1шт.

84074631

CONTACT HOUSING,Female, 2 Pole

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

x113

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X113

1шт.

84074631

CONTACT HOUSING,Female, 2 Pole

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

x114

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X114

1шт.

84074631

CONTACT HOUSING,Female, 2 Pole

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

x118

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

X118

1шт.

84074630

CONTACT HOUSING,Male, 2 Pole

1шт.

86500166

ELEC CONNECTOR

1шт.

x125

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X125

1шт.

84074631

CONTACT HOUSING,Female, 2 Pole

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

x133

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X133

1шт.

84074631

CONTACT HOUSING,Female, 2 Pole

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

x138

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X138

1шт.

84074631

CONTACT HOUSING,Female, 2 Pole

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

84068583

PLUG,12 - 16 Ga, White

X138

1шт.

84074630

CONTACT HOUSING,Male, 2 Pole

1шт.

86500166

ELEC CONNECTOR

1шт.

x142

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

X142

1шт.

84074636

WIRE CONNECTOR,Male

1шт.

9861376

CONTACT HOUSING

1шт.

x206

84806091

WIRE CONNECTOR,Female, 3 Pin

X206

1шт.

84607244

ELEC. TERMINAL PIN,Female, 0.5 - 1 mm2

1шт.

84607242

SEAL

1шт.

y002

426199

TERMINAL CONNECTOR,Female, 1 - 2.5 mm2

Y2

1шт.

84019407

ELEC CONNECTOR

1шт.

Выбрано товаров: 45
