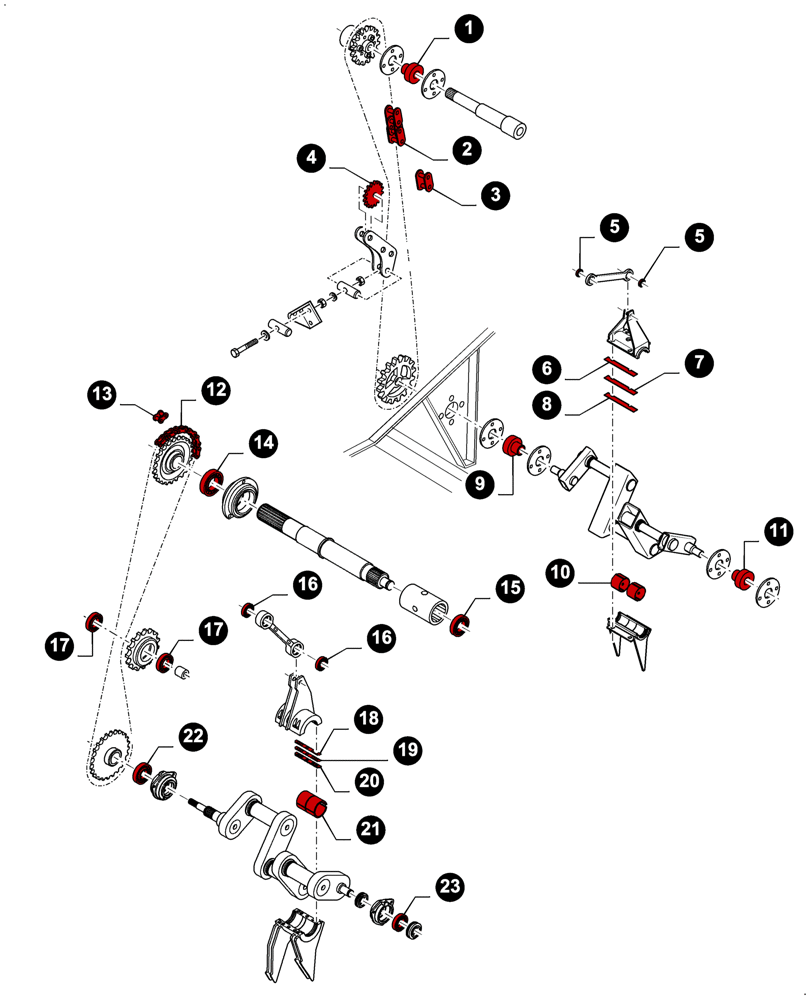

Запчасти Case IH LBX332P (00.00LB010[01]) - MAINTENANCE PARTS, PACKER DRIVE (00) - GENERAL

1

9839347

BEARING ASSY,45mm ID x 85mm OD x 22mm W

1шт.

FOR LBX322S, LBX332S, LBX422S, LBX432S ONLY

1шт.

2

9839358

CHAIN,Roller, 106 Links x 25.4mm = 2692.4mm

(3)

1шт.

FOR LBX322S, LBX332S, LBX422S, LBX432S ONLY

1шт.

3

410402

LINK,Chain, 25.4mm Pitch

1шт.

FOR LBX322S, LBX332S, LBX422S, LBX432S ONLY

1шт.

4

9839348

IDLER GEAR,12T

1шт.

FOR LBX322S, LBX332S, LBX422S, LBX432S ONLY

1шт.

5

9839315

BALL BEARING,16mm ID x 49.21mm OD x 20.65mm W

1шт.

FOR LBX322S, LBX332S, LBX422S, LBX432S ONLY

1шт.

6

9850689

SHIM

Thk.: 0.5 mm, Serial Range: -C491

1шт.

FOR LBX322S, LBX332S, LBX422S, LBX432S ONLY

1шт.

6

84801731

SHIM

Thk.: 1 mm, Start Serial: D492

1шт.

FOR LBX322S, LBX332S, LBX422S, LBX432S ONLY

1шт.

7

9839322

SHIM

Thk.: 0.25 mm

1шт.

FOR LBX322S, LBX332S, LBX422S, LBX432S ONLY

1шт.

8

9839323

SHIM

Thk.: 0.1 mm

1шт.

FOR LBX322S, LBX332S, LBX422S, LBX432S ONLY

1шт.

9

722003

BALL BEARING,55mm ID x 100mm OD x 25mm W

1шт.

FOR LBX322S, LBX332S, LBX422S, LBX432S ONLY

1шт.

10

9839327

HALF-BUSHING

, Serial Range: -C491

1шт.

FOR LBX322S, LBX332S, LBX422S, LBX432S ONLY

1шт.

SET OF TWO HALF SHELLS

1шт.

10

84801730

HALF-BUSHING

, Start Serial: D492

1шт.

FOR LBX322S, LBX332S, LBX422S, LBX432S ONLY

1шт.

SET OF TWO HALF SHELLS

1шт.

11

385424

BALL BEARING,45 mm ID x 85 mm OD x 56.3 mm

1шт.

FOR LBX322S, LBX332S, LBX422S, LBX432S ONLY

1шт.

12

84320124

CHAIN,Roller, 86 Links x 31.75mm = 2730.5mm, #100

(13)

1шт.

FOR LBX322P, LBX332P ONLY

1шт.

13

84320517

CONNECTING LINK

1шт.

FOR LBX322P, LBX332P ONLY

1шт.

14

84074234

BEARING, ROLLER, CYL,60mm ID x 110mm OD x 28mm W

1шт.

FOR LBX322P, LBX332P ONLY

1шт.

15

84004940

SPHERICAL BEARING,20mm ID x 35mm OD x 16mm W

1шт.

FOR LBX322P, LBX332P ONLY

1шт.

16

84039251

SPHERICAL BEARING,30mm ID x 62mm OD x 20mm W

6шт.

FOR LBX322P, LBX332P ONLY

1шт.

17

210049

BALL BEARING,40mm ID x 90mm OD x 23mm W

2шт.

FOR LBX322P, LBX332P ONLY

1шт.

18

84039432

SHIM

Thk.: 0.1 mm

1шт.

FOR LBX322P, LBX332P ONLY

1шт.

18

84039433

SHIM

Thk.: 0.2 mm

1шт.

FOR LBX322P, LBX332P ONLY

1шт.

19

87324678

SHIM

Thk.: 0.8 mm

1шт.

FOR LBX322P, LBX332P ONLY

1шт.

20

84039431

SHIM

Thk.: 3.5 mm, Serial Range: -C499

1шт.

FOR LBX322P, LBX332P ONLY

1шт.

20

87324637

SHIM

Thk.: 6.0 mm, Start Serial: D500

1шт.

FOR LBX322P, LBX332P ONLY

1шт.

21

84038631

SET OF CONN ROD BRGS U/S

, Serial Range: -C499

6шт.

FOR LBX322P, LBX332P ONLY

1шт.

SET OF TWO

1шт.

21

87325607

SLEEVE

, Start Serial: D500

6шт.

FOR LBX322P, LBX332P ONLY

1шт.

SET OF TWO

1шт.

22

84074235

SPHERICAL BEARING,75mm ID x 130mm OD x 31mm W

1шт.

FOR LBX322P, LBX332P ONLY

1шт.

23

323327

SPHERICAL BEARING,40mm ID x 80mm OD x 23mm W

1шт.

FOR LBX322P, LBX332P ONLY

1шт.
