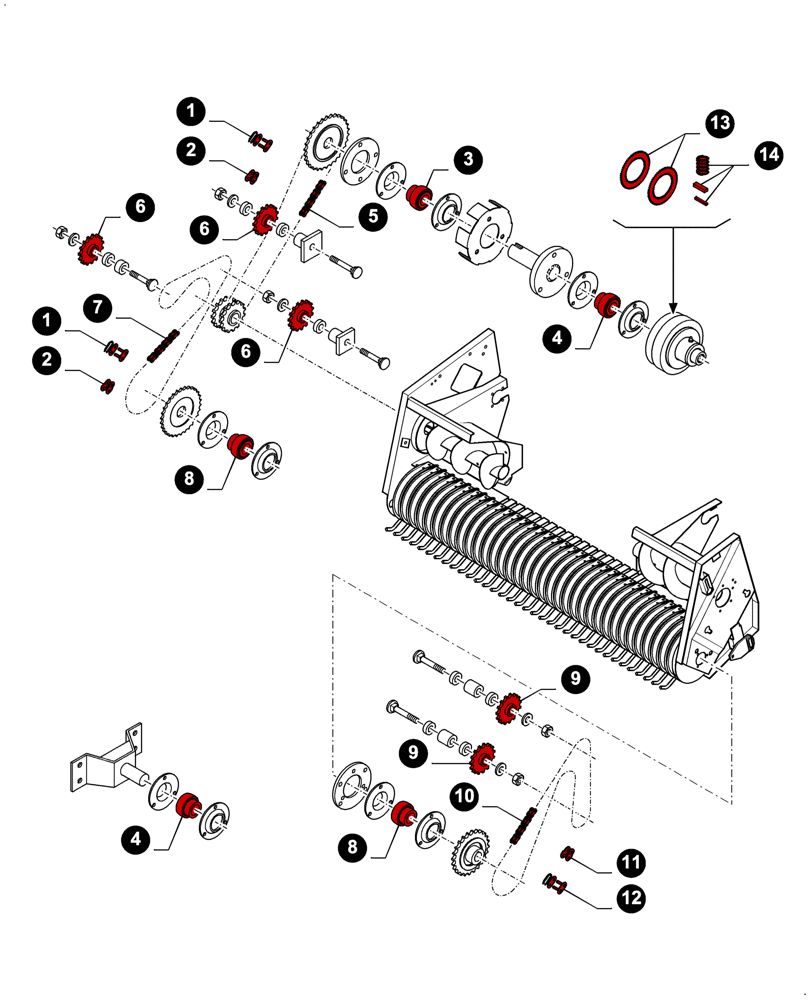

Запчасти Case IH LBX332P (00.00LB009[01]) - MAINTENANCE PARTS, PICK-UP MAIN DRIVE (00) - GENERAL

1

165590

CONNECTING LINK

2шт.

2

25817

OFFSET LINK

2шт.

3

322360

BALL BEARING,35mm ID x 72mm OD x 19mm W

2шт.

4

552945

BEARING ASSY,40 mm ID x 80 mm OD x 30.2 mm

2шт.

5

9837879

CHAIN,Roller, 68 Links x 19.05mm = 1295.4mm

(1, 2)

1шт.

6

9837867

DRIVEN SPROCKET

, Serial Range: -C575

3шт.

6

87517107

DRIVEN SPROCKET

, Start Serial: D576

3шт.

7

9837966

CHAIN,Roller, 105 Links x 19.05mm = 2000.25mm

(1, 2)

1шт.

8

9837842

BEARING,35mm ID x 72mm OD x 19mm W

2шт.

9

9837969

DRIVEN SPROCKET

, Serial Range: -C575

2шт.

9

87517105

DRIVEN SPROCKET

, Start Serial: D576

2шт.

10

9837965

CHAIN,Roller, 123 Links x 15.88mm = 1952.63mm

(11, 12)

1шт.

11

86595276

LINK,15.88mm Pitch

1шт.

12

25194

CONNECTING LINK

1шт.

13

84026625

DISC

Clutch

2шт.

14

84004498

REPAIR KIT

Pawl, Contains 3 pawls & 3 springs

1шт.
