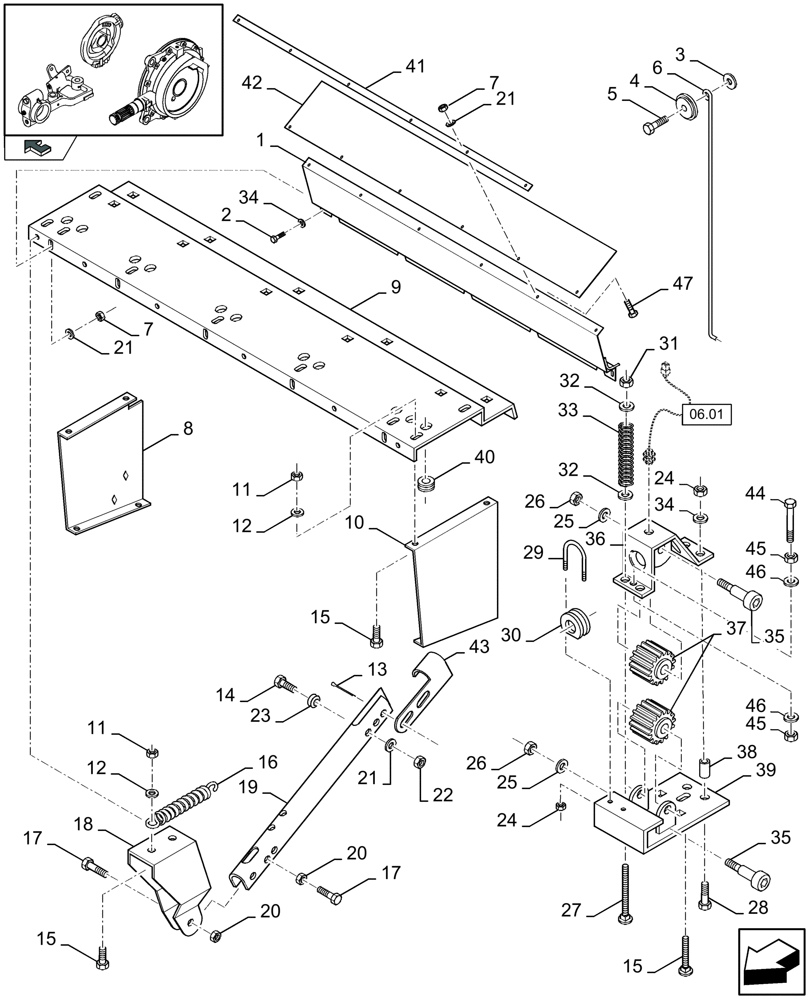

Запчасти Case IH LBX332P (15.07[01]) - TWINE TENSIONERS (15) - KNOTTER /WRAPPER

1

84078873

PLATE

1шт.

FOR TANDEM AXLE ONLY

1шт.

FOR LBX322S, LBX322P, LBX322R, LBX332S, LBX332P, LBX332R ONLY

1шт.

1

84817172

PLATE

1шт.

FOR TANDEM AXLE ONLY

1шт.

FOR LBX422S, LBX422R, LBX432S, LBX432R ONLY

1шт.

2

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

3

80335872

WASHER

1шт.

4

84011441

RING,6mm ID x 60mm OD x 2mm Thk

1шт.

5

89512290

RIVET

1шт.

6

84019720

ROD

1шт.

7

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

8

84074558

SUPPORT

RH

1шт.

9

84078879

SUPPORT

1шт.

FOR LBX322S, LBX322P, LBX322R, LBX332S, LBX332P, LBX332R ONLY

1шт.

9

84817128

SUPPORT

1шт.

FOR LBX422S, LBX422R, LBX432S, LBX432R ONLY

1шт.

10

84000177

SUPPORT

LH

1шт.

NOT FOR TANDEM AXLE

1шт.

11

100016

NUT,M10 x 1.5, Cl 8

1шт.

12

80140045

WASHER

Belleville, M10

1шт.

13

80130004

COTTER PIN

1шт.

14

80043117

SCREW

1шт.

15

80120041

CARRIAGE BOLT

1шт.

16

84806599

SPRING

Upper

1шт.

MAINTENANCE PART

1шт.

16

84807327

SPRING

Lower

1шт.

MAINTENANCE PART

1шт.

17

80043130

SCREW,M8 x 50mm

M8 x 50

1шт.

17

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

1шт.

18

84005807

SUPPORT

Upper, Serial Range: -C519

1шт.

18

87351343

SUPPORTING ARM

Upper, Start Serial: D520

1шт.

18

84000767

SUPPORT

Lower, Serial Range: -C519

1шт.

18

87352418

SUPPORTING ARM

Lower, Start Serial: D520

1шт.

19

84078917

ARM

1шт.

20

80412250

LOCK NUT

M8

1шт.

21

80322357

LOCK WASHER,Belleville, M6

1шт.

22

80353308

NUT

M6

1шт.

23

89838236

ROLLER

, Serial Range: -C547

1шт.

23

87521132

ROPE GUIDE ROLLER,31.5mm OD x 12mm L

, Start Serial: D548

1шт.

24

80353308

NUT

M6

1шт.

25

80080680

LOCK WASHER

, Serial Range: -C547

1шт.

25

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

, Start Serial: D548

1шт.

25

87391155

SPACER,10.5mm ID x 16mm OD x 3mm L

, Start Serial: D548

1шт.

26

280136

NUT,3/8"-16, G8

, Serial Range: -C547

1шт.

MAINTENANCE PART

1шт.

26

100016

NUT,M10 x 1.5, Cl 8

, Start Serial: D548

1шт.

MAINTENANCE PART

1шт.

27

84018757

BOLT,M10 x 1.5 x 160mm, CL 4.6

M10 x 160

1шт.

28

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

, Serial Range: -C547

1шт.

28

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

, Start Serial: D548

1шт.

29

80799339

U-BOLT

, Serial Range: -C547

1шт.

29

370004

SNAP RING,M35 x 1.5mm Thk, External

, Start Serial: D548

1шт.

30

84429814

GUIDE BUSHING

, Serial Range: -C547

1шт.

MAINTENANCE PART

1шт.

30

87331610

GUIDE

, Start Serial: D548

1шт.

MAINTENANCE PART

1шт.

31

86514720

NUT

M10

1шт.

32

80378244

LOCK WASHER

10 MM

1шт.

33

89838888

SPRING

1шт.

34

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

35

84022924

STEP BOLT,3/8" - 16 x 2.17"

, Serial Range: -C547

1шт.

MAINTENANCE PART

1шт.

35

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

, Start Serial: D548

1шт.

MAINTENANCE PART

1шт.

36

9838900

SUPPORT

Lower, Serial Range: -C547

1шт.

36

87528187

BRACKET

Lower, Start Serial: D548

1шт.

36

84320035

SUPPORT

Upper, Serial Range: -C547

1шт.

36

87528185

BRACKET

Upper, Start Serial: D548

1шт.

37

89838895

DRIVEN SPROCKET

Z= 16, Serial Range: -C547

1шт.

MAINTENANCE PART

1шт.

37

87382295

GEAR

Z= 17, Start Serial: D548

2шт.

MAINTENANCE PART

1шт.

38

89838894

SPACER

L= 19 MM, Serial Range: -C547

1шт.

38

87391207

BUSHING

L= 24 MM, Start Serial: D548

1шт.

39

89838902

SUPPORT

, Serial Range: -C547

1шт.

39

87528200

BRACKET

, Start Serial: D548

1шт.

40

80102043

GROMMET

1шт.

41

84078867

FIXING PLATE

1шт.

FOR TANDEM AXLE ONLY

1шт.

FOR LBX322S, LBX322P, LBX322R, LBX332S, LBX332P, LBX332R ONLY

1шт.

41

84078865

FIXING PLATE

1шт.

FOR TANDEM AXLE ONLY

1шт.

FOR LBX422S, LBX422R, LBX432S, LBX432R ONLY

1шт.

42

84078868

CANVAS

1шт.

FOR TANDEM AXLE ONLY

1шт.

FOR LBX322S, LBX322P, LBX322R, LBX332S, LBX332P, LBX332R ONLY

1шт.

42

84078869

CANVAS

1шт.

FOR TANDEM AXLE ONLY

1шт.

FOR LBX422S, LBX422R, LBX432S, LBX432R ONLY

1шт.

43

84032625

SCRAPER BLADE

1шт.

44

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

, Start Serial: D480

1шт.

45

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

, Start Serial: D480

1шт.

46

9706690

NUT,M8 x 1.25, Cl 8

, Start Serial: D480

1шт.
