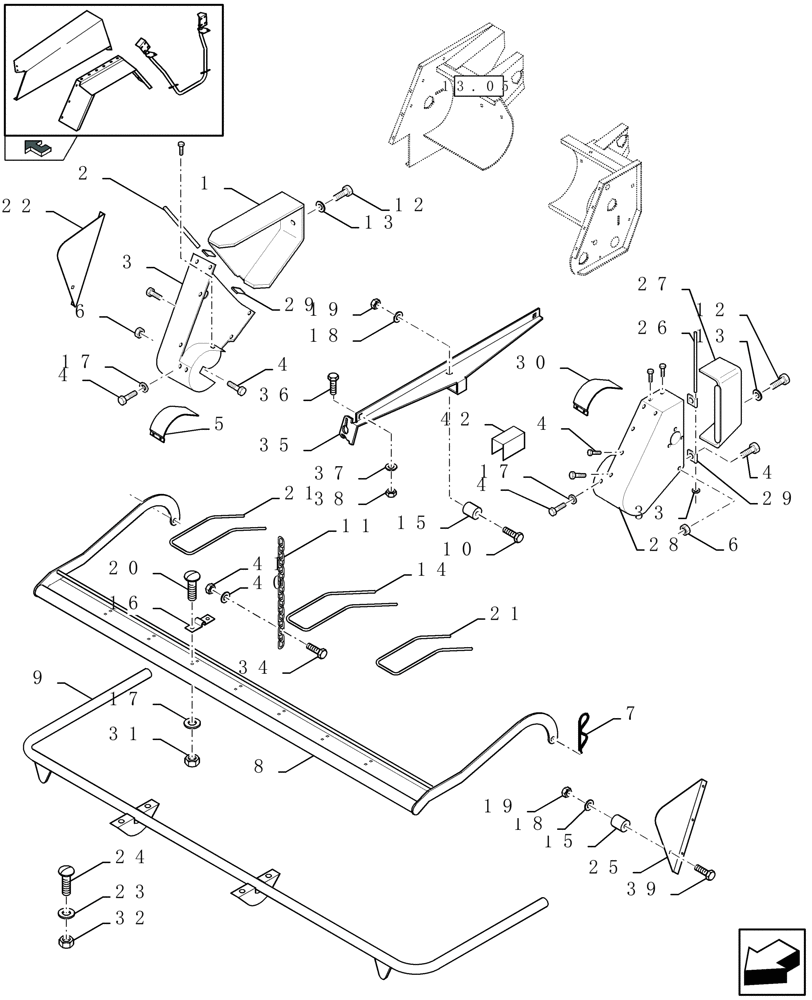

Запчасти Case IH LBX332P (08.002[01]) - PICK-UP PROTECTION (08) - SHEET METAL/DECALS

1

84607889

SHIELD

1шт.

2

89837901

ROD

1шт.

3

84607888

SHIELD

1шт.

4

86511478

BOLT,Hex Serr, M8 x 1.25 x 16mm

1шт.

5

84607744

SHIELD

1шт.

6

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

7

80437424

COTTER PIN

2шт.

8

84607885

SHIELD

Has Curved Pipe at each end, similar to Ref 9

1шт.

FOR LBX422S, LBX432S ONLY

1шт.

8

84607886

WINDGUARD

Has Curved Pipe at each end, similar to Ref 9

1шт.

FOR LBX322S, LBX322P, LBX332S, LBX332P ONLY

1шт.

9

84078429

CENTRAL RAIL

1шт.

NOT FOR NA

1шт.

FOR LBX322S, LBX322P, LBX332S, LBX332P ONLY

1шт.

9

84078427

CENTRAL RAIL

1шт.

NOT FOR NA

1шт.

FOR LBX422S, LBX432S ONLY

1шт.

10

80300662

BOLT

M12 x 80

2шт.

11

84818993

CHAIN,1464mm L

1шт.

12

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

13

80378243

WASHER

8 MM

2шт.

14

84607740

REEL TINE

, Serial Range: -C439

3шт.

14

84801138

REEL TINE

, Start Serial: D440

3шт.

15

80395087

INSULATOR BLOCK

2шт.

16

84056308

PLATE

7шт.

17

80322358

LOCK WASHER

8 MM

1шт.

18

80378245

WASHER

12 MM

1шт.

19

80100038

NUT

M12

1шт.

20

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.

21

84607739

REEL TINE

, Serial Range: -C439

4шт.

21

84801139

REEL TINE

, Start Serial: D440

4шт.

22

84607742

COVER PLATE

1шт.

23

80140045

WASHER

Belleville, M10

1шт.

NOT FOR NA

1шт.

24

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

1шт.

NOT FOR NA

1шт.

25

84607741

COVER PLATE

1шт.

26

89837915

ROD

1шт.

27

84607890

SHIELD

1шт.

28

84607814

SHIELD

1шт.

29

84607734

HINGE

4шт.

30

84607745

SHIELD

1шт.

31

89706690

NUT,M8, Cl 8

1шт.

32

100016

NUT,M10 x 1.5, Cl 8

4шт.

NOT FOR NA

1шт.

33

84429041

LOCKING RING

1шт.

34

80043140

BOLT,M10 x 1.5 x 30mm, Cl 8.8

1шт.

35

84449012

SUPPORT

, Serial Range: -C455

1шт.

FOR LBX322S, LBX322P, LBX332S, LBX332P ONLY

1шт.

35

87323341

SUPPORT

, Start Serial: D456

1шт.

FOR LBX322S, LBX322P, LBX332S, LBX332P ONLY

1шт.

35

84449010

SUPPORT

, Serial Range: -C455

1шт.

FOR LBX422S, LBX432S ONLY

1шт.

35

87323476

SUPPORT

, Start Serial: D456

1шт.

FOR LBX422S, LBX432S ONLY

1шт.

36

80120044

BOLT

M12 x 30

2шт.

37

80140046

WASHER

12 MM

2шт.

38

89706685

NUT

M12

2шт.

39

338263

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8

2шт.

40

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

1шт.

41

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

42

291186

PROTECTION STRIP,9.9mm W

L=0.10 M

1шт.
