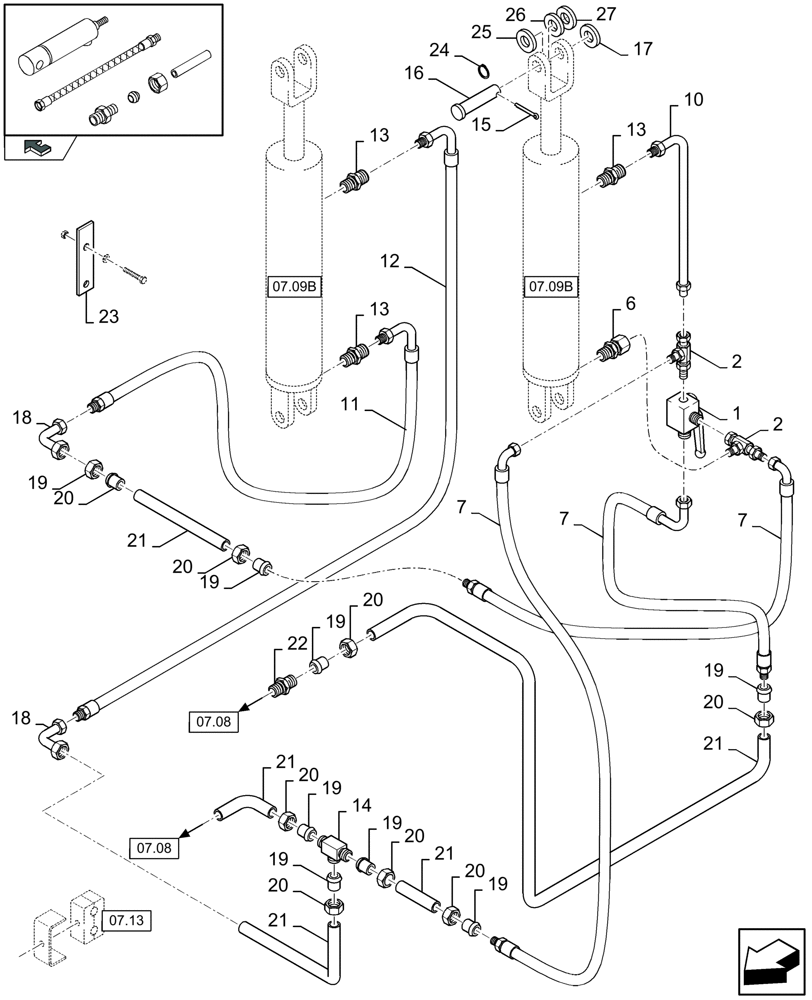

Запчасти Case IH LBX332P (07.09[01]) - DENSITY PRESSER SYSTEM, REAR, WITH BALE EJECT SYSTEM (07) - HYDRAULIC SYSTEM

1

84100885

DRAINCOCK/TAP SUPPLY

1шт.

2

84064562

HYD CONNECTOR

3шт.

6

84452214

HYD CONNECTOR

1шт.

7

84078517

FLEXIBLE HOSE,6.35mm ID x 600mm L, SAE 100R1

3шт.

8

80412152

NUT

2шт.

9

80043118

SCREW

2шт.

10

84452223

HYD TUBE,261.9, 83.8 mm L

1шт.

FOR LBX322S, LBX322P, LBX322R, LBX332S, LBX332P, LBX332R ONLY

1шт.

10

84452439

HYD TUBE,287.9, 139.6 mm L

1шт.

FOR LBX422S, LBX422R, LBX432S, LBX432R ONLY

1шт.

11

84078517

FLEXIBLE HOSE,6.35mm ID x 600mm L, SAE 100R1

1шт.

12

84064567

FLEXIBLE HOSE

1шт.

13

84043514

HYD CONNECTOR

3шт.

14

80379430

3 WAY CONNECTION

, Serial Range: -C663

1шт.

14

84064562

HYD CONNECTOR

, Start Serial: D664

1шт.

15

80130011

COTTER PIN

, Serial Range: -C499

4шт.

16

89837630

SHAFT

, Serial Range: -C499

4шт.

16

87346867

SHAFT

, Start Serial: D500

4шт.

17

80378248

WASHER

25 MM

4шт.

18

80418283

ELBOW

2шт.

19

80335136

FERRULE

8 MM

1шт.

20

80335135

NUT

M8

1шт.

21

80371540

RIGID TUBE

D= 8 MM, L= 2 M

1шт.

22

80335172

HYD CONNECTOR

2шт.

23

84007699

COVER PLATE

1шт.

24

370002

CIRCLIP,M25, External

, Start Serial: D500

4шт.

25

916107

WASHER,25.5mm ID x 35mm OD x 4mm Thk

, Start Serial: D588

4шт.

26

338206

WASHER,26mm ID x 35mm OD x 2mm Thk

, Start Serial: D588

4шт.

27

419854

WASHER,26mm ID x 35mm OD x 1mm Thk

, Start Serial: D588

4шт.
