Запчасти Case IH LBX332P (06.69[01]) - CABLE HARNESS : 84072224 - FOR NA ONLY (06) - ELECTRICAL SYSTEMS

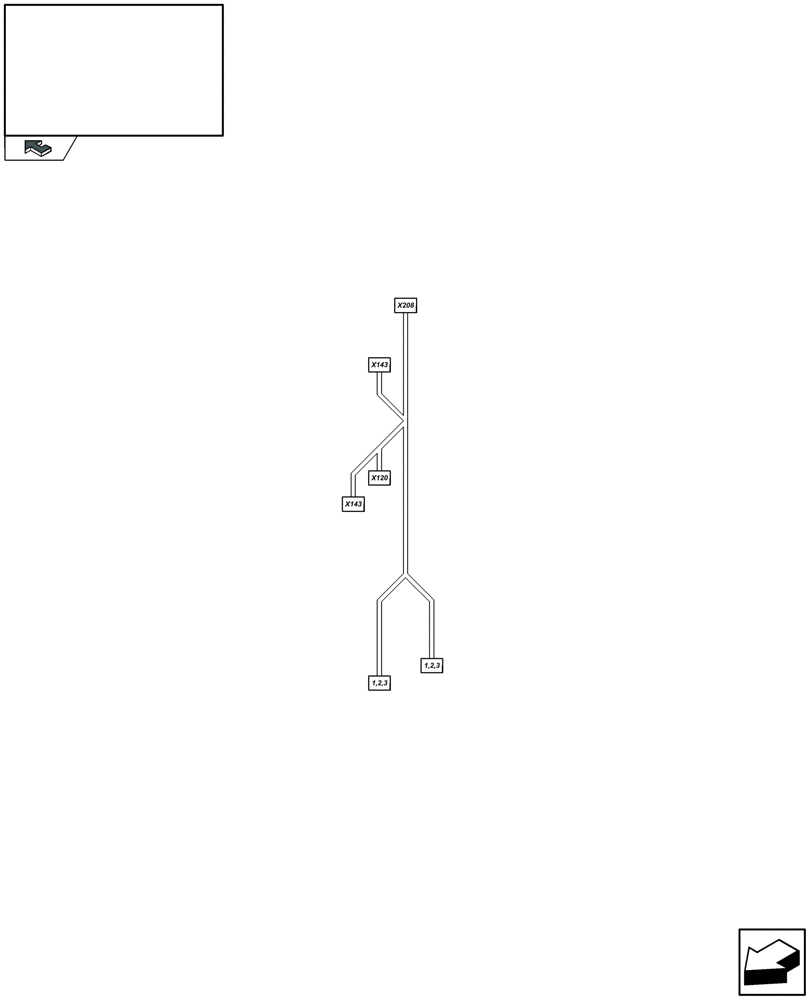

Схема запчастей Case IH LBX332P - (06.69[01]) - CABLE HARNESS : 84072224 - FOR NA ONLY (06) - ELECTRICAL SYSTEMS
x143
x120
home
x208
x143

Артикул

Название

Примечание

Количество

1

441166

TERMINAL CONNECTOR,Tin, 0.7 - 2.0mm

1шт.

2

441159

CONTACT HOUSING,Female, 1 Pole

1шт.

3

430026

TERMINAL CONNECTOR,1 - 2.5mm

1шт.

4

335482

TERMINAL CONNECTOR,1.5 - 2.5 mm2

1шт.

x120

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

X120

1шт.

335482

TERMINAL CONNECTOR,1.5 - 2.5 mm2

1шт.

84074643

CONTACT HOUSING,Female, 6 Pole

1шт.

84074641

WEDGE

1шт.

x143

84074631

CONTACT HOUSING,Female, 2 Pole

X143

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

84068583

PLUG,12 - 16 Ga, White

1шт.

84074630

CONTACT HOUSING,Male, 2 Pole

X143

1шт.

86500166

ELEC CONNECTOR

1шт.

84068583

PLUG,12 - 16 Ga, White

1шт.

x208

426199

TERMINAL CONNECTOR,Female, 1 - 2.5 mm2

X208

1шт.

853543

ELEC CONNECTOR,Female

1шт.

Выбрано товаров: 16
