Запчасти Case IH LBX331R (14.01[01]) - PLUNGER, RODS (14) - BALE CHAMBER

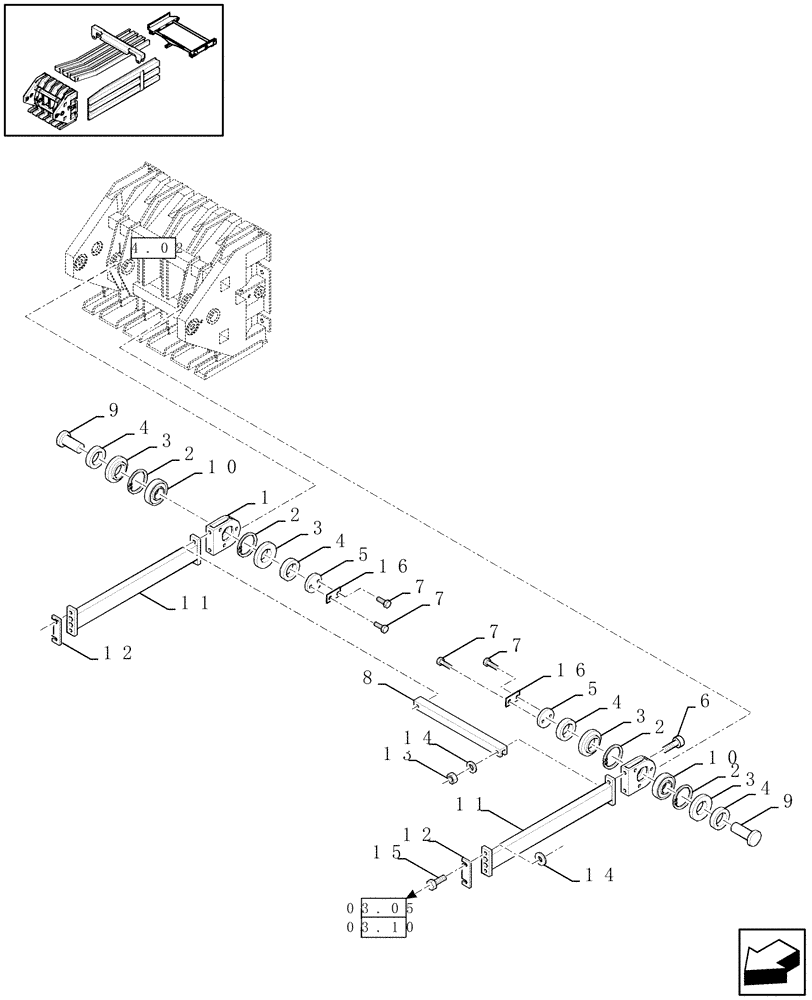

Схема запчастей Case IH LBX331R - (14.01[01]) - PLUNGER, RODS (14) - BALE CHAMBER
8
11
16
3
7
16
13
7
14
14
15
14.02
2
6
7
5
03.05
1
03.10
4
3
5
3
2
4
3
4
9
2
12
2
11
10
9
7
4
12
10

Артикул

Название

Примечание

Количество

1

84074870

SUPPORT,100 mm ID x 52 mm

2шт.

FOR LBX331S, LBX331P, LBX331R ONLY

1шт.

1

84074868

BEARING HOUSING,120 mm ID x 65 mm

2шт.

FOR LBX421S, LBX421R, LBX431S, LBX431R ONLY

1шт.

2

80370026

CIRCLIP

4шт.

FOR LBX331S, LBX331P, LBX331R ONLY

1шт.

2

80412270

SNAP RING

4шт.

FOR LBX421S, LBX421R, LBX431S, LBX431R ONLY

1шт.

3

84000584

SPACER,55mm ID x 85mm OD x 16mm L

4шт.

FOR LBX331S, LBX331P, LBX331R ONLY

1шт.

3

89838119

WASHER, THRUST

4шт.

FOR LBX421S, LBX421R, LBX431S, LBX431R ONLY

1шт.

4

84004409

SEAL,85mm ID x 100mm OD x 9mm Thk

4шт.

FOR LBX331S, LBX331P, LBX331R ONLY

1шт.

4

89838315

GASKET

4шт.

FOR LBX421S, LBX421R, LBX431S, LBX431R ONLY

1шт.

5

84045245

DISC

2шт.

6

84004413

SCREW,M14 x 70mm, Cl 8.8

4шт.

FOR LBX331S, LBX331P, LBX331R ONLY

1шт.

6

89838120

SCREW

4шт.

FOR LBX421S, LBX421R, LBX431S, LBX431R ONLY

1шт.

7

80337563

SCREW

M12x40

4шт.

8

84000586

CROSSRAIL

1шт.

FOR LBX331S, LBX331P, LBX331R ONLY

1шт.

8

89838114

ANGLE BAR

1шт.

FOR LBX421S, LBX421R, LBX431S, LBX431R ONLY

1шт.

9

84045246

SHAFT

2шт.

FOR LBX331S, LBX331P, LBX331R ONLY

1шт.

9

84045247

SHAFT

2шт.

FOR LBX421S, LBX421R, LBX431S, LBX431R ONLY

1шт.

10

89516384

BEARING ASSY

2шт.

FOR LBX331S, LBX331P, LBX331R ONLY

1шт.

10

89838113

BEARING ASSY

2шт.

FOR LBX421S, LBX421R, LBX431S, LBX431R ONLY

1шт.

11

84000588

LINK CONROD

2шт.

FOR LBX331S, LBX331P, LBX331R ONLY

1шт.

11

89838110

LINK CONROD

2шт.

FOR LBX421S, LBX421R, LBX431S, LBX431R ONLY

1шт.

12

84000581

ADJUSTING PLATE

1шт.

FOR LBX331S, LBX331P, LBX331R ONLY

1шт.

12

89838109

ADJUSTING PLATE

1шт.

FOR LBX421S, LBX421R, LBX431S, LBX431R ONLY

1шт.

13

86508817

NUT,M14, Cl 8

M14

4шт.

FOR LBX331S, LBX331P, LBX331R ONLY

1шт.

13

100020

NUT,M16 x 2.0, Cl 8

4шт.

FOR LBX421S, LBX421R, LBX431S, LBX431R ONLY

1шт.

14

84011662

WASHER,14mm ID x 32mm OD x 3.5mm Thk

14MM

8шт.

FOR LBX331S, LBX331P, LBX331R ONLY

1шт.

14

80394631

WASHER

16MM

8шт.

FOR LBX421S, LBX421R, LBX431S, LBX431R ONLY

1шт.

15

86523012

BOLT,Hex, M14 x 2 x 60mm, Cl 8.8

M14x55

4шт.

FOR LBX331S, LBX331P, LBX331R ONLY

1шт.

15

80412398

SCREW

M16x50

4шт.

FOR LBX421S, LBX421R, LBX431S, LBX431R ONLY

1шт.

16

84045248

LOCKING PLATE

2шт.

Выбрано товаров: 55
