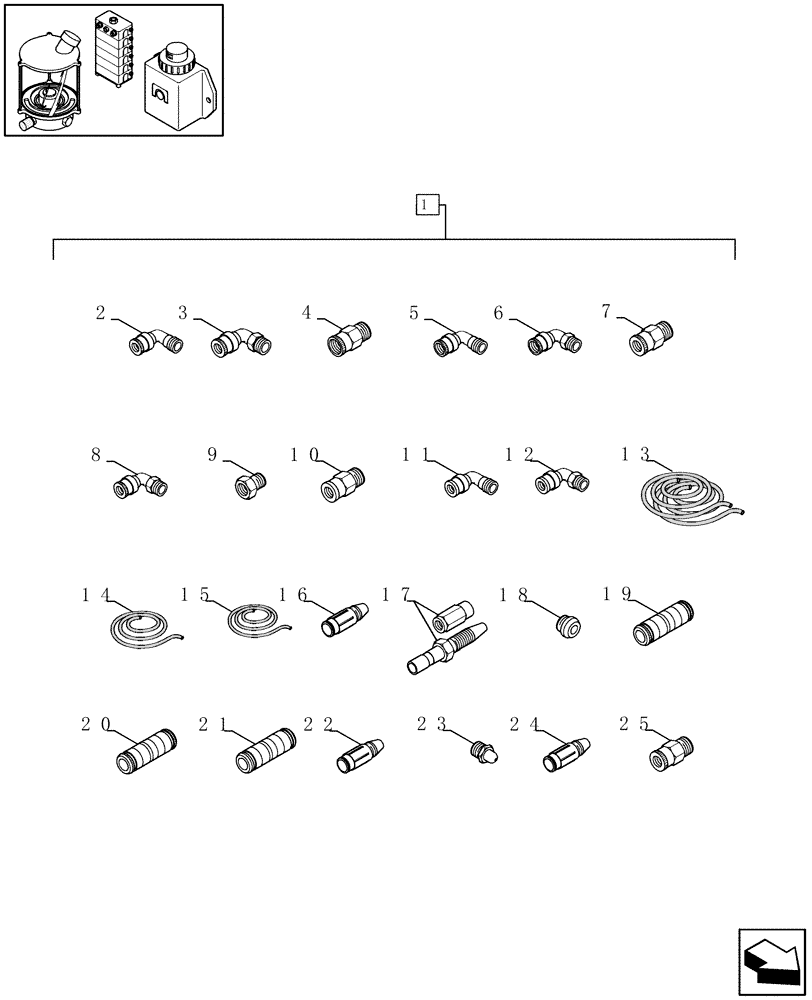

Запчасти Case IH LBX331R (09.03[01]) - KIT, LUBRICATION (09) - LUBRICATION

1

84807302

REPAIR KIT

, Serial Range: (2-25)

1шт.

2

84807241

NIPPLE

1/8" - 6MM

10шт.

3

84807242

NIPPLE

1/8" - 6MM

5шт.

4

84807243

HYD CONNECTOR

1/8" - 4MM

10шт.

5

84807244

HYD CONNECTOR

1/8" - 4MM

5шт.

6

84807245

COUPLING

1/8" - 4MM

5шт.

7

84807246

HYD CONNECTOR

M6 - 6MM

5шт.

8

84807247

COUPLING

M6 - 6MM

5шт.

9

84807248

HYD CONNECTOR

1/8" - 1/8"

2шт.

10

84807375

NIPPLE

1/8" - 8MM

10шт.

11

84807376

NIPPLE

1/8" - 6MM

10шт.

12

84807377

COUPLING

1/8" - 6MM

5шт.

13

84807289

HOSE

8MM, L=10M

1шт.

14

84807290

HOSE,6mm ID x 5000mm L

6MM, L=5M

1шт.

15

84807291

HOSE

4MM, L=5M

1шт.

16

84807292

HYD CONNECTOR

6MM

5шт.

17

84807293

SCREW ON COUPLING

10шт.

TO CONVERT THE 8MM HOSE TO A 6MM CONNECTOR

1шт.

18

84807296

PLUG

1/8"

2шт.

19

84807297

COUPLING

4MM

5шт.

20

84807298

COUPLING

6MM

5шт.

21

84807299

UNION

8MM

5шт.

22

84807301

END FITTING

6MM

5шт.

23

84807304

LUBE NIPPLE

10шт.

24

84807418

CHECK VALVE

4MM

5шт.

25

84807240

NIPPLE

1/8" - 6MM

5шт.
