Запчасти Case IH LB434S XL (35.585.010) - TANDEM AUTO-STEER AXLE (35) - HYDRAULIC SYSTEMS

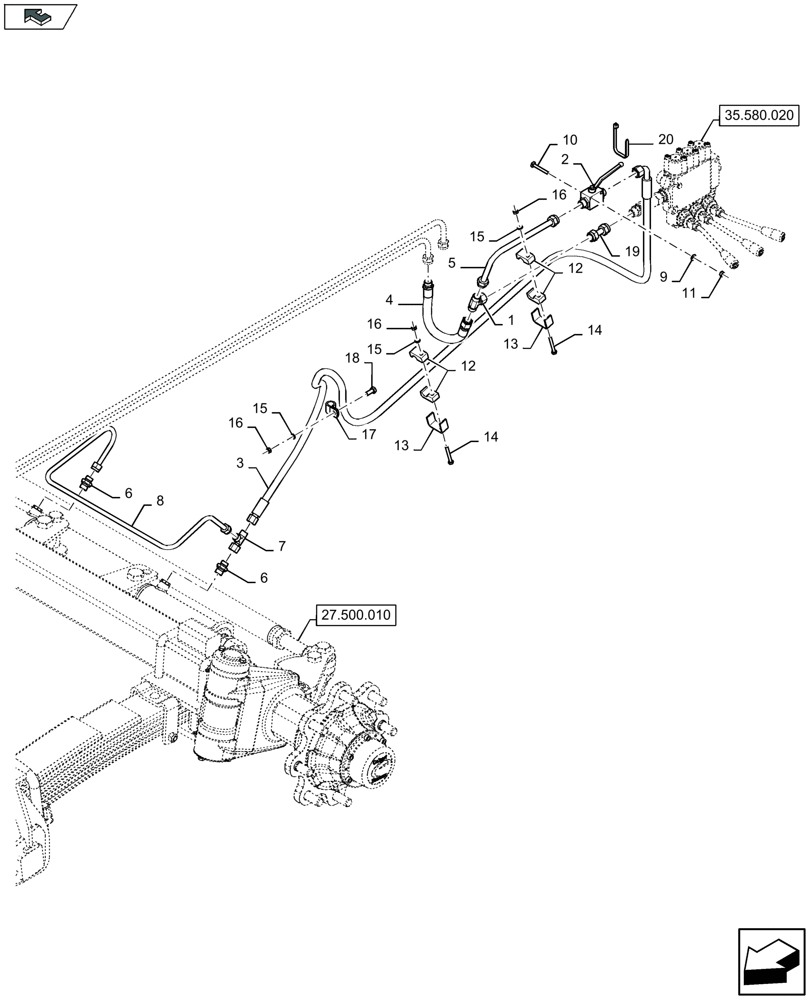

Схема запчастей Case IH LB434S XL - (35.585.010) - TANDEM AUTO-STEER AXLE (35) - HYDRAULIC SYSTEMS
16
12
15
6
13
14
3
18
4
35.580.020
2
9
7
11
16
19
1
6
13
27.500.010
8
10
home
17
15
14
20
5
12
16
15

Артикул

Название

Примечание

Количество

1

84233170

UNION TEE

1шт.

FOR FULL BALE EJECT

1шт.

1

150019

3 WAY CONNECTION

1шт.

FOR STANDARD BALE EJECTION

1шт.

2

84362099

COCK,M18 x 1.5 x M18 x 1.5

1шт.

3

84301650

HOSE,7.92mm ID x 2220mm L, SAE 100R16

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

FOR LB424S, LB424R, LB434S, LB434R ONLY

1шт.

3

47982644

HYDRAULIC HOSE

1шт.

FOR LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

4

84296106

HOSE,9.6mm ID x 275mm L, SAE 100R16

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

FOR LB424S, LB424R, LB434S, LB434R ONLY

1шт.

4

47981702

HYDRAULIC HOSE

1шт.

FOR LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

5

84542429

HYD TUBE

, Serial Range: -C136

1шт.

5

84426811

HYD TUBE

, Start Serial: D137

1шт.

6

9813512

HYD CONNECTOR

, Serial Range: -C089

2шт.

6

2928203

SOCKET

, Start Serial: D090

2шт.

7

734031

HYD CONNECTOR,M16 x 1.5 Male x M16 x 1.5 Male x M16 x 1.5 Female

1шт.

8

84411873

HYD TUBE

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

8

84219006

HYD TUBE

1шт.

FOR LB424S, LB424R, LB434S, LB434R ONLY

1шт.

FOR LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

8

84216732

HYD TUBE

, Start Serial: D085

1шт.

FOR FRANCE ONLY

1шт.

9

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

10

412364

CARRIAGE BOLT,M6 x 1.0 x 56.6mm, Cl 8.8

2шт.

11

9706755

NUT,M6, Cl 8

2шт.

12

433007

CLAMP

4шт.

13

433100

SUPPORT

2шт.

14

412559

BOLT,Hex, M6 x 50mm, Cl 8.8, Full Thd

2шт.

15

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

16

353308

NUT,M6 x 1.0, Cl 8

3шт.

17

431351

CLAMP,15mm ID, 8.5mm Bolt Hole, P Type

1шт.

18

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

, Serial Range: -C023

1шт.

18

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

, Start Serial: D024

1шт.

19

84542427

HYD TUBE

1шт.

FOR STANDARD BALE EJECTION

1шт.

20

368582

STRAP

, Serial Range: -C023

1шт.

20

86566990

CABLE TIE,292mm OAL x 4.8mm W

, Start Serial: D024

1шт.

Выбрано товаров: 42
