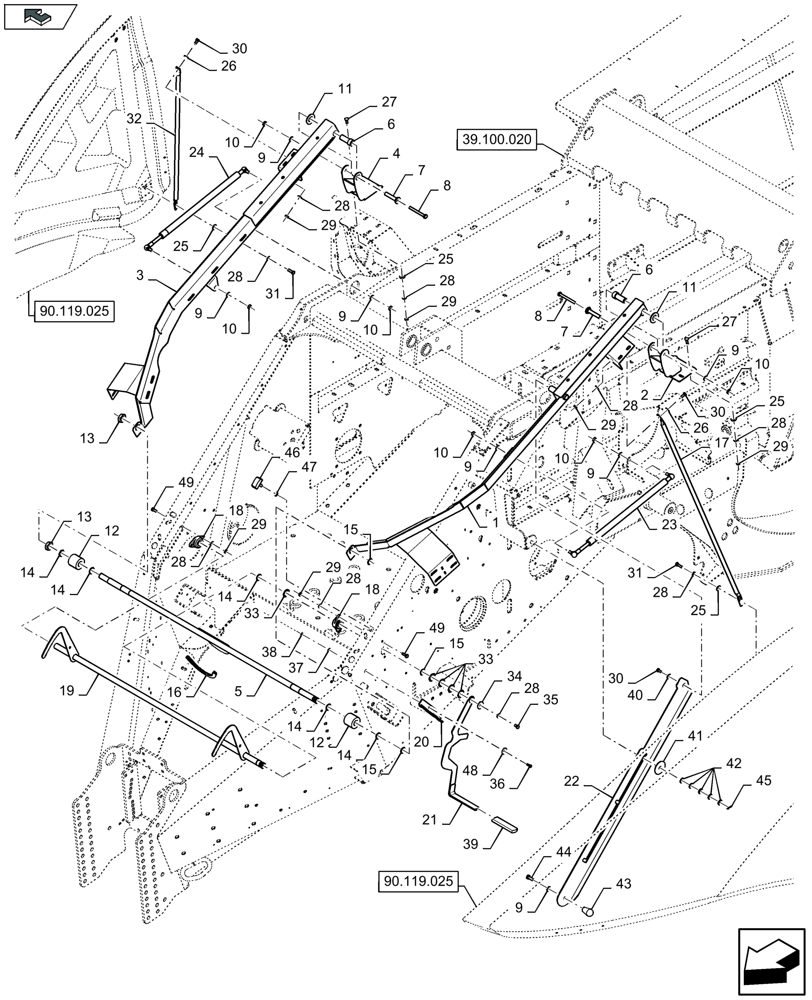

Запчасти Case IH LB434S XL (90.119.015) - PROTECTIONS FLYWHEEL, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

48016846

SUPPORT

1шт.

2

47987423

HINGE

1шт.

3

48016847

SUPPORT

1шт.

4

47987420

HINGE

1шт.

5

47485655

SUPPORT

1шт.

6

47360690

BUSHING,15mm ID x 23mm OD x 71.5mm L

2шт.

7

47360694

BUSHING,10.5mm ID x 30mm OD x 80.9mm L

2шт.

8

120075

BOLT,M10 x 1.5 x 106.58mm, Cl 8.8

2шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

7шт.

10

100016

NUT,M10 x 1.5, Cl 8

6шт.

11

378248

WASHER,25mm ID x 50mm OD x 4mm Thk

2шт.

12

84539323

BUSHING,26mm ID x 55mm OD x 50mm L

2шт.

13

84556531

NUT

2шт.

14

370002

CIRCLIP,M25, External

5шт.

15

11067274

SNAP RING,M24, Ext

3шт.

16

291186

PROTECTION STRIP,9.9mm W

1шт.

17

47994273

TUBE

1шт.

18

9839087

NYLON BEARING,25.5mm ID x 50mm OD x 30mm Thk

2шт.

19

47485664

TUBE

1шт.

20

47360693

ANGLE

1шт.

21

47442631

HANDLE

1шт.

22

48010014

PLATE

1шт.

23

48017624

GAS STRUT

1шт.

24

48017625

GAS STRUT

1шт.

25

12647004

WASHER,8.15mm ID x 25mm OD x 2.5mm Thk

10шт.

26

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

27

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

8шт.

28

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

17шт.

29

9706690

NUT,M8 x 1.25, Cl 8

14шт.

30

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

31

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

32

47994274

TUBE

1шт.

33

140229

WASHER

5шт.

34

12646204

WASHER,8.15mm ID x 35mm OD x 3mm Thk

1шт.

35

86625006

BOLT,Hex, M8 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

36

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

37

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

38

9706755

NUT,M6, Cl 8

2шт.

39

332809

HANDLE GRIP

1шт.

40

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

1шт.

41

84534242

PLATE

1шт.

42

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

5шт.

43

47925976

KNOB

1шт.

44

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

45

130003

COTTER PIN,3mm OD x 30mm OAL

1шт.

46

87541982

INSULATOR BLOCK

2шт.

47

84807411

THIN NUT,Thin, M10 x 1.5, Cl 04

2шт.

48

87542959

WASHER,6.15mm ID x 30mm OD x 1.5mm Thk

2шт.

49

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.
