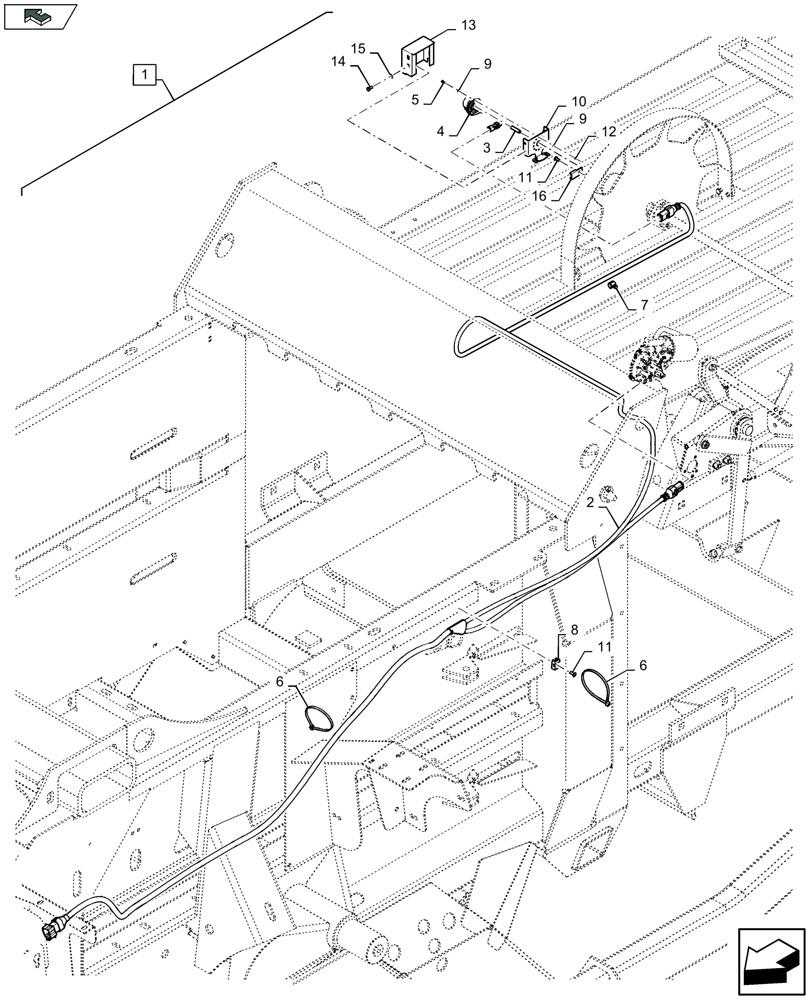

Запчасти Case IH LB434S XL (88.055.037) - DIA KIT: LOGGING ENCODER KIT - D151 (88) - ACCESSORIES

1

47981005

DIA KIT, HARVESTER

Incl 2 - 16

1шт.

2

84273462

WIRE HARNESS

1шт.

3

47649542

CONNECTING ROD

1шт.

4

47665199

SENSOR

1шт.

5

44334

SCREW,Cross Pan Hd, M4 x 12

4шт.

6

86566990

CABLE TIE,292mm OAL x 4.8mm W

9шт.

7

47706277

CLIP,7.5mm, Black

7шт.

8

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

2шт.

9

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

8шт.

10

47388512

SUPPORT

1шт.

11

445394

RIVET,Pop, 3/16" x 1/2" OAL

2шт.

12

100012

NUT,M4 x 0.7, Cl 8

4шт.

13

47388623

COVER

1шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

16

84322203

CLIP

2шт.
