(88.055.035) - DIA KIT: FLYWHEEL HOOD SERVICE LIGHT KIT - LED

Запчасти Case IH LB434S XL (88.055.035) - DIA KIT: FLYWHEEL HOOD SERVICE LIGHT KIT - LED (88) - ACCESSORIES

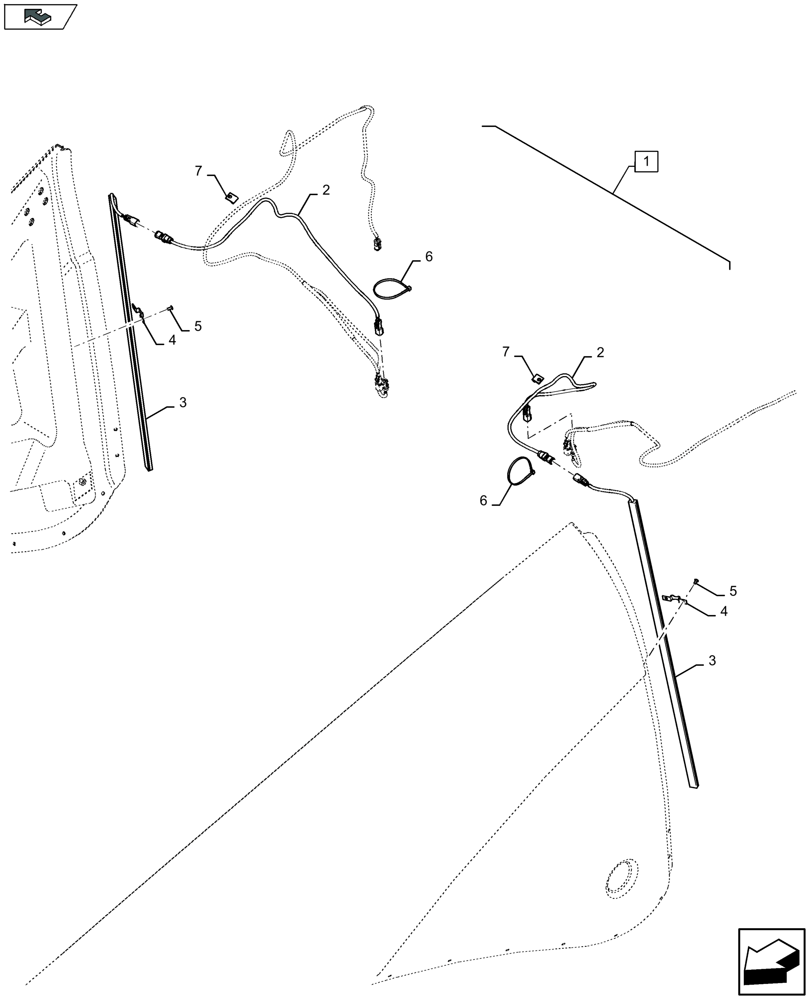

Схема запчастей Case IH LB434S XL - (88.055.035) - DIA KIT: FLYWHEEL HOOD SERVICE LIGHT KIT - LED (88) - ACCESSORIES
5
1
4
7
2
home
3
3
6
5
4
6
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

48043348

DIA KIT, HARVESTER

Incl 2 - 7

1шт.

2

47966374

WIRE HARNESS

2шт.

3

47962364

STRIP

2шт.

4

47533109

SUPPORT

4шт.

5

445394

RIVET,Pop, 3/16" x 1/2" OAL

8шт.

6

86566990

CABLE TIE,292mm OAL x 4.8mm W

10шт.

7

237910

WIRE CLAMP,7.9mm, Coat, 7.1mm Bolt Hole, P Type

2шт.
