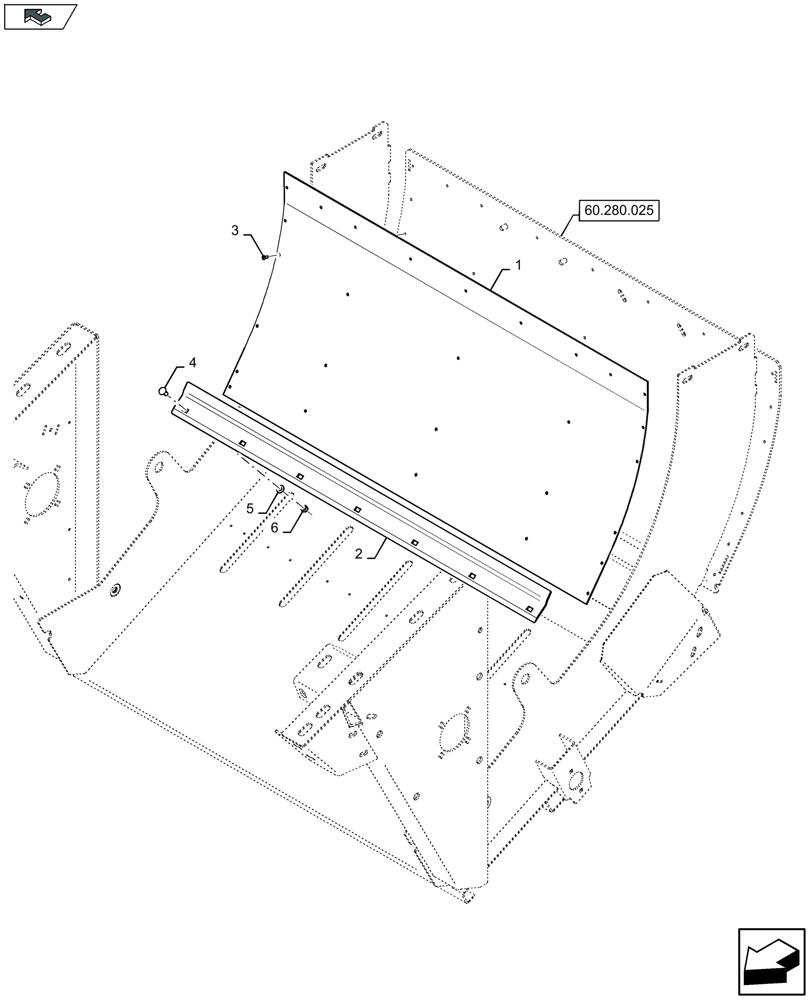

Запчасти Case IH LB434S XL (60.280.145) - BOTTOM FILLER PLATE (60) - PRODUCT FEEDING

1

48042280

PLATE

1шт.

MAINTENANCE PART

1шт.

2

48054038

PLATE

1шт.

3

445394

RIVET,Pop, 3/16" x 1/2" OAL

28шт.

4

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

7шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

7шт.

6

9706690

NUT,M8 x 1.25, Cl 8

7шт.
