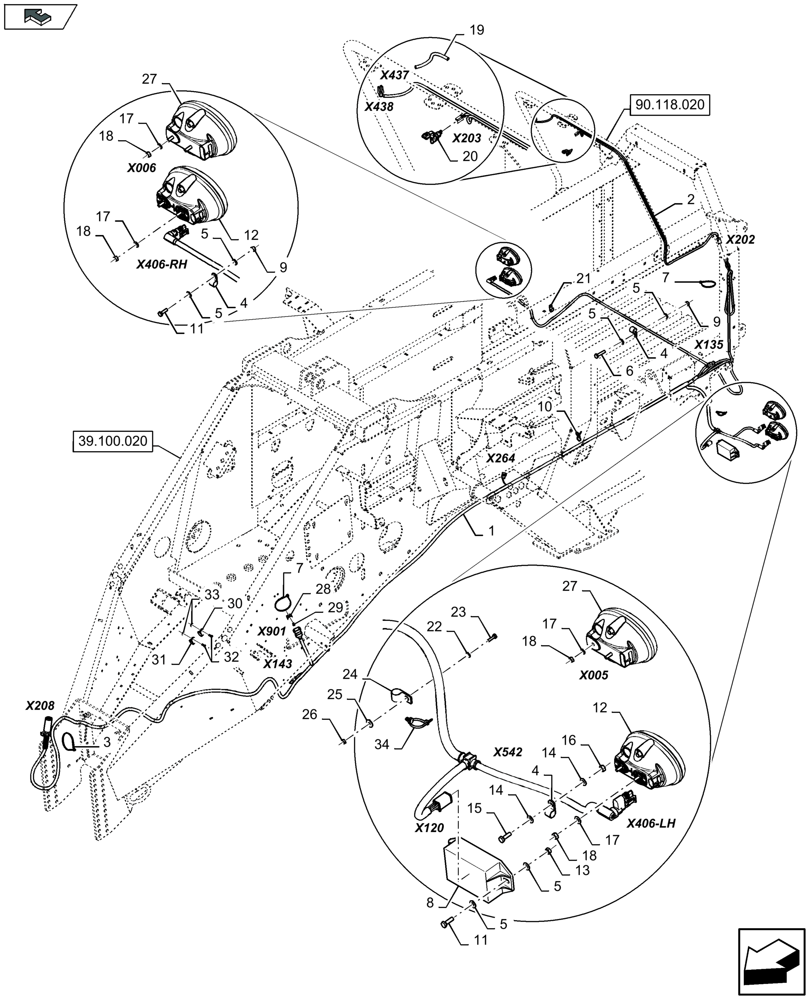

Запчасти Case IH LB434S XL (55.511.031) - ROAD LIGHTS - FOR NA ONLY - D137 (55) - ELECTRICAL SYSTEMS

1

47585889

WIRE HARNESS

1шт.

FOR LB334S, LB334P, LB334R, LB434S, LB434R ONLY

1шт.

1

47966449

WIRE HARNESS

1шт.

FOR LB334S XL, LB334P XL, LB334R XL, LB434S XL, LB434R XL ONLY

1шт.

2

47415539

WIRE HARNESS

1шт.

FOR LB334S, LB334P, LB334R, LB434S, LB434R ONLY

1шт.

2

47966412

WIRE HARNESS

1шт.

FOR LB334S XL, LB334P XL, LB334R XL, LB434S XL, LB434R XL ONLY

1шт.

3

84449335

CABLE TIE,346mm L

3шт.

4

86625035

CLAMP,12.7mm, Coat, 7.1mm Bolt Hole, P Type

1шт.

5

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

16шт.

6

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

3шт.

7

86566990

CABLE TIE,292mm OAL x 4.8mm W

1шт.

8

86561136

MODULE

1шт.

9

9706755

NUT,M6, Cl 8

5шт.

10

82013031

CABLE TIE,193mm L

1шт.

11

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

12

84245246

LIGHT

Rear Oval Tail Light, Stop Light

2шт.

13

412152

NUT,M6 x 1, Cl 8.8

2шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

FOR LB334S, LB334P, LB334R, LB434S, LB434R ONLY

1шт.

14

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

FOR LB334S XL, LB334P XL, LB334R XL, LB434S XL, LB434R XL ONLY

1шт.

15

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

FOR LB334S, LB334P, LB334R, LB434S, LB434R ONLY

1шт.

15

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

FOR LB334S XL, LB334P XL, LB334R XL, LB434S XL, LB434R XL ONLY

1шт.

16

9706690

NUT,M8 x 1.25, Cl 8

1шт.

FOR LB334S, LB334P, LB334R, LB434S, LB434R ONLY

1шт.

16

9706755

NUT,M6, Cl 8

1шт.

FOR LB334S XL, LB334P XL, LB334R XL, LB434S XL, LB434R XL ONLY

1шт.

17

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

8шт.

18

2977215

NUT,M5 x 0.8, Cl 8

8шт.

19

47427651

CONDUIT

L=10cm

2шт.

20

84191453

SOCKET,12/24V, 20A

1шт.

FOR LB334S, LB334P, LB334R, LB434S, LB434R ONLY

1шт.

21

134578

CLAMP,J, 7/16" x 1/2" hole

1шт.

FOR LB334S, LB334P, LB334R, LB434S, LB434R ONLY

1шт.

22

140013

WASHER,M4

1шт.

FOR LB334S, LB334P, LB334R, LB434S, LB434R ONLY

1шт.

23

412064

BOLT,Hex, M4 x 16mm, Cl 8.8, Full Thd

1шт.

FOR LB334S, LB334P, LB334R, LB434S, LB434R ONLY

1шт.

24

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

FOR LB334S, LB334P, LB334R, LB434S, LB434R ONLY

1шт.

25

335872

WASHER,4.1mm ID x 15mm OD x 1.6mm Thk

1шт.

FOR LB334S, LB334P, LB334R, LB434S, LB434R ONLY

1шт.

26

100012

NUT,M4 x 0.7, Cl 8

1шт.

FOR LB334S, LB334P, LB334R, LB434S, LB434R ONLY

1шт.

27

87356311

LAMP,Halogen, 12V, 21W, Amber

2шт.

28

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

1шт.

29

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

30

84818444

CLAMP,22.3mm ID, 6.7mm Bolt Hole, P Type

1шт.

31

84818443

CLAMP,16.3mm ID, 6.7mm Bolt Hole, P Type

5шт.

32

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

6шт.

33

87013357

WASHER,5.5mm ID x 15mm OD x 1.6mm Thk

6шт.

34

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

1шт.

FOR LB334S XL, LB334P XL, LB334R XL, LB434S XL, LB434R XL ONLY

1шт.
