Запчасти Case IH LB434S (90.105.131) - LOWER SHIELDS RH, SINGLE AXLE, AXLE SPACER 50 MM - D072 (90) - PLATFORM, CAB, BODYWORK AND DECALS

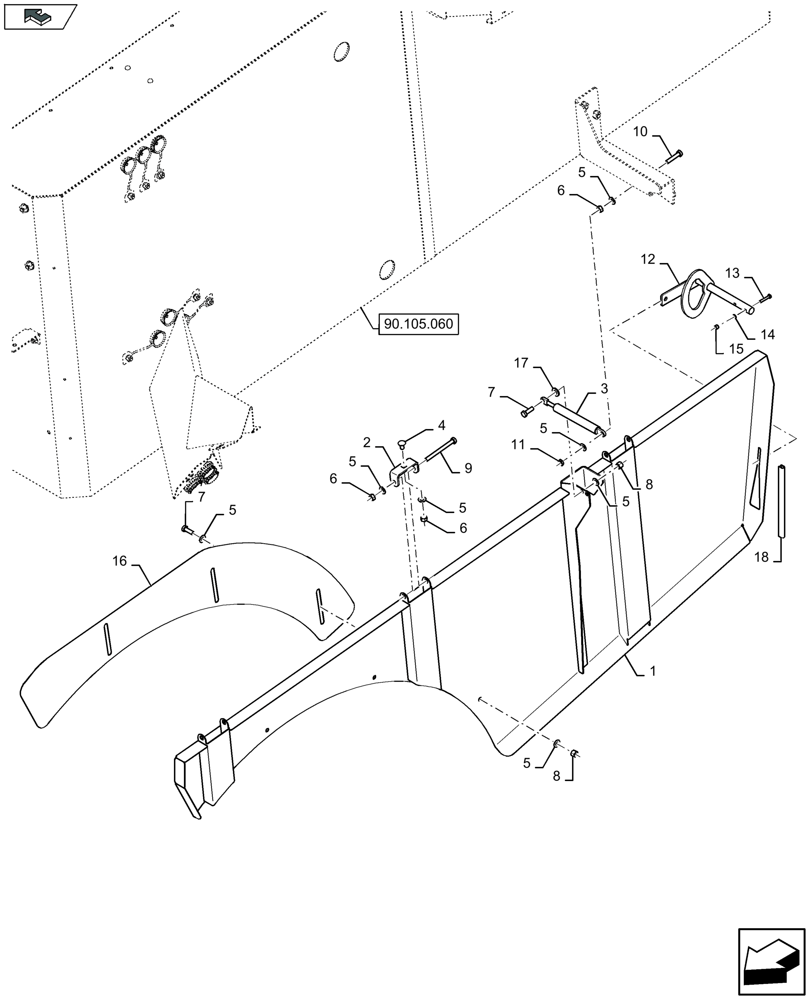

Схема запчастей Case IH LB434S - (90.105.131) - LOWER SHIELDS RH, SINGLE AXLE, AXLE SPACER 50 MM - D072 (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.105.060
2
1
13
7
7
6
8
12
5
5
8
6
14
5
10
5
5
5
3
home
9
17
16
18
11
4
6
5
15

Артикул

Название

Примечание

Количество

1

47392736

PLATE

, Serial Range: -C144

1шт.

FOR LB324S, LB324P, LB334S, LB334P, LB424S, LB434S ONLY

1шт.

1

47910431

DOOR

, Start Serial: D145

1шт.

FOR LB324S, LB324P, LB334S, LB334P, LB424S, LB434S ONLY

1шт.

1

47444157

DOOR

, Serial Range: -C144

1шт.

FOR LB324R, LB334R, LB424R, LB434R ONLY

1шт.

1

47910431

DOOR

, Start Serial: D145

1шт.

FOR LB324R, LB334R, LB424R, LB434R ONLY

1шт.

2

47426051

PLATE

3шт.

3

84434897

GAS STRUT,285.5mm Extended, 185.5mm Compressed

1шт.

4

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

3шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

6

9706690

NUT,M8 x 1.25, Cl 8

7шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

8

393393

NUT

, Serial Range: -C121

1шт.

8

412250

NUT,M8 x 1.25, Cl 8

, Start Serial: D122

1шт.

9

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

3шт.

10

120106

BOLT,M8 x 1.25 x 45.45mm, Cl 8.8

1шт.

11

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

1шт.

12

47406882

HANDLE

, Serial Range: -C144

1шт.

12

47910445

HANDLE

, Start Serial: D145

1шт.

13

86508566

BOLT,Hex, M5 x 30mm, Cl 8.8

2шт.

14

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

15

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

16

47426055

PLATE

, Serial Range: -C144

1шт.

FOR LB324R, LB334R, LB424R, LB434R ONLY

1шт.

16

47910443

PLATE

, Start Serial: D145

1шт.

FOR LB324R, LB334R, LB424R, LB434R ONLY

1шт.

16

47910443

PLATE

, Start Serial: D145

1шт.

FOR LB324S, LB324P, LB334S, LB334P, LB424S, LB434S ONLY

1шт.

17

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

1шт.

18

291186

PROTECTION STRIP,9.9mm W

L= 0.2M, Start Serial: D145

1шт.

Выбрано товаров: 32
