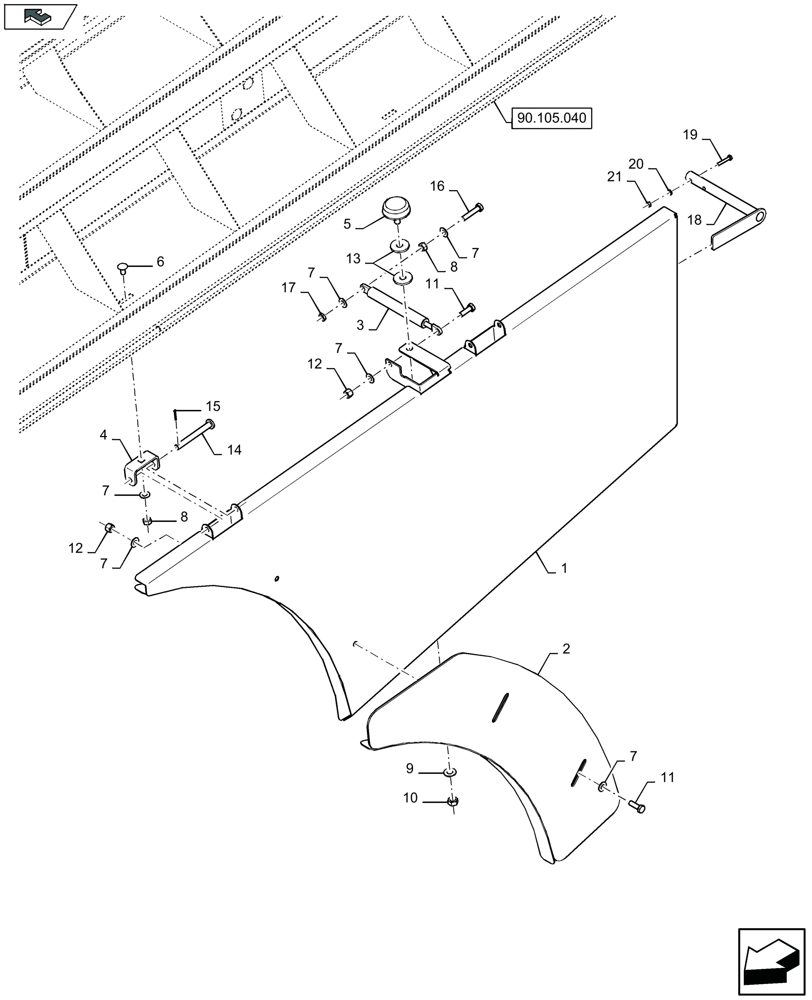

Запчасти Case IH LB434S (90.105.080) - LOWER SHIELDS LH, SINGLE AXLE, AXLE SPACER 0 MM - C071 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84588508

DOOR

1шт.

FOR LB324S LB324P LB334S LB334P LB424S LB434S ONLY

1шт.

1

84519912

DOOR

1шт.

FOR LB324R LB334R LB424R LB434R ONLY

1шт.

2

84588524

DOOR

1шт.

FOR LB324S LB324P LB334S LB334P LB424S LB434S ONLY

1шт.

3

84434897

GAS STRUT,285.5mm Extended, 185.5mm Compressed

1шт.

4

84545425

MOUNTING PLATE

1шт.

5

190029

STOP,M10 x 1.0 x 20mm OD, Rubber

1шт.

6

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

8

9706690

NUT,M8 x 1.25, Cl 8

1шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

10

86500689

NUT,M10 x 1.5, Cl 10

1шт.

11

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

12

393393

NUT

1шт.

13

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

2шт.

14

86599794

CLEVIS PIN,10mm OD x 85mm L

1шт.

15

9512667

COTTER PIN,M2 x 20mm OAL

1шт.

16

120106

BOLT,M8 x 1.25 x 45.45mm, Cl 8.8

1шт.

17

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

1шт.

18

84564330

HANDLE

,, Serial Range: -C027

1шт.

18

47406882

HANDLE

,, Start Serial: D028

1шт.

19

86508566

BOLT,Hex, M5 x 30mm, Cl 8.8

2шт.

20

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

21

86508813

NUT,M5, Cl 8

2шт.
