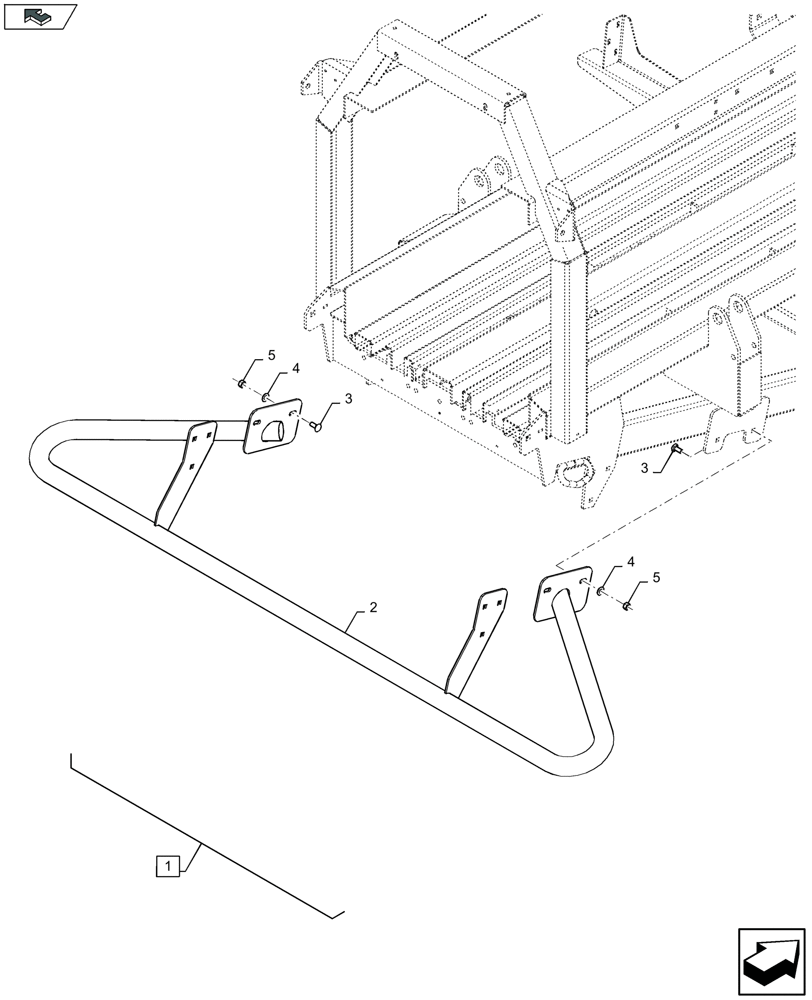

Запчасти Case IH LB434S (88.090.002[01]) - DIA KIT: BUMPER - C091 (88) - ACCESSORIES

1

84263302

DIA KIT, HARVESTER

Incl 2 - 5

1шт.

2

84345208

BRACKET

1шт.

3

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

4

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

5

9706685

NUT,M12 x 1.75, Cl 8

4шт.
