Запчасти Case IH LB434S (71.460.070) - CENTRAL GREASING, PACKER (71) - LUBRICATION SYSTEM

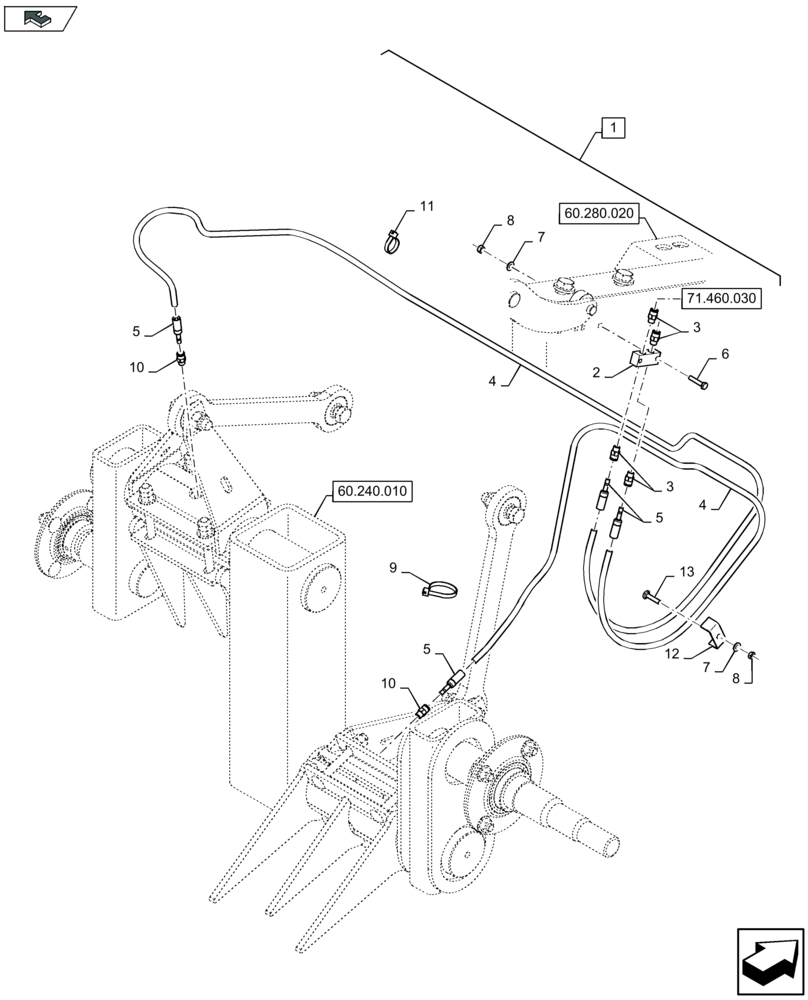

Схема запчастей Case IH LB434S - (71.460.070) - CENTRAL GREASING, PACKER (71) - LUBRICATION SYSTEM
3
12
60.240.010
60.280.020
11
6
4
8
9
7
3
8
7
2
10
5
71.460.030
13
1
5
10
5
home
4

Артикул

Название

Примечание

Количество

1

84341268

NIPPLE

Incl 2 - 5

1шт.

FOR LB324S, LB334S, LB324S XL, LB334S XL ONLY

1шт.

1

84341267

NIPPLE

Incl 2 - 5

1шт.

FOR LB424S, LB434S, LB424S XL, LB434S XL ONLY

1шт.

2

84379935

NIPPLE

4/4

1шт.

FOR LB324S, LB334S, LB324S XL, LB334S XL ONLY

1шт.

2

84379936

BLOCK

6/6

1шт.

FOR LB424S, LB434S, LB424S XL, LB434S XL ONLY

1шт.

3

84807375

NIPPLE

4шт.

FOR LB324S, LB334S, LB324S XL, LB334S XL ONLY

1шт.

3

84807375

NIPPLE

6шт.

FOR LB424S, LB434S, LB424S XL, LB434S XL ONLY

1шт.

4

84379944

HOSE

L=5.79M

1шт.

5

84388052

SCREW ON COUPLING

4шт.

FOR LB324S, LB334S, LB324S XL, LB334S XL ONLY

1шт.

5

84388052

SCREW ON COUPLING

6шт.

FOR LB424S, LB434S, LB424S XL, LB434S XL ONLY

1шт.

6

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

, Serial Range: -C084

2шт.

6

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

, Start Serial: D085

2шт.

7

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

8

9706755

NUT,M6, Cl 8

, Serial Range: -C084

4шт.

8

412152

NUT,M6 x 1, Cl 8.8

, Start Serial: D085

4шт.

9

84449335

CABLE TIE,346mm L

1шт.

10

84807375

NIPPLE

2шт.

FOR LB324S, LB334S, LB324S XL, LB334S XL ONLY

1шт.

10

84807375

NIPPLE

3шт.

FOR LB424S, LB434S, LB424S XL, LB434S XL ONLY

1шт.

11

86566990

CABLE TIE,292mm OAL x 4.8mm W

10шт.

12

431941

SUPPORT

2шт.

13

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

2шт.
