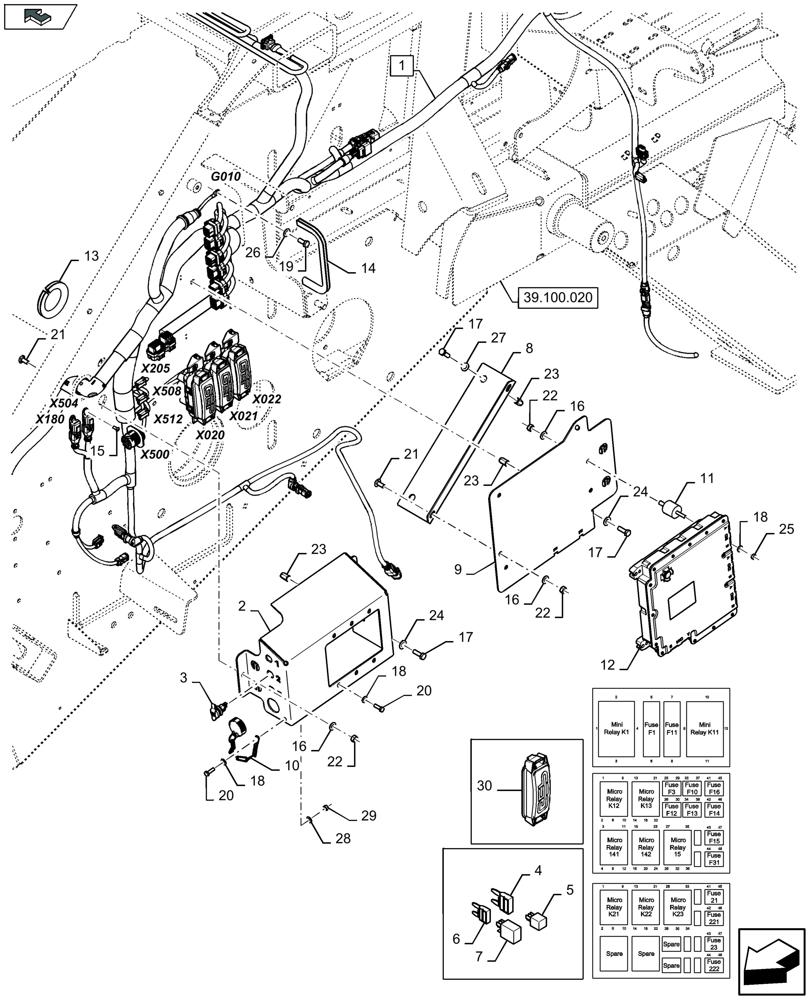

Запчасти Case IH LB434S (55.640.011) - BALE CONTROLE MODULE AND FUSES - D137 (55) - ELECTRICAL SYSTEMS

1

47554088

WIRE HARNESS

Incl 2 - 7, Serial Range: -C150

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

FOR LB424S, LB424R, LB434S, LB434R ONLY

1шт.

1

47972521

WIRE HARNESS

Incl 2 - 7, Start Serial: D151

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

FOR LB424S, LB424R, LB434S, LB434R ONLY

1шт.

1

47966442

WIRE HARNESS

Incl 2 - 7

1шт.

FOR LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

2

47695386

PLATE

1шт.

3

84191453

SOCKET,12/24V, 20A

3шт.

4

84279530

FUSE,50A, Maxival, Red

1шт.

4

82012388

FUSE,30A, Maxival, Green

1шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R ONLY

1шт.

4

84157159

FUSE,40A, Maxi, Orange

1шт.

FOR LB424S, LB424R, LB434S, LB434R ONLY

1шт.

FOR LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

5

84539290

RELAY,12V, 50A

1шт.

6

84127702

FUSE,10A, Mini, Red

1шт.

6

84127703

FUSE,15A, Mini, Blue

1шт.

6

84127704

FUSE,20A, Mini, Yellow

1шт.

6

84152583

FUSE,7.5A, Mini, Brown

1шт.

6

84153830

FUSE,5A, Mini, Beige

1шт.

6

84320044

FUSE,5 Amp

Tan

1шт.

7

87655334

RELAY,12V, 35A, Micro

1шт.

8

47695689

PLATE

1шт.

9

47695382

PLATE

1шт.

10

47448624

COVER ASSY

1шт.

11

47604670

DAMPER

4шт.

12

47385274

MODULE

1шт.

13

291186

PROTECTION STRIP,9.9mm W

L = 0.25m

1шт.

14

401310

PROFILE

L = 0.29m

1шт.

15

445394

RIVET,Pop, 3/16" x 1/2" OAL

2шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

17

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

18

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

11шт.

19

120100

BOLT,M6 x 20mm, Cl 8.8

, Serial Range: -C137

1шт.

19

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

, Start Serial: D138

1шт.

20

120100

BOLT,M6 x 20mm, Cl 8.8

7шт.

21

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

22

9706690

NUT,M8 x 1.25, Cl 8

8шт.

23

87556072

NUT,Flng, 11.8mm OD x 19.8mm L

4шт.

24

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

25

9706755

NUT,M6, Cl 8

4шт.

26

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

, Serial Range: -C137

1шт.

26

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

, Start Serial: D138

1шт.

27

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

, Serial Range: -C144

2шт.

27

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

, Serial Range: -F145150

2шт.

27

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

, Start Serial: D151

2шт.

28

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

, Serial Range: -C150

1шт.

29

9706755

NUT,M6, Cl 8

, Serial Range: -C150

1шт.

30

84404932

COVER

1шт.
