Запчасти Case IH LB434S (55.511.050) - TWINE BOX LIGHTS - D085 (55) - ELECTRICAL SYSTEMS

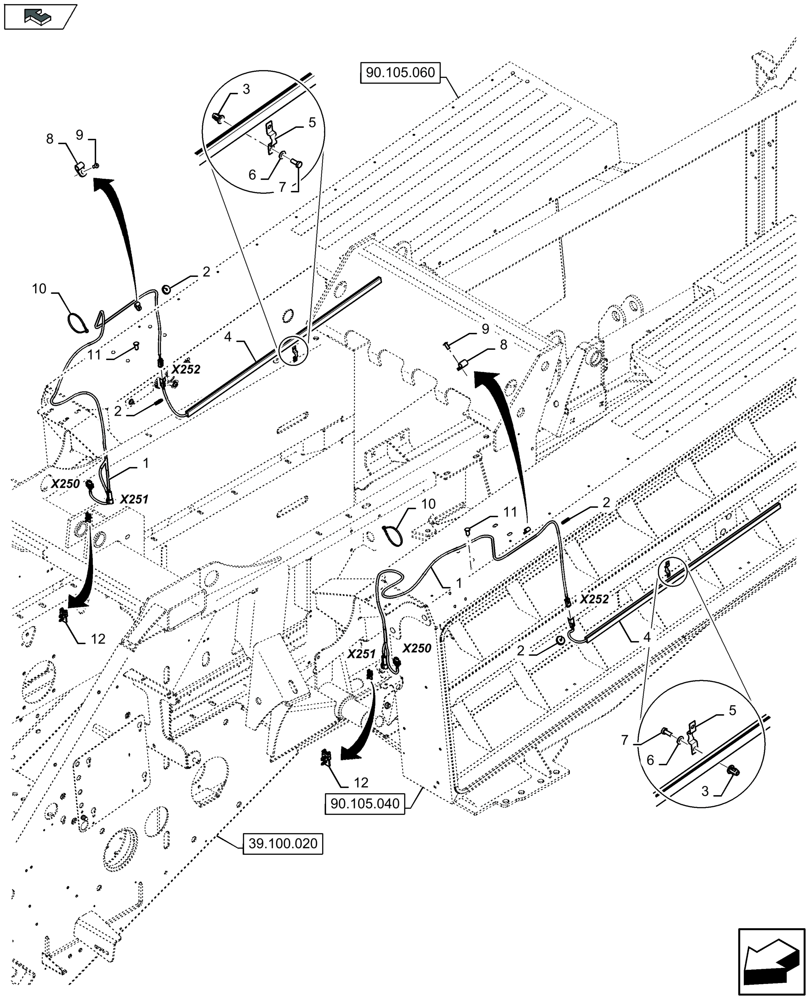

Схема запчастей Case IH LB434S - (55.511.050) - TWINE BOX LIGHTS - D085 (55) - ELECTRICAL SYSTEMS
90.105.040
5
x252
10
8
11
3
6
8
2
x252
9
3
10
2
11
5
1
4
9
2
12
2
12
1
6
x251
7
x250
4
x250
x251
7
39.100.020
90.105.060

Артикул

Название

Примечание

Количество

1

47531406

WIRE HARNESS

2шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R, LB424S, LB424R, LB434S, LB434R ONLY

1шт.

1

47966366

WIRE HARNESS

2шт.

FOR LB324S XL, LB324P XL, LB324R XL, LB334S XL, LB334P XL, LB334R XL, LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

2

87530614

GROMMET

4шт.

3

47533286

NUT

12шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R, LB424S, LB424R, LB434S, LB434R ONLY

1шт.

4

47506757

COURTESY LIGHT

2шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R, LB424S, LB424R, LB434S, LB434R ONLY

1шт.

4

47506757

COURTESY LIGHT

, Serial Range: -C174

2шт.

FOR LB324S XL, LB324P XL, LB324R XL, LB334S XL, LB334P XL, LB334R XL, LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

4

47608249

STRIP

, Start Serial: D175

2шт.

FOR LB324S XL, LB324P XL, LB324R XL, LB334S XL, LB334P XL, LB334R XL, LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

5

47533109

SUPPORT

1шт.

6

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

12шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R, LB424S, LB424R, LB434S, LB434R ONLY

1шт.

7

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

12шт.

FOR LB324S, LB324P, LB324R, LB334S, LB334P, LB334R, LB424S, LB424R, LB434S, LB434R ONLY

1шт.

7

445394

RIVET,Pop, 3/16" x 1/2" OAL

8шт.

FOR LB324S XL, LB324P XL, LB324R XL, LB334S XL, LB334P XL, LB334R XL, LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

8

9507807

CLAMP,8.3mm ID, 6.7mm Bolt Hole, P Type

8шт.

9

445394

RIVET,Pop, 3/16" x 1/2" OAL

8шт.

10

86566990

CABLE TIE,292mm OAL x 4.8mm W

8шт.

11

84280063

HALF-HINGE

4шт.

12

84322203

CLIP

2шт.

FOR LB324S XL, LB324P XL, LB324R XL, LB334S XL, LB334P XL, LB334R XL, LB424S XL, LB424R XL, LB434S XL, LB434R XL ONLY

1шт.

Выбрано товаров: 26
